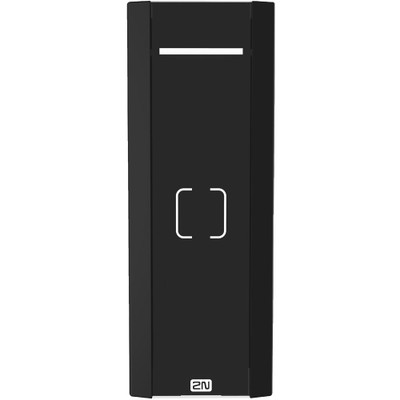

2N Access Unit M RFID 13.56 MHz - 02909-001

2N Access Unit M is a slim access control reader for security door entry control in tricky locations like door frames. This model of 2N Access Unit M supports contactless entry via 13.56 MHz RFID cards and keyfobs, including Secured RFID options. It also supports NFC technology, offering another option for contactless entry.

Suitable for indoor or outdoor locations, the access control reader is simple to install. It has an in-built controller. It also has a nearly 10-foot Ethernet pigtail, which is easy to connect to the IP infrastructure. Power 2N Access Unit M via PoE (Power Over Ethernet), further simplifying installation. And it's rugged, too, meeting the IP55 and IK07 durability standards.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

2N 02909-001 Quick Specs:

• RFID: 13.56 MHz
• Cable Connections:
• Ethernet: 10/100 RJ45 PoE Male (9.84 ft)
• Relay: for connection of non-critical devices only (1.15 ft)
• Input 1/2: for departure button, open door sensor, ESS etc. connection (1.15 ft)
• External Power: for 12 V / 1 A external power supply (1.15 ft)
• Active Output: for the connection of the Security Relay or an electric lock (1.15 ft)
• PoE (Power Over Ethernet): 802.3af Class 0 (12.95 W)
• Audio: 1 W for buzzer
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP55, IK07

2N Access Unit M RFID 13.56 MHz Package Contents:

• Access Unit M
• Certificate of Ownership
• Quick Start Manual
• Metal Wall Holder (screwed to device)
• 2x 8 x 40 mm Dowels
• 2x 4.5 x 40 mm Flat-Head Screws with Washers
• M 3 x 8 mm Stainless Steel Lens Head Screw
• T10 and T20 Dual Torx Key
• 2x External Power and ALARM2 Button Terminals

2N Access Unit M Documentation:

• 2N Access Unit M Datasheet
