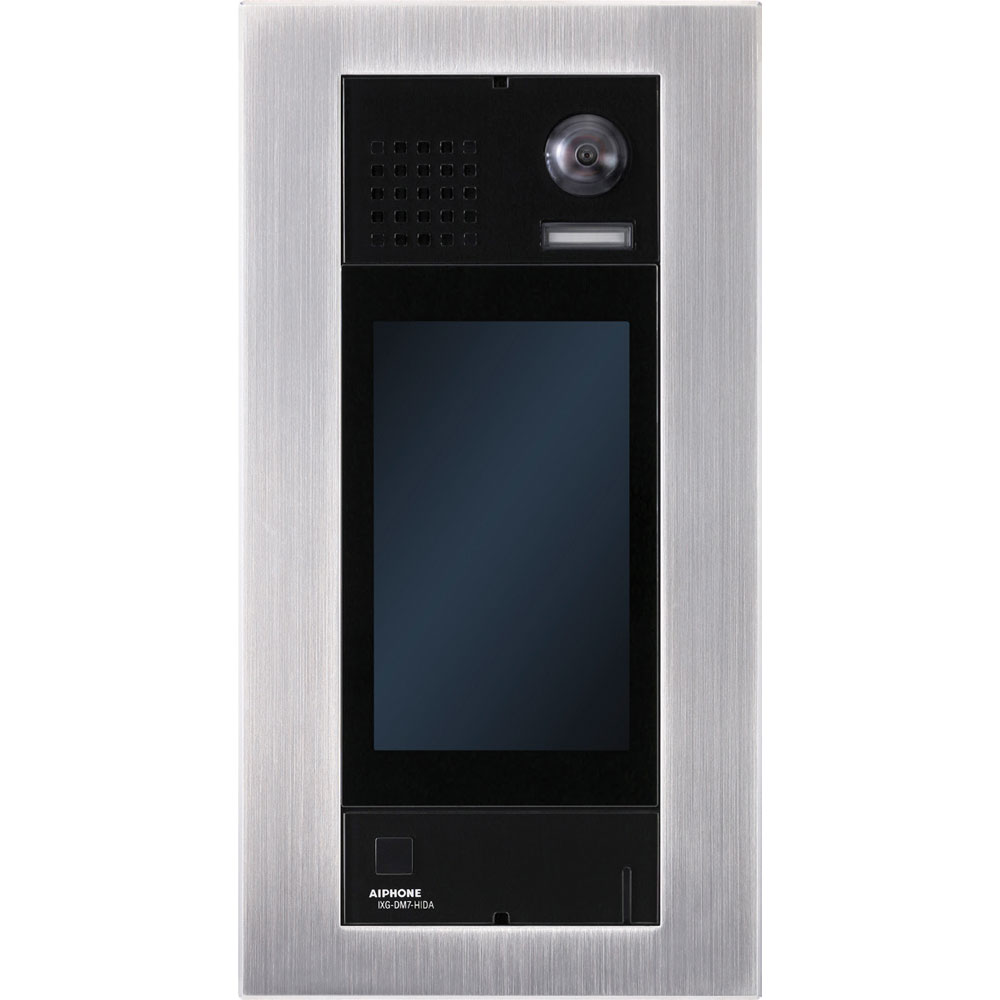

Aiphone IXG-DM7-HIDA IP Video Entrance Station

Aiphone IXG-DM7-HIDA is an IP video entrance station with 7-inch touchscreen display, integrated HID card reader, HD video camera, and more. As a video intercom, IXG-DM7-HIDA provides a simple, secure solution for access control. The large touchscreen display makes it familiar and simple to use for everyone, like entering access entry codes and more. Visitors are shown via the 720p HD camera. It enables fast, contactless entry via a large selection of 13.56 MHz and 125 kHz HID (RFID) cards. The display automatically activates when someone approaches it because it has an integrated motion sensor.

IXG-DM7-HIDA is a first-class video intercom. Store up to 9,999 contacts (names or numbers) locally in the station. Record calls in the station via a microSD card. IXG-DM7-HIDA is built to last. It has a stainless steel panel, has an extended operating temperature range, and meets the IP65 and IK08 ratings. For protection, it has an integrated tamper sensor. Connect it to the IP network via a standard Ethernet cable and power it via PoE.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Aiphone IXG-DM7-HIDA Quick Specs:

• Display: 7 in (800 x 400 px) touchscreen
• Camera: 720p HD (1.23 MP)
• On-Board Recording: microSD
• HID Reader:
• 13.56 MHz: HID iClass, SEOS, HID iClass SR, HID iClass SE
• 125 kHz: HID Proximity, Indala Proximity
• Ethernet Port: 1x RJ45
• PoE (Power Over Ethernet): 802.3af Class 0
• Relay Outputs:
• Output 1: Form C, 24V AC/DC, 3A
• Output 2: Form C, 24V AC/DC, 0.5A
• Durability Ratings: IP65, IK08

Aiphone IXG-DM7-HIDA IP Video Entrance Station Package Contents:

• Entrance Station
• Option Connectors
• Mounting Bracket
• 4x Mounting Bracket Screws
• Special Screwdriver
• Installation Manual
• Notice
• Contact Us

Aiphone IXG-DM7-HIDA Documentation:

• Aiphone IXG-DM7-HIDA Specification
