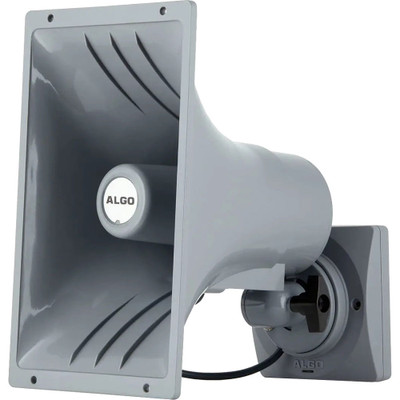

Algo 8196 PoE+ IP Horn Speaker

No reviews yet Write a Review
Usually Ships Same Business Day
Calculated at Checkout
1 Year

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

Algo 8196 PoE+ IP Horn Speaker


Algo 8196 is a network connected speaker horn for directed paging in large spaces — indoors or outdoors. 8196 supports the open SIP protocol and multicast with almost limitless zoning options — interoperable and incredibly flexible. The speaker horn is designed to broadcast loud, clear audio with optimized sound dispersion — professional audio quality. To ensure broadcasts are always hear, the speaker supports ambient noise responsiveness — quiet or loud as circumstances dictate. And it's a talkback capable speaker — two way audio if you want it.

Algo 8196 is a rugged paging speaker — IP66 rated with an extended operating temperature range. If you need extra coverage, it supports up to 3 additional Algo 1196 Satellite Speakers (not included), which offer identical performance to the 8196. The satellite speakers connect to the network and receive power through the 8196.

Algo 8196 Quick Specs:

  • Communications Protocol: SIP
  • Audio Output Power: up to 16 W
  • Dispersion Angle: 80° H x 50° V
  • Physical Connectors:
    • 1x RJ45 Ethernet PoE+ input
    • 1x RJ45 satellite speaker output
    • I/O terminal block
  • PoE+: 48 V 802.3 af/at
  • Durability Ratings: IP66
  • Operating Temperature: -40°F to 122°F
  • Dimensions:
    • Height: 11 in
    • Width: 6.6 in
    • Depth: 10.5 in
  • Weight: 6 lb

Algo 8196 IP Horn Speaker Package Contents:

  • 8196 Speaker
  • Mounting Bracket
  • Gaskets
  • Flathead Screwdriver
  • Terminal Block for Relay I/O
  • Getting Started Sheet

Algo 8196 Documentation:
