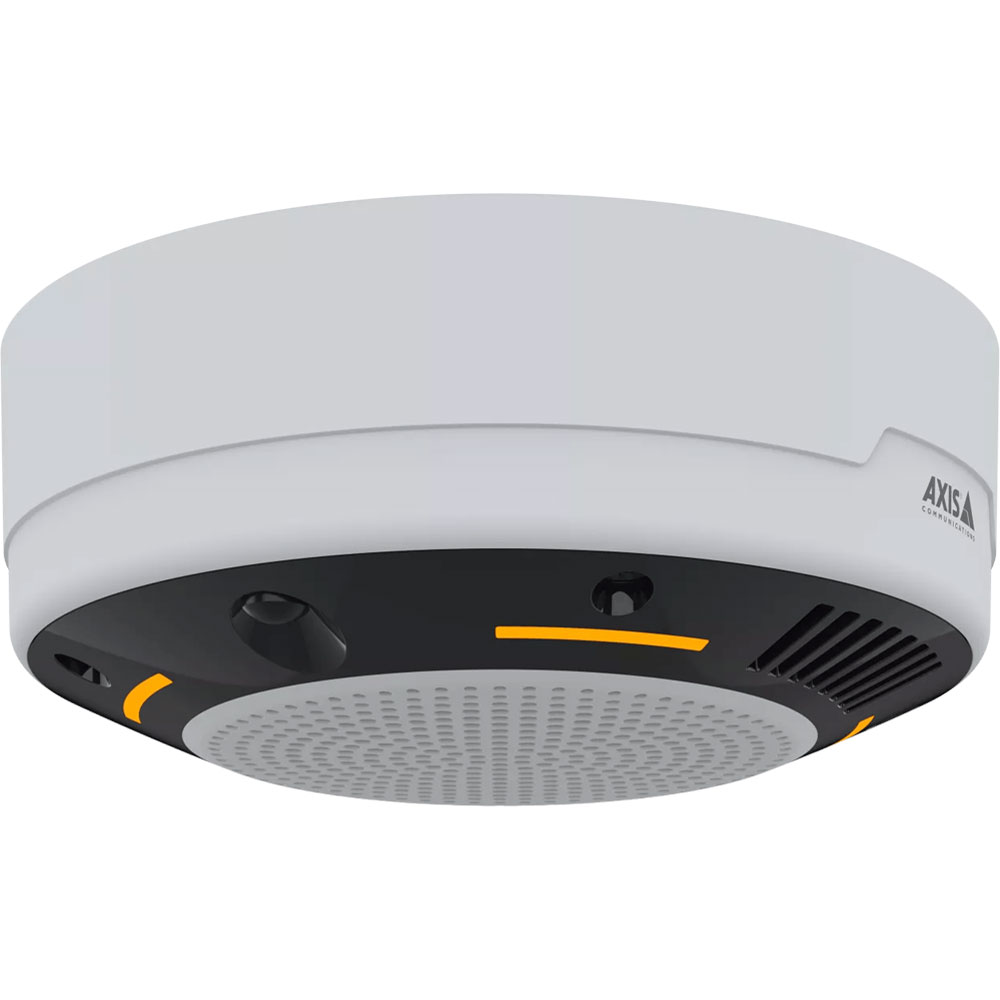

Axis D6310 Air Quality Sensor - 03202-001

Axis D6310 is an advanced air quality sensor for indoor environmental monitoring and automatic alerts. D6310 detects numerous forms of air pollutants, including particulate matter (PM) and carbon dioxide (CO₂). It provides reading for the volatile organic compounds (VOC) index, air quality index (AQI), and nitric oxide/nitrogen dioxide (NO_x) index. It detects cigarette and vape smoke. It also measures temperature and humidity. It is an all-in-one, standalone solution for measuring indoor air quality.

D6310 is a network-connected sensor, which is simple to integrate into your Axis system. It comes with Axis Audio Analytics installed, which provides AI-based actionable insights and long-term strategic decisions based on the sensor's accurate measurements. D6310 is also compatible with Axis Audio Manager for zone management, scheduling, and more. The sensor also works with numerous third-party systems. By being network-connected, it can provide real-time measurements with extensive visualization options, letting you act quickly.

D6310 also has a built-in speaker and four multi-color LED lights, which can provide auditory and visual alerts, protecting everyone. It even has a microphone to pick up critical sounds like breaking glass or shouts and for two-way communication. (The mic can be disabled for privacy.) Power D6310 via PoE. The sensor has two Ethernet ports for connecting an additional device and supports PoE pass-through. D6310 is vandal-resistant, meeting the IK08 durability standard. It is intended for indoor installation only.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D6310 Quick Specs:

• Sensors:
• Temperature: 14°F to 113°F
• Humidity: 0 to 100 %RH
• CO₂: 0 to 40,000 ppm
• PM1.0: 0 to 1,000 µg/m³
• PM2.5: 0 to 1,000 µg/m³
• PM4.0: 0 to 1,000 µg/m³
• PM10.0: 0 to 1,000 µg/m³
• VOC Index: 0 to 500
• AQI: 0 to 500
• NO_x Index: 0 to 500
• Sampling Frequency: 1 sample/sec (all sensors)
• SoC (System on Chip): S6L
• Video Resolution: up to 1280 x 720 px @ 30 fps
• Speaker: 1.8 in dynamic cone speaker in sealed enclosure
• Amplifier: built-in 4 W Class D
• Microphone: built-in (can be disabled)
• Audio Streaming: configurable duplex
• Physical Connectors:
• I/O: 4-pin 2.5 mm terminal block
• Ethernet: 2x Gigabit RJ45 PoE
• Serial Communication: RS485/RS422, 1 pcs, 4 pos, full duplex, terminal block
• PoE (Power Over Ethernet): 802.3af/at Type 1 Class 3 or 802.3at Type 2 Class 4
• PIR (Passive Infrared) Sensor Range: up to 16.4 ft (5 m)
• Durability Rating: IK08
• Operating Temperature Range: 14°F to 113°F

Axis D6310 Air Quality Sensor Package Contents:

• Air Quality Sensor
• Installation Guide
• Terminal Block Connectors
• Owner Authentication Key

Axis D6310 Documentation:

• Axis D6310 Datasheet
• Axis D6310 Installation Guide
