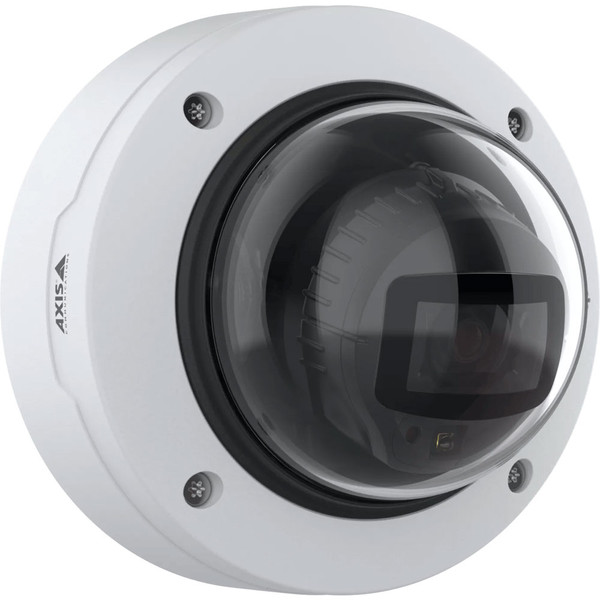

Axis P3285-LV 1080p Indoor Dome IP Camera with Audio Analytics - 02980-001

Axis P3285-LV brings AI-powered features to a compact IP security camera. Designed for indoor installation, P3285-LV is a 1080p Full HD (2 MP) camera with integrated Audio Analytics functionality. The camera has a built-in acoustic sensor for monitoring the surrounding environs. When the sensor picks up an important event like breaking glass or a scream, Audio Analytics interprets the sound and notifies you. In other words, P3285-LV adds a second layer of security on top of its professional optics. Speaking of which, P3285-LV has a wide-angle varifocal lens, suitable for general surveillance indoors. Backing up its excellent video detail are several Axis image enhancing technologies, including Lightfinder 2.0 and Forensic WDR. For surveillance in complete darkness, the camera has built-in Optimized IR infrared lights with 130-foot range.

P3285-LV uses an ARTPEC-9 System on a Chip (SoC) to drive its processes. This purpose-built SoC enables advanced features, including many analytics applications that come with the camera: Object Analytics, Image Health Analytics, Scene Metadata, Live Privacy Shield, and Video Motion Detection. If you want to expand its functionality, the camera also supports Perimeter Defender and License Plate Verifier (not included). ARTPEC-9 also enables ultra-efficient video compression via AV1 and H.265 (HEVC), which greatly reduces file size to save you on bandwidth and storage requirements. Store video in camera using a microSD card and through the network via an NVR or NAS. The camera is protected by Edge Vault, a hardware-based cybersecurity platform that protects the device, and FIPS 140-3 Level 3 certified secure cryptographic key storage. A professional surveillance camera needs professional-grade security. P3285-LV meets the IP54 and IK10 durability standards.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis P3285-LV Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/2.8-in progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 x 1080 px)
• Frame Rate: up to 60 fps
• Video Compression: AV1; H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 3.4-9.8 mm, f/1.4-2.7
• Field of View:
• Horizontal: 100° to 32°
• Vertical: 52° to 18°
• Camera Adjustment:
• Pan: ±190°
• Tilt: -50° to +80°
• Rotation: ±95°
• Minimum Illumination:
• Color: 0.08 lux
• B/W: 0.02 lux
• Infrared: 0 lux
• Infrared Range: up to 130 ft (40 m)
• Physical Connectors:
• Ethernet: 10/100 RJ45 PoE
• I/O: 4-pin 2.5 mm terminal block for 1 alarm input and 1 output
• Power Over Ethernet (PoE): 802.3at Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: 32°F to 122°F
• Durability Ratings: IP54, IK10

Axis P3285-LV Network Security Camera Package Contents:

• Camera
• Installation Guide
• Drill Template
• Terminal Block Connector
• Connector Guard
• Cable Gasket
• Owner Authentication Key

Axis P3285-LV Documentation:

• Axis P3285-LV Datasheet
• Axis P3285-LV Installation Guide
