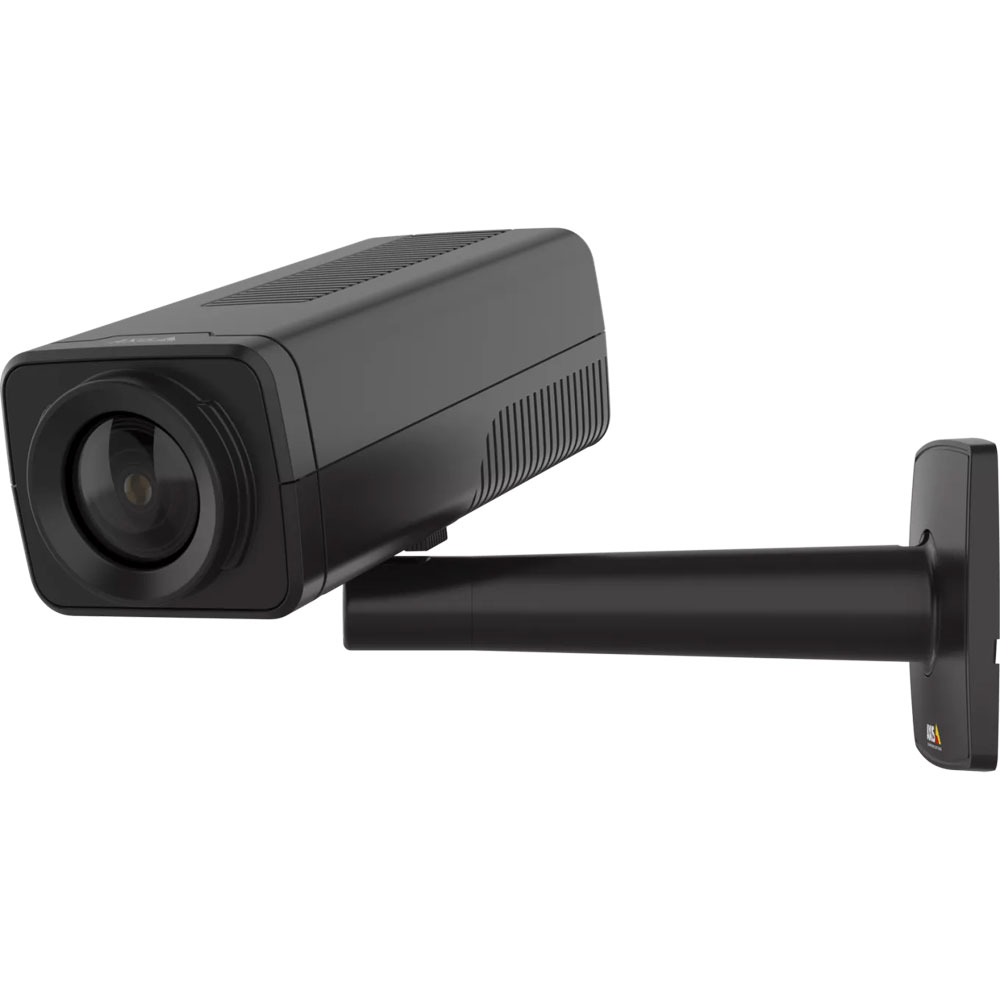

Axis Q1726 4 MP Enclosure-Ready Block IP Camera - 03392-001

Axis Q1726 is an enclosure-ready security camera that delivers superior image quality. Q1726 has a wide varifocal lens with large f/1.1-1.2 aperture that captures more light than comparable cameras, resulting in better image quality. Use it for surveillance in open areas with remote zoom and focus to help you calibrate for optimal picture. This 4 MP camera — twice the resolution of a 1080p Full HD camera — provides crisp, detailed video. It supports up to 120 fps video in all resolutions for fine-grained visual evidence even in fast-moving situations. In addition to its first-class optics, Q1726 features Lightfinder 2.0 technology for accurate color reproduction in extreme low-light and Forensic WDR for capturing much more detail in high-contrast lighting situations.

Q1726 is powered by the purpose-built ARTPEC-9 System on a Chip that enables advanced analytics to streamline and enhance your surveillance. The camera comes with Axis Object Analytics and Axis Live Privacy Shield installed. The chip greatly improves cybersecurity, as does Axis Edge Vault, a hardware based security solution. ARTPEC-9 also lets the camera support ultra-efficient video compression like AV1 and H.265 (HEVC) to greatly reduce load on bandwidth and storage. Q1726 fits many types of camera enclosures, including both first-party Axis camera enclosures and third-party or custom models, as well. This flexibility lets you design a new installation or reuse existing enclosures while taking advantage of the cutting-edge optics and computer performance that Q1726 provides.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q1726 Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.8-in progressive scan RGB CMOS
• Video Resolution: up to 4 MP (2688 x 1512 px)
• Frame Rate:
• With WDR: up to 30 fps (all resolutions)
• No WDR: up to 120 fps (all resolutions)
• HDMI: up to 60 fps (max. 1080p Full HD)
• Video Compression: AV1; H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 4.7-10 mm, f/1.1-1.2
• Field of View:
• Horizontal: 101.8° to 44°
• Vertical: 54° to 24.6°
• Minimum Illumination:
• Color: 0.01 lux
• B/W: 0.002 lux
• Audio: configurable duplex
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• I/O: 6-pin 2.5 mm terminal block for four configurable inputs
• Serial Communication: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
• Audio: 3.5 mm mic/line in
• Power: DC input, terminal block
• HDMI: HDMI Type D
• Power Over Ethernet (PoE): 802.3af/at Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: 14°F to 140°F

Axis Q1726 Block Camera Package Contents:

• Camera
• Installation Guide
• Owner Authentication Key
• Stand
• Terminal Block Connectors
• Allen Key

Axis Q1726 Documentation:

• Axis Q1726 Datasheet
• Axis Q1726 Installation Guide
