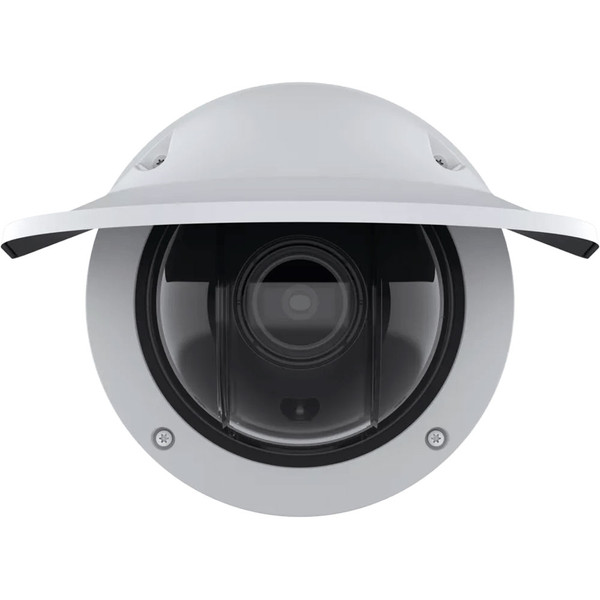

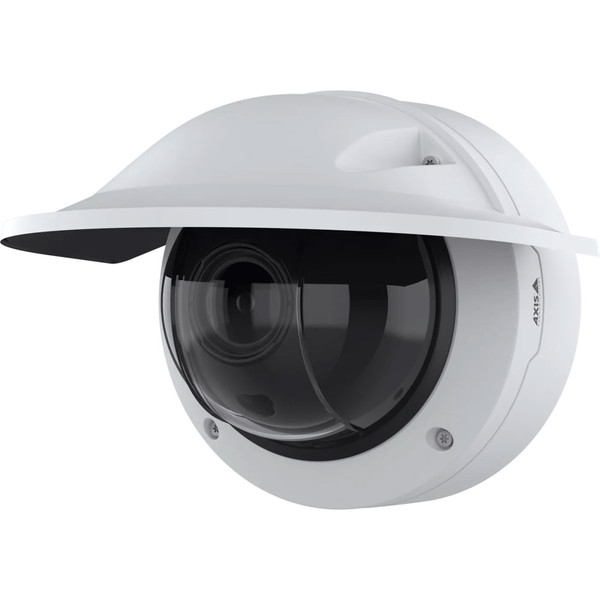

Axis Q3546-LVE 10 mm 4 MP Outdoor Dome IP Camera - 02971-001

Axis Q3546-LVE is an outdoor-rated, AI-powered security camera. Q3546-LVE 10 MM comes with a professional wide-angle varifocal lens, making it suitable for general coverage of open areas outside. The lens offers 2.2x optical zoom, so you can adjust it to fit the scene without worry of compromising your surveillance video. Q3546-LVE supports up to 4 MP video, twice the resolution of 1080p Full HD. It enhances video quality with advanced image processing. Lightfinder 2.0 improves color accuracy in extreme low-light. Forensic WDR enables the camera to deal with extreme contrasts better. OptimizedIR infrared lights let the camera take video in no-light conditions with a range of up to 197 feet. Q3546-LVE can take up to 120 fps video, making it suitable for scenes with fast-moving vehicles.

Q3546-LVE uses its purpose-built ARTPEC-9 System on a Chip to power advanced analytics and video-enhancing technologies. It comes with the Axis Object Analytics application installed, which automatically classifies objects into human and vehicle, including type of vehicle. The camera also includes Image Health Analytics, Scene Metadata, Live Privacy Shield, and Video Motion Detection. The camera also has built-in cybersecurity via Axis Edge Vault, a from-the-ground-up solution to safeguard the device against unauthorized access. To reduce file sizes and bandwidth usage, it supports ultra-efficient AV1 and H.265 (HEVC) video compression. Save video in camera using a microSD card or through the network. Q3546-LVE is built to withstand the elements with a durable aluminum casing, included weathershield, and robust temperature range. Q3546-LVE is ONVIF Profiles G, M, S, and T compliant.

Note: This model of Axis Q3546-LVE (02971-001) has a 4.7-10 mm lens. The same camera is also available with a 13-51 mm lens. Search for Axis 02972-001.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q3546-LVE 10 mm Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.8" progressive scan RGB CMOS
• Video Resolution: up to 4 MP (2688 x 1512 px)
• Frame Rate:
• No WDR: up to 120 fps
• With Forensic WDR: up to 30 fps
• Video Compression: AV1; H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 4.7-10 mm, f/1.1-1.2
• Field of View:
• Horizontal: 101° to 44°
• Vertical: 54° to 25°
• Zoom: 2.2x optical
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: +80° to -42°
• Rotation: ±180°
• Minimum Illumination:
• Color: 0.01 lux
• Infrared: 0 lux
• Infrared Range: up to 197 ft (60 m)
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block
• Power: DC input, terminal block
• Power Over Ethernet (POE): 802.3at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -58°F to 131°F
• Durability Ratings: IP66, IP6K9K, IK10, NEMA 4X

Axis Q3546-LVE 10 mm Network Security Camera Package Contents:

• Camera
• Weathershield
• Installation Guide
• Terminal Block Connectors
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis Q3546-LVE Documentation:

• Axis Q3546-LVE Datasheet
• Axis Q3546-LVE Installation Guide
