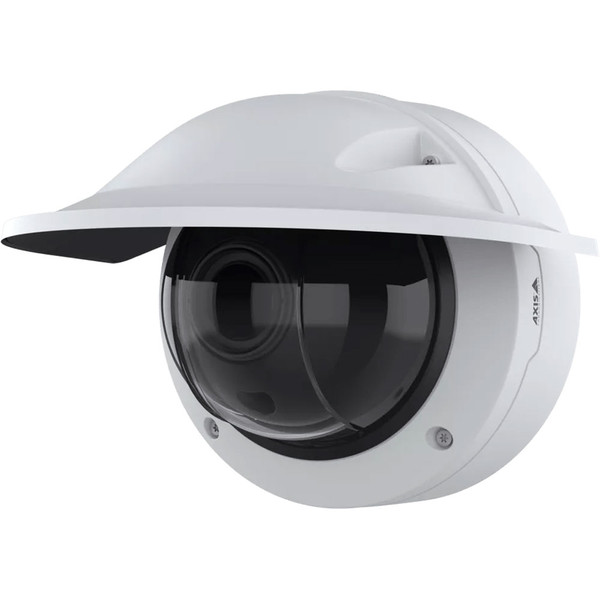

Axis Q3546-LVE 51 mm 4 MP Outdoor Dome IP Camera - 02972-001

Axis Q3546-LVE is an AI-powered surveillance camera with telephoto lens. Designed for outdoor installation, Q3546-LVE 51 mm uses its professional optics and CMOS image sensor to provide exceptionally detailed security video. It has a 13-51 mm lens that offers 3.8x lossless optical zoom. The camera can take up to 4 MP video, which is twice the resolution of 1080p Full HD video. On top of this foundation, it uses image enhancing technologies to provide first-class performance across a whole range of conditions. Lightfinder 2.0 greatly improves color accuracy in extreme low-light and OptimizedIR infrared lights enable no-light surveillance. The IR lights have a range of up to 230 feet. Forensic WDR deals with extreme lighting contrasts. The camera can take video at up to 120 fps, which makes it suitable for vehicular surveillance.

Q3546-LVE is powered by the purpose-built ARTPEC-9 System on a Chip and uses AI-enhanced technologies. The camera comes with the Axis Object Analytics application already installed. Object Analytics automatically classifies viewed objects into human and vehicle, including type of vehicle (car, bus, bicycle, etc.). Q3546-LVE also comes with Image Health Analytics, Scene Metadata, Live Privacy Shield, and Video Motion Detection. Axis Edge Vault is a cybersecurity platform that is incorporated with the camera from the ground up. It protects your system and the device from unauthorized access and more. To reduce file sizes and bandwidth usage, the camera supports ultra-efficient AV1 and H.265 (HEVC) video compression. You can save video in camera using a microSD card or through the network. Q3546-LVE withstands the elements: a durable aluminum casing, included weathershield, and greatly extended temperature range. Q3546-LVE is ONVIF Profiles G, M, S, and T compliant for integration with third-party devices and systems.

Note: This model of Axis Q3546-LVE (02972-001) has a 13-51 mm lens. The same camera is also available with a 4.7-10 mm lens. Search for Axis 02971-001.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q3546-LVE 51 mm Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.8" progressive scan RGB CMOS
• Video Resolution: up to 4 MP (2688 x 1512 px)
• Frame Rate:
• No WDR: up to 120 fps
• With Forensic WDR: up to 30 fps
• Video Compression: AV1; H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 13-51 mm, f/1.7-2.1
• Field of View:
• Horizontal: 33° to 9°
• Vertical: 18° to 5°
• Zoom: 3.8x optical
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: +89° to -42°
• Rotation: ±180°
• Minimum Illumination:
• Color: 0.04 lux
• Infrared: 0 lux
• Infrared Range: up to 230 ft (70 m)
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block
• Power: DC input, terminal block
• Power Over Ethernet (POE): 802.3at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -58°F to 131°F
• Durability Ratings: IP66, IP6K9K, IK10, NEMA 4X

Axis Q3546-LVE 51 mm Network Security Camera Package Contents:

• Camera
• Weathershield
• Installation Guide
• Terminal Block Connectors
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis Q3546-LVE Documentation:

• Axis Q3546-LVE Datasheet
• Axis Q3546-LVE Installation Guide
