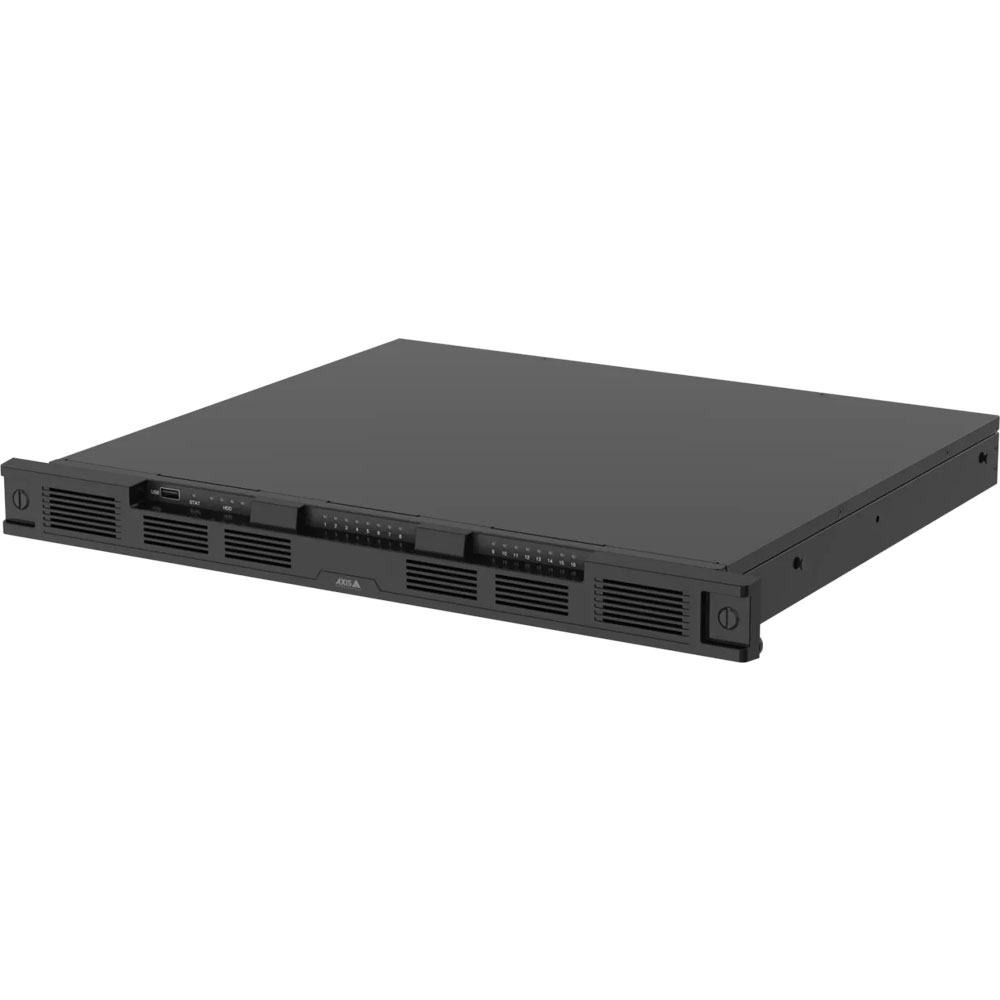

Axis S3016 16 TB Network Video Recorder and 16-Port PoE Switch - 02351-004

Axis S3016 is a two-in-one solution for network video surveillance: a 16-channel network video recorder (NVR) and 16-port PoE network switch in one device. As a video recorder, S3016 uses four surveillance-grade hard drives for secure, ultra-reliable storage. It supports RAID Levels 0, 1, 5, 6, and 10. S3016 has a 2.5-Gigabit uplink for handling even 4K Ultra HD resolution video, so you get the detail you need to ensure security. The video you record with S3016 is encrypted via its TPM 2.0 (Trusted Platform Module). You can access it remotely via Axis Secure Remote Access.

As a PoE network switch, S3016 has 16 Gigabit Ethernet ports and a total power budget of 305 W. It is compatible with up to 802.3at Class 4 PoE, which means it can deliver more power to your cameras and other devices. S3016 is the perfect solution for single-site video surveillance systems, multi-site systems, or expanding existing systems. S3016 is intended for mounting in a standard 1U rack or for table-mounting.

Note: This model of Axis S3016 (02351-004) comes with 16 TB of HDD storage. S3016 is also available with 8 TB (02527-004) or 32 TB (02352-004) of HDD storage.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis S3016 16 TB Quick Specs:

• Storage: 16 TB HDD (4 x 4 GB)
• Supported RAID Levels: 0, 1, 5, 6, 10
• System on Chip (SoC): i.MX 8QuadMax
• Channels: up to 16 video sources
• Recording Rate: up to 256 Mbit/sec
• Video Compression: H.264 (AVC), H.265 (HEVC)
• Physical Connectors (Rear):
• PoE: 16x Gigabit RJ45 PoE
• AUX: 1x 2.5-Gigabit RJ45
• LAN: 1x 2.5-Gigabit RJ45, 1x SFP Gigabit
• USB: 1x USB-A 2.0
• Power: 1x power connector
• Physical Connectors (Front): 1x USB-A 3.0
• PoE Power Budget: 305 W

Axis S3016 Recorder/PoE Switch Package Contents:

• NVR
• Rack Rails
• Front Cover
• Rubber Feet
• Installation Guide
• Power Cord
• Screws

Axis S3016 Documentation:

• Axis S3016 Datasheet
• Axis S3016 Installation Guide
