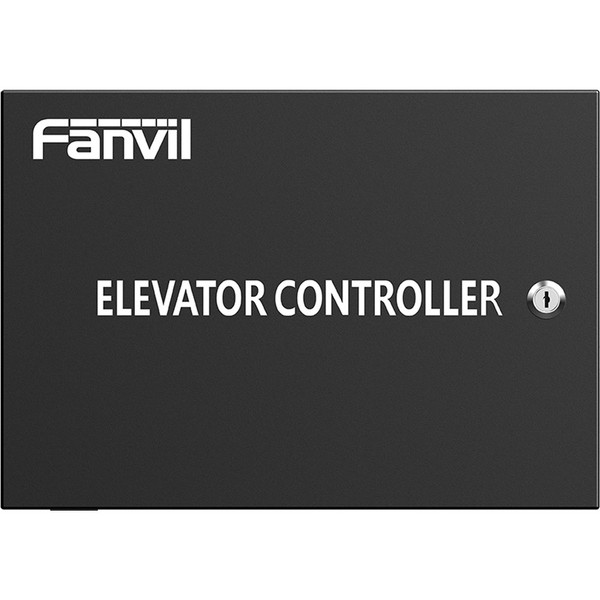

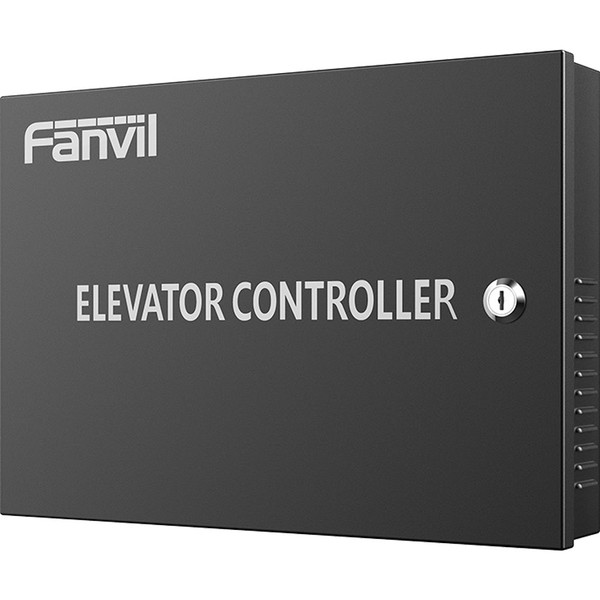

Fanvil EC20 Elevator Controller

Fanvil EC20 is a modular, interoperable elevator controller for office buildings and apartment buildings/condominiums. Use EC20 to let workers and residents call elevators using a variety of intercoms, door phones, and mobile apps. Make elevator calling effortless and efficient. It supports individual floor access permissions for up to 16 floors out of the box and up to 128 floors with additional sub-controllers (purchased separately), making it a highly scalable, network-connected solution for elevator integration. EC20 even supports temporary visitor credentials.

EC20 is an IP solution that integrates with intercom systems via a LAN connection. It is compatible with card readers and can store up to 50,000 card registrations to enable fast, secure entry. EC20 can integrate with compatible fire alarm systems for improved physical safety. The elevator controller can be managed via the cloud, which means the system operator does not need to be located on premises, greatly improving the flexibility and possibility of the elevator system.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Fanvil EC20 Quick Specs:

• Number of Floors: up to 16 by default (expandable to up to 128 with optional sub-controller)
• Card Reader: supports up to 50,000 cards
• Ethernet Port: 1x 10/100 RJ45
• Interfaces:
• RS485: 4x RS485
• Wiegand: 1x Wiegand 26/34
• Fire Alarm: 1x fire alarm input

Fanvil EC20 Elevator Controller Package Contents:

• Elevator Controller
• Switch
• 3.28 ft Power Cable
• Quick Installation Guide
• Ribbon Cable

Fanvil EC20 Documentation:

• Fanvil EC20 Datasheet v1.0
• Fanvil EC20 User Manual v1.0
