Yealink MCoreKit-C5U Microsoft Teams Rooms on Windows Base Kit - MCoreKit-C5U-MS

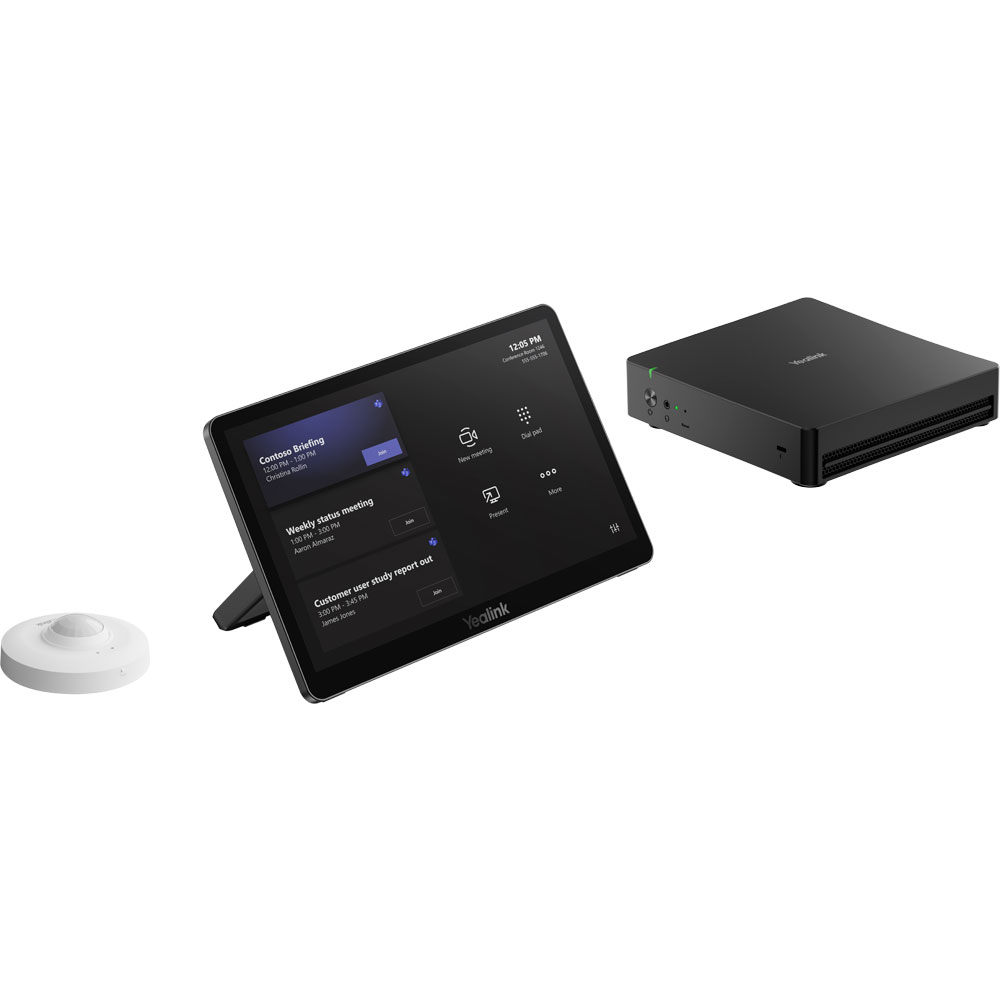

Yealink MCoreKit-C5U is an updated core kit for establishing a professional Microsoft Teams Rooms on Windows video conferencing system. MCoreKit-C5U-MS includes a MCore 4, MTouch Plus, and RoomSensor. With this kit, you have the start of a Microsoft Teams video conferencing ecosystem that provides a native meeting experience for rooms of all sizes.

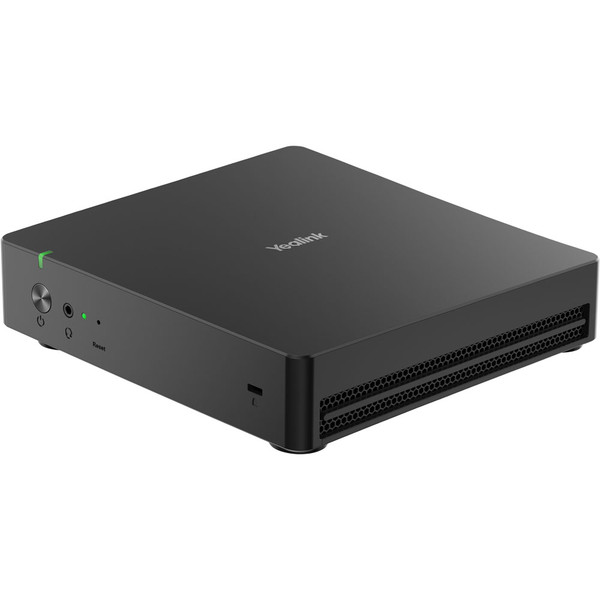

Yealink MCore 4 is an improved Windows mini-PC that acts as a dedicated computer for running the Microsoft Teams Rooms app, which comes pre-loaded. By having a dedicated mini-PC, the video conferencing system will always be available for whoever needs to run a Teams conference. Better still, no one has to bring their own laptop or other device to run the meeting: it's ready to go. Yealink chose the specs for the MCore 4 to meet the requirements for an enterprise-class Microsoft Teams experience.

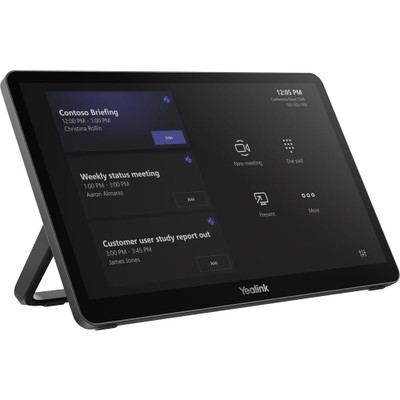

Yealink MTouch Plus provides the control center for the meeting room. MTouch Plus is a 11.6-inch touch console with widescreen display. It sits in the center of the meeting table and offers a touch-based interface for starting and managing meetings, sharing HD content, and more. Simple to use, it shows the familiar Microsoft Teams interface to eliminate cross-device friction. The bundle also includes a Yealink RoomSensor, which is installed on the meeting room ceiling and communicates with the system via Bluetooth. It enables automatic system wake-up to make the Teams video conferencing ecosystem truly professional.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink MCoreKit-C5U Quick Specs:

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink MCoreKit-C5U Microsoft Teams Rooms on Windows Kit Package Contents:

• MCore 4 Package
• MTouch Plus Package
• RoomSensor Package

Yealink MCoreKit-C5U Documentation:

• Yealink MCoreKit-C5U-MS Datasheet
