Yealink MVC S40-C5U Microsoft Teams Rooms on Windows Kit - MVC S40-C5U-000

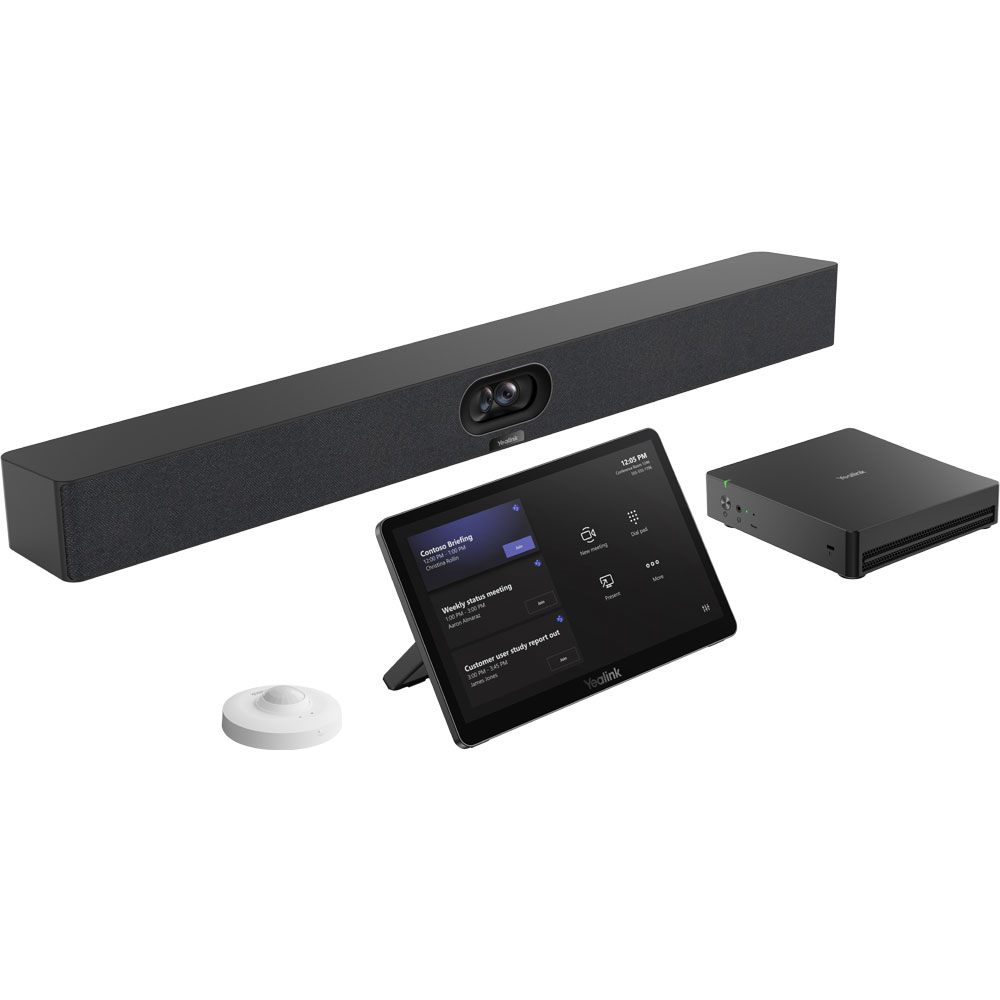

Yealink MVC S40-C5U is an MVC Series Microsoft Teams Rooms on Windows kit for small to medium rooms. MVC S40-C5U consists of a SmartVision 40, MCore 4, MTouch Plus, and RoomSensor. The kit has everything you need to establish a professional Microsoft Teams video conferencing ecosystem.

Yealink SmartVision 40 is a dual-eye video bar that uses fixed-focus video stitching technology to combine the feeds from its two lenses, giving you wide-angle video with higher pixel density and enabling 6x digital zoom. As an intelligent video bar, it supports AI tracking modes, including IntelliFocus, IntelliFrame, and Video Fence. The all-in-one video bar has a powerful 8-microphone array with up to 20 foot voice pickup range, as well as stereo speakers tuned for optimal sound on calls. SmartVision 40 is a professional A/V solution for Microsoft Teams video conferences and virtual meetings.

Yealink MCore 4 is an updated Windows mini-PC that runs the Microsoft Teams Rooms app. The app comes preloaded, so it's ready to go out of the box. MCore 4 uses an Intel Ultra5 125H CPU, which enables AI features and delivers a smooth, efficient meeting experience. The mini-PC has multiple HDMI connections and supports up to 4K Ultra HD resolution image presentation so you'll always have detailed graphs, charts, slideshows, and more.

Yealink MTouch Plus is a touch console that you use to manage the video conferencing system. Its widescreen 11.6-inch display shows the familiar Microsoft Teams interface, enabling one-touch call starting, in-call management features, camera adjustment, and content sharing. Yealink RoomSensor is a Bluetooth-enabled device that automatically wakes up the system when someone enters the meeting room, providing the capstone to a truly professional Microsoft Teams collaboration experience.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink MVC S40-C5U Quick Specs:

Yealink SmartVision 40:

• Cameras: 2x 48 MP
• Field of View (Diagonal): 120°
• Video Resolution: up to 4K Ultra HD at 30 fps
• Zoom: 6x digital
• Microphones: 8x MEMS
• Voice Pickup Range: up to 19.69 ft (13.12 ft quality)
• Speakers: 2x 10 W
• Wi-Fi: yes
• Physical Interfaces:
• Audio: 1x 3.5 mm
• HDMI: 1x HDMI out
• Power: 1x power port
• USB: 1x USB-A 2.0, 1x USB-B 3.0, 1x USB-C
• VCH: 1x RJ45

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

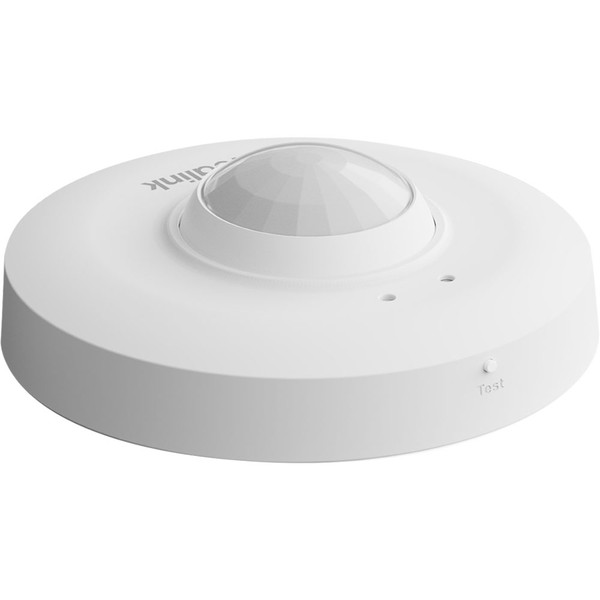

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink MVC S40-C5U Microsoft Teams Rooms on Windows Kit Package Contents:

• SmartVision 40 Package
• MCore 4 Package
• MTouch Plus Package
• RoomSensor Package

Yealink MVC S40-C5U Documentation:

• Yealink MVC S40-C5U Datasheet
• Yealink SmartVision 40 Datasheet
