Yealink MVC S98-C5U Microsoft Teams Rooms on Windows Kit - MVC S98-C5U-004

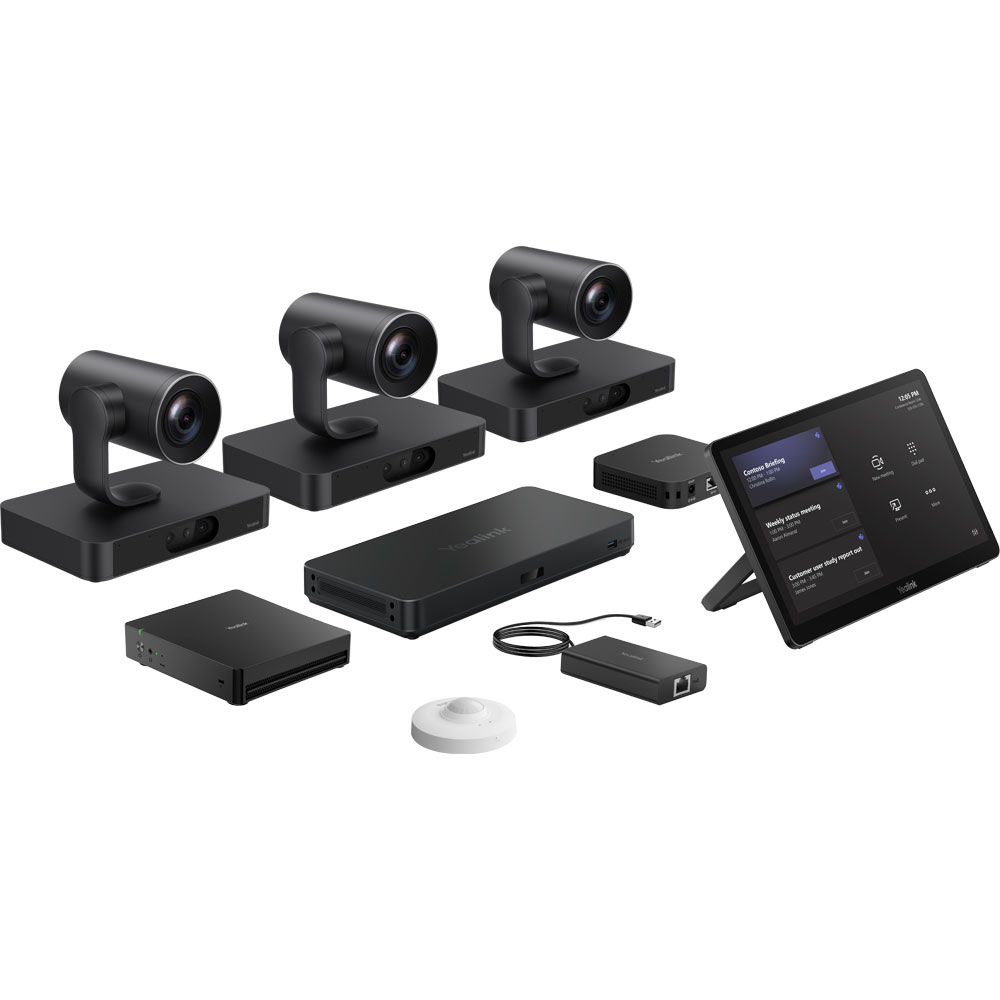

Yealink MVC S98-C5U is a cutting-edge Microsoft Teams Rooms on Windows kit for extra-large meeting rooms that delivers a professional, multi-camera video conferencing experience with native Microsoft Teams integration. MVC S98-C5U includes three SmartVision 80s, MCore 4, MTouch Plus, AVHub, RCH40 E2, BYOD-Extender, and RoomSensor. That's multiple four-lens PTZ cameras, an upgraded mini-PC, widescreen touch console, and more. Do you want a pro AV solution for Microsoft Teams meetings in extra-large rooms? Look to MVC S98-C5U.

Yealink SmartVision 80 is a four-lens video conferencing camera with built-in intelligence for feature-rich video conferencing support. SmartVision 80 combines a PTZ camera with 20x optical zoom for lossless zooming on individual faces with two telephoto lenses and one panoramic lens. It supports automatic features like IntelliFocus, Presenter Tracking, and much more. And you get three SmartVision 80s in this bundle for total coverage of even very large spaces. The camera feeds are handled by AVHub. Yealink AVHub is an audio-video processor. It is a simple solution for managing the feeds to and from multiple video conferencing cameras, microphones, and speakers. It also lets you adjust how the feeds are presented, optimize the feeds to suit the specific meeting room dimensions, and more. And AVHub can handle more than what comes in this bundle, so it's also a scalable solution for multi-camera video conferencing.

Yealink MCore 4 is a powerful Windows mini-PC with specs chosen for optimal performance while driving a Microsoft Teams meeting. The Microsoft Teams Rooms app comes already installed, as does Yealink RoomConnect. As a Windows 11 IoT Enterprise X64 mini-PC, MCore 4 features an Intel Ultra5 125H CPU, 16 GB of DDR5 RAM, and a 256 GB SSD for lightning-fast performance. It has three HDMI video outputs for simple connectivity. Yealink RCH40 E2 is a compact PoE switch with four Gigabit Ethernet ports. It is a simple solution for connecting devices to the network while powering them at the same time. It can deliver up to 30 W of power per port.

Yealink MTouch Plus gives you a dedicated system control. It's a 11.6-inch touch console that makes manage Microsoft Teams meetings as easy as using your smartphone, greatly reducing learning time and improving usability for everyone. Yealink BYOD-Extender is an adapter for letting your computer access and use the video conferencing systems audio and video equipment, making the system more flexible. And the Microsoft Teams Rooms kit also comes with one Yealink RoomSensor, which connects via Bluetooth and enables automatic system wake-up, providing that final piece for rounding out the professional Teams system for extra-large rooms.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink MVC S98-C5U Quick Specs:

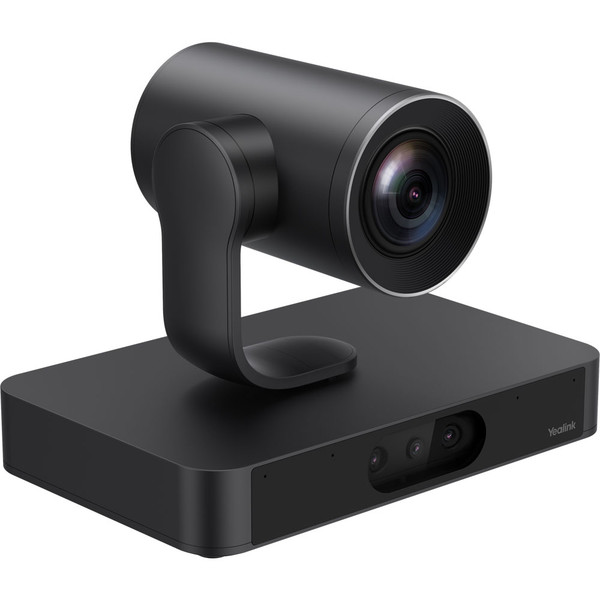

Yealink SmartVision 80:

• Field of View:
• PTZ: 61.5° H x 36° V
• Panoramic: 98° H x 82° V
• Telephoto: 41.6° H x 32° V
• Zoom: 20x optical (PTZ camera)
• Physical Connectors:
• 3.5 mm: 1x line in, 1x line out
• Ethernet: 1x RJ45
• HDMI: 1x HDMI out
• Power: 1x power port
• USB: 1x USB-A 2.0, 1x USB-B 3.0
• VCH: 2x RJ45

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

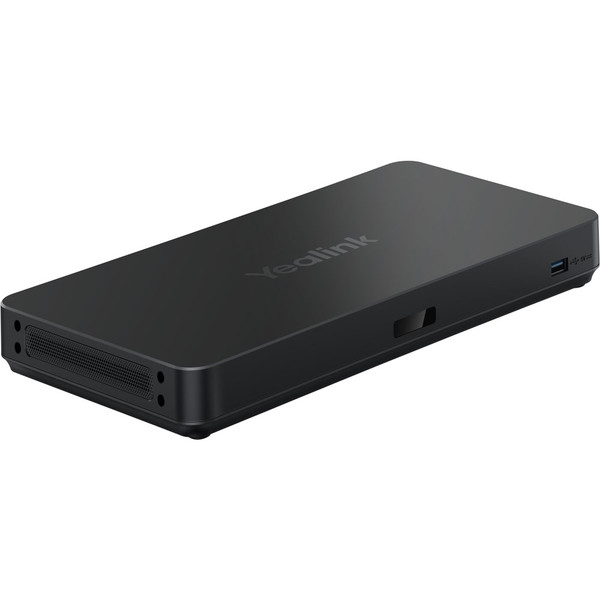

Yealink AVHub:

• Device Support:
• Cameras: up to 9x Yealink UVC84/UVC86
• Microphones: up to 8x Yealink VCM34/VCM35/VCM38
• SkySound Microphones: up to 4x Yealink CM20/CS10
• Speakers: up to 4x Yealink MSpeaker II
• Physical Interfaces:
• 6.3 mm: 1x line in, 1x line out
• Codec: 1x codec port
• RCA: 1x RCA in, 1x RCA out
• USB: 2x USB-A, 1x USB-B
• VCH: 7x RJ45

Yealink RCH40 E2:

• Ethernet Ports: 4x Gigabit RJ45 PoE
• PoE (Power Over Ethernet): 802.3af
• PoE Budget: 90 W (up to 30 W per port)

Yealink BYOD-Extender:

• USB Cable: 4.92 ft (1.5 m) USB-A
• Physical Connector: 1x VCH port (RJ45)

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink MVC S98-C5U Microsoft Teams Rooms on Windows Kit Package Contents:

• 3x SmartVision 80 Packages
• MCore 4 Package
• MTouch Plus Package
• AVHub Package
• RCH40 E2 Package
• BYOD-Extender Package
• RoomSensor Package

Yealink MVC S98-C5U Documentation:

• Yealink MVC S98-C5U Datasheet
