Yealink ZVC S40-C5U Zoom Rooms Kit - ZVC S40-C5U-000

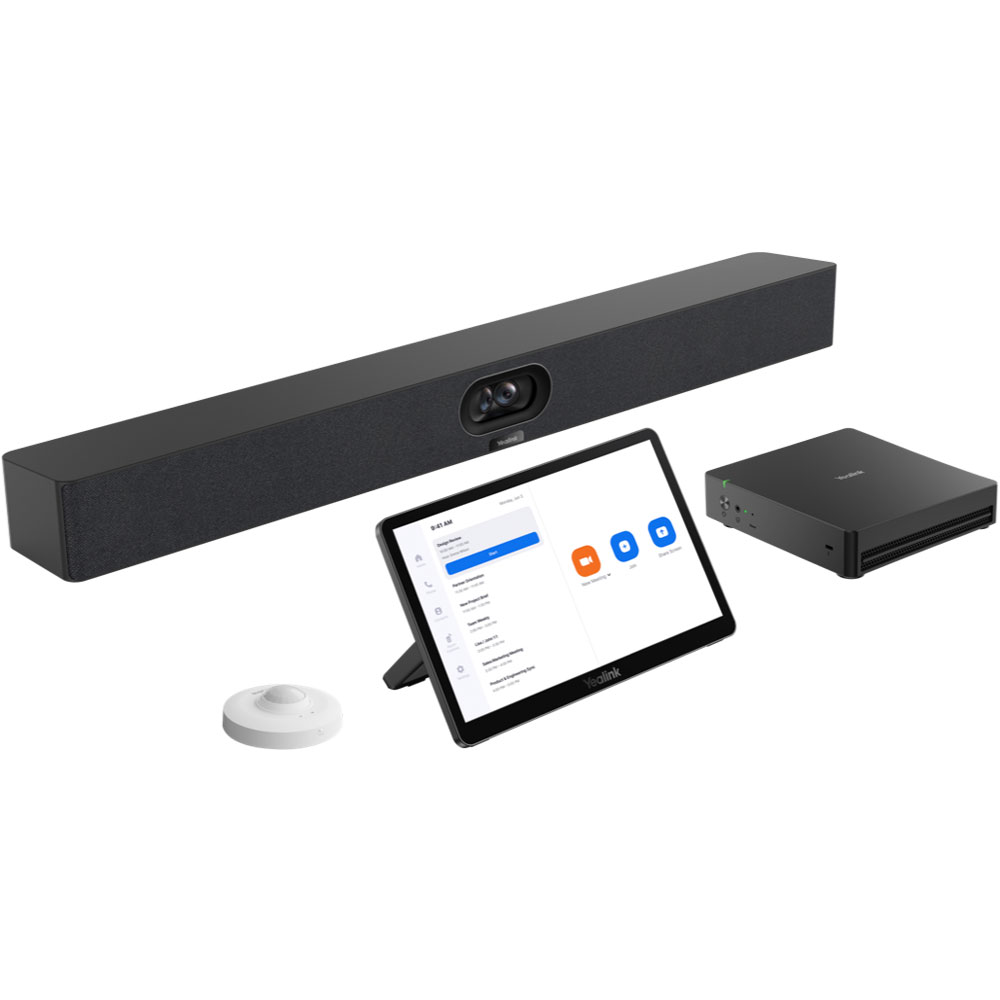

Yealink ZVC S40-C5U is a Zoom Rooms video conferencing kit for small to medium rooms. ZVC S40-C5U-000 comes with a SmartVision 40 video bar, MCore 4 mini-PC, MTouch Plus touch console, and RoomSensor. ZVC S40-C5U is an ideal solution for enabling communication and collaboration using Zoom Rooms with native platform integration, professional audio/video performance including AI enhanced features, enterprise-grade security, and more. By using a unified, single-party system, deployment and management are simplified, operational complexity is reduced, and interoperability is guaranteed.

Yealink SmartVision 40 is a smart dual-eye video bar. It combines the video feeds from two fixed-focus cameras, providing highly detailed, wide-angle video with excellent pixel density and reduced distortion. The system also enables improved 6x digital zoom. As a smart video bar, SmartVision 40 supports a whole range of AI-enhanced features and tracking modes, including IntelliFocus, IntelliFrame, and Video Fence. It's an all-in-one video bar. Its 8-microphone array offers a 20 foot voice pickup range for full coverage in small to medium conference rooms. The video bar has stereo speakers that are tuned to make conversations clearer and more comprehensible. SmartVision 40 is a simple, pro-grade solution for Zoom Rooms video conferencing.

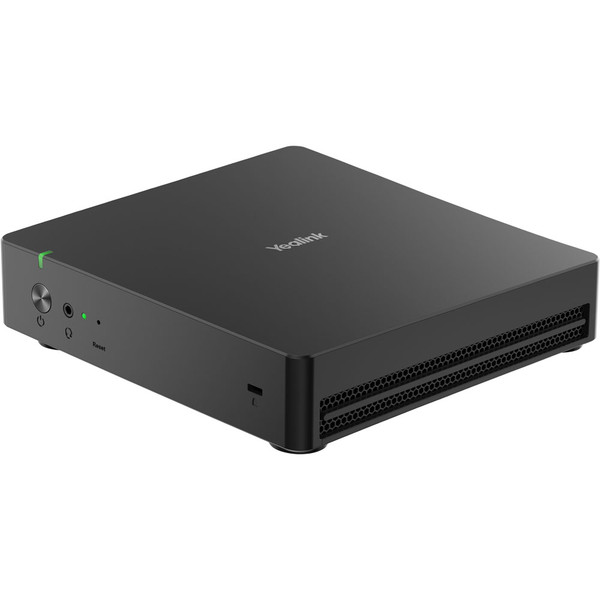

Yealink MCore 4 is an improved Windows mini-PC that runs the meeting room software. The Zoom Rooms app comes preloaded on the compact computer. Powered by an Intel Ultra5 125H CPU, MCore 4 delivers reliable business-class performance so everyone can hold Zoom meetings without worrying about bringing a laptop or other device. The mini-PC offers AI computing power, making Zoom collaboration more immersive and better than ever before. Yealink MTouch Plus is a large-screen touch console. It acts as a dedicated, touch-based controller for the meeting room, letting everyone manage meetings, share content, and more. With an 11.6-inch display that shows the familiar Zoom interface, MTouch Plus is simple to use. Yealink RoomSensor connects via Bluetooth to the video conferencing system, automatically detecting occupancy status, real-time environmental metrics, and more.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink ZVC S40-C5U Quick Specs:

Yealink SmartVision 40:

• Cameras: 2x 48 MP
• Field of View (Diagonal): 120°
• Video Resolution: up to 4K Ultra HD at 30 fps
• Zoom: 6x digital
• Microphones: 8x MEMS
• Voice Pickup Range: up to 19.69 ft (13.12 ft quality)
• Speakers: 2x 10 W
• Wi-Fi: yes
• Physical Interfaces:
• Audio: 1x 3.5 mm
• HDMI: 1x HDMI out
• Power: 1x power port
• USB: 1x USB-A 2.0, 1x USB-B 3.0, 1x USB-C
• VCH: 1x RJ45

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink ZVC S40-C5U for Zoom Rooms System Package Contents:

• SmartVision 40 Package
• MCore 4 Package
• MTouch Plus Package
• RoomSensor Package

Yealink ZVC S40-C5U Documentation:

• Yealink ZVC S40-C5U Datasheet
• Yealink ZVC S40-C5U Quick Start Guide v1.0
• Yealink SmartVision 40 Datasheet
• Yealink MCore 4 Datasheet
• Yealink MTouch Plus Datasheet
• Yealink RoomSensor Datasheet
