Yealink ZVC S80-C5U Zoom Rooms Kit - ZVC S80-C5U-000

Yealink ZVC S80-C5U is a professional kit for Zoom Rooms video conferencing in large meeting rooms. ZVC S80-C5U-000 comes with a SmartVision 80 video conferencing camera, MCore 4 mini-PC, MTouch Plus touch console, and RoomSensor. ZVC S80-C5U is a simple way to give your business pro-grade A/V performance including AI enhanced technologies, enterprise-class computer processing and security, and more. By going with a unified, single-party Zoom Rooms system, you're choosing a simple, streamlined deployment, easier system management, reduced operational complexity, and guaranteed device interoperability.

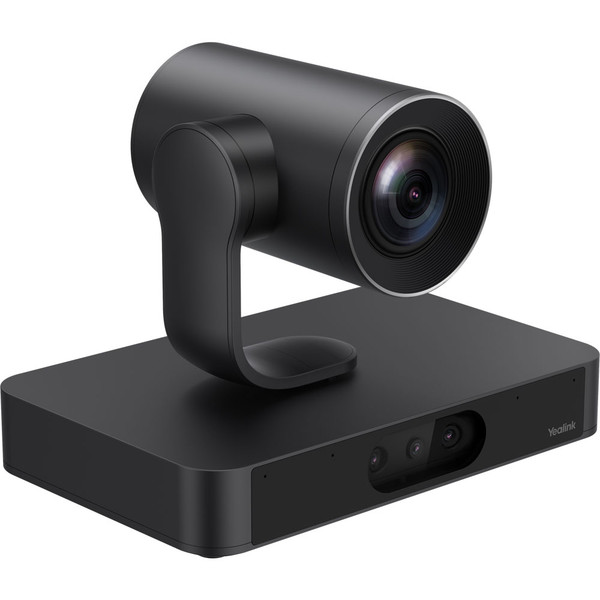

Yealink SmartVision 80 is a four-lens PTZ camera that provides elite video for your Zoom meetings. SmartVision 80 has a mechanical PTZ camera that can pick out individual faces with exceptionally lifelike detail and color with up to 20x lossless optical zoom. The camera has three other lenses: one panoramic lens for group coverage and two telephoto lens for closer in video. Put together, the four-in-one camera is a single device for total coverage of large meeting rooms. SmartVision 80 is an intelligent camera that uses AI to enhance its video technologies: IntelliFocus, Presenter Tracking, Speaker Tracking, Auto Framing, and more. With enhanced accuracy and coverage, the camera provides a professional, natural video conferencing experience. It can also use its advanced audio processing technology with a wide range of Yealink audio devices like microphones and speakers, enabling crystal clear audio for everyone in the meeting room.

Yealink MCore 4 is a powerful Windows mini-PC that supports advanced AI features. A dedicated computer for the conference room, MCore 4 has a Intel Ultra5 125H CPU for business-class performance. It comes with the Zoom Rooms app already installed. Having a dedicated computer that can run the meeting means everyone will always be able to hold a professional Zoom call. And Yealink MTouch Plus makes it simple to operate the system. This 11.6-inch touch console provides a familiar, touch-based control center for one-click conferencing, call management, camera adjustment, content sharing, and more. Yealink RoomSensor is mounted on the ceiling of the meeting room. It connects to the system via Bluetooth and enables automatic system wake-up, occupancy status detection, real-time environmental metrics, and more.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink ZVC S80-C5U Quick Specs:

Yealink SmartVision 80:

• Field of View:
• PTZ: 61.5° H x 36° V
• Panoramic: 98° H x 82° V
• Telephoto: 41.6° H x 32° V
• Zoom: 20x optical (PTZ camera)
• Physical Connectors:
• 3.5 mm: 1x line in, 1x line out
• Ethernet: 1x RJ45
• HDMI: 1x HDMI out
• Power: 1x power port
• USB: 1x USB-A 2.0, 1x USB-B 3.0
• VCH: 2x RJ45

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink ZVC S80-C5U for Zoom Rooms System Package Contents:

• SmartVision 80 Package
• MCore 4 Package
• MTouch Plus Package
• RoomSensor Package

Yealink ZVC S80-C5U Documentation:

• Yealink ZVC S80-C5U Datasheet
• Yealink ZVC S80-C5U Quick Start Guide v1.0
• Yealink SmartVision 80 Datasheet
• Yealink MCore 4 Datasheet
• Yealink MTouch Plus Datasheet
• Yealink RoomSensor Datasheet
