Yealink ZVC S90-C5U Zoom Rooms Kit - ZVC S90-C5U-004

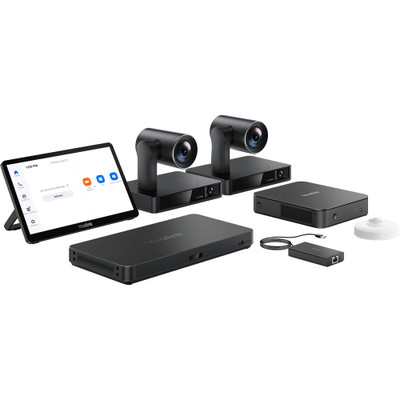

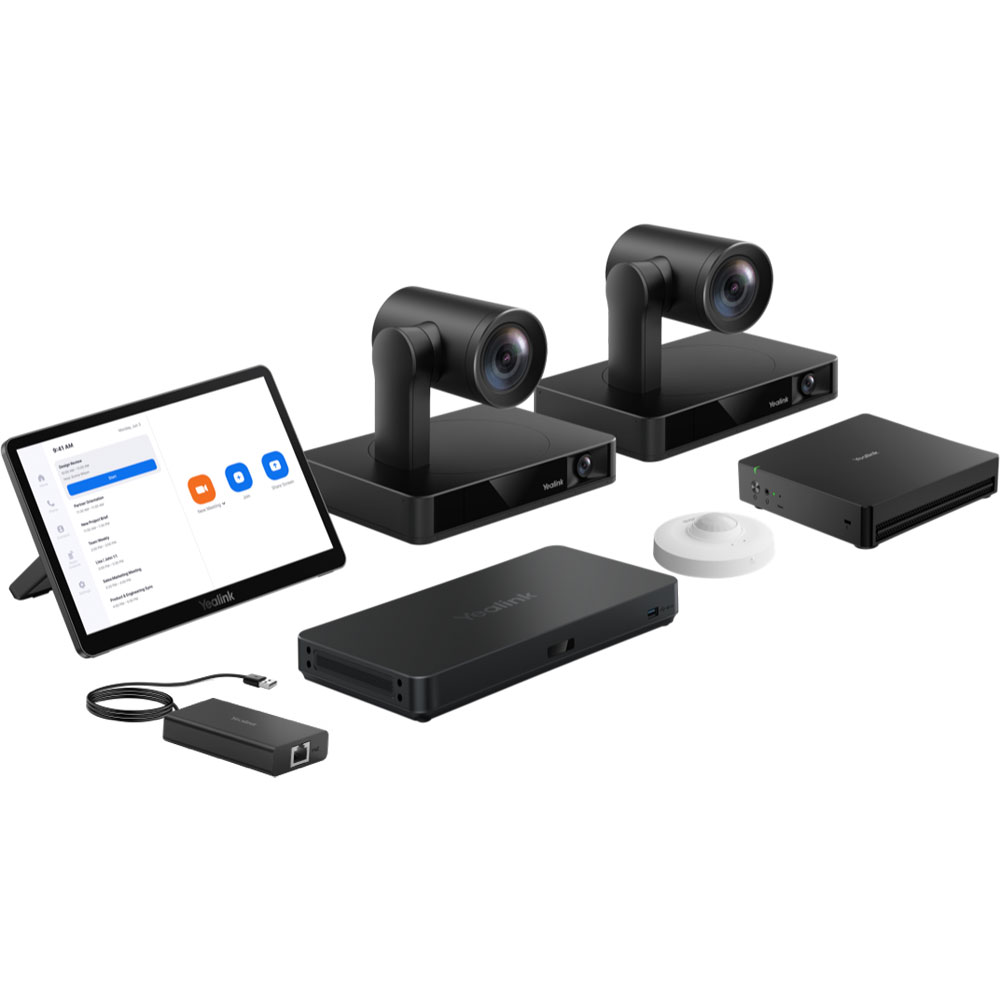

Yealink ZVC S90-C5U is a professional Zoom Rooms kit for multi-camera video conferencing systems in extra-large rooms.ZVC S90-C5U-004 comes with two UVC86 video conferencing cameras, MCore 4 mini-PC, MTouch Plus touch console, AVHub, BYOD-Extender, and RoomSensor. ZVC S90-C5U is a solution for pro-grade A/V in challenging extra-large board rooms, training rooms, and more. The kit provides AI-based performance and features enhancements, business-class computer processing and security, and more to make collaboration simple and professional. By choosing a unified, single-party Zoom Rooms system, you'll find streamlined deployment, easier system management, reduced operational complexity, and guaranteed device interoperability.

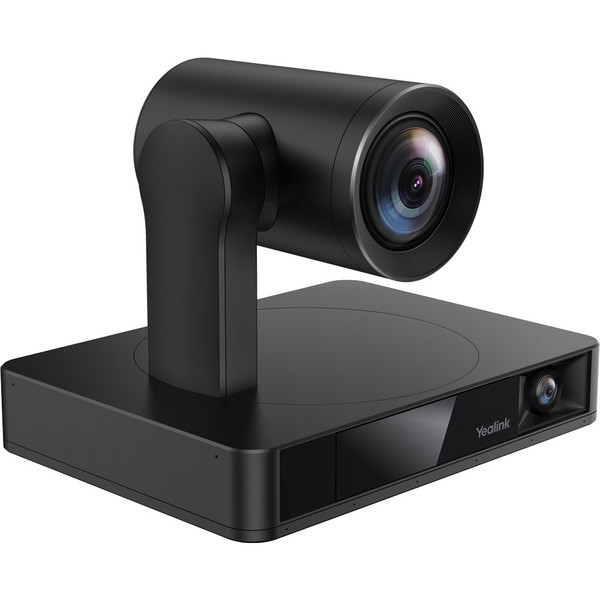

Yealink UVC86 is a PTZ video conferencing camera with 12x optical zoom. As an intelligent camera, it handles numerous automatic, meeting-enhancing features like Speaker Tracking and Presenter Tracking. The camera can pick out individual faces with naturalistic detail and coloration, making everyone look their best on video calls. The bundle comes with two UVC86's for better coverage of extra-large rooms. The cameras are controlled by Yealink AVHub, a scalable Pro AV server. AVHub connects multiple cameras, microphones, and speakers and lets you control their feeds simultaneously. Customize image layout, enable multi-speaker tracking, optimize audio and video feeds, and more. AVHub lets you use the two cameras included in this kit with plenty of room to expand the system.

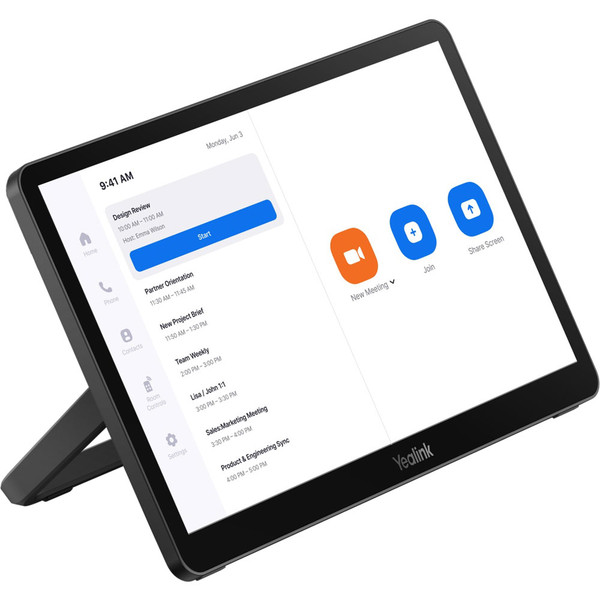

Yealink MCore 4 is a Windows mini-PC with the power to handle advanced AI features. MCore 4 is a dedicated computer for the conference room, always there to run the Zoom Rooms software, which comes pre-loaded. With an Intel Ultra5 125H CPU and numerous connectors for your devices, it's a mini-PC for the professional meeting room. Control the Zoom Rooms meetings and the system as a whole using Yealink MTouch Plus, a large-screen touch console. Familiar to use, MTouch Plus enables one-click conferencing, call management, camera adjustment, content sharing, and more. Yealink BYOD-Extender is a USB adapter for effortlessly using the system's A/V equipment. Yealink RoomSensor completes the system: a ceiling-mounted sensor that connects via Bluetooth and enables automatic system wake-up, occupancy status detection, real-time environmental metrics, and more.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink ZVC S90-C5U Quick Specs:

Yealink UVC86:

• PTZ Camera:
• Sensor: 8 MP Sony
• Field of View:
• Horizontal: 81°
• Vertical: 50°
• Diagonal: 90°
• PTZ:
• Pan: ±100°
• Tilt: +40° to -90°
• Zoom: 12x optical + 1.7x digital = 20.4x total
• Panoramic Camera:
• Sensor: 8 MP Sony
• Field of View:
• Horizontal: 110°
• Vertical: 78°
• Diagonal: 120°
• Physical Interfaces:
• Audio: 3.5 mm line in
• HDMI: 1x HDMI out
• USB: 1x USB-B, 1x USB-A
• VCH: 1x RJ45 for connecting to BYOD-Extender, audio devices or codec

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink AVHub:

• Device Support:
• Cameras: up to 9x Yealink UVC84/UVC86
• Microphones: up to 8x Yealink VCM34/VCM35/VCM38
• SkySound Microphones: up to 4x Yealink CM20/CS10
• Speakers: up to 4x Yealink MSpeaker II
• Physical Interfaces:
• 6.3 mm: 1x line in, 1x line out
• Codec: 1x codec port
• RCA: 1x RCA in, 1x RCA out
• USB: 2x USB-A, 1x USB-B
• VCH: 7x RJ45

Yealink BYOD-Extender:

• USB Cable: 4.92 ft (1.5 m) USB-A
• Physical Connector: 1x VCH port (RJ45)

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink ZVC S90-C5U for Zoom Rooms System Package Contents:

• 2x UVC86 Packages
• MCore 4 Package
• MTouch Plus Package
• AVHub Package
• BYOD-Extender Package
• RoomSensor Package
