Yealink ZVC S98-C5U Zoom Rooms Kit - ZVC S98-C5U-004

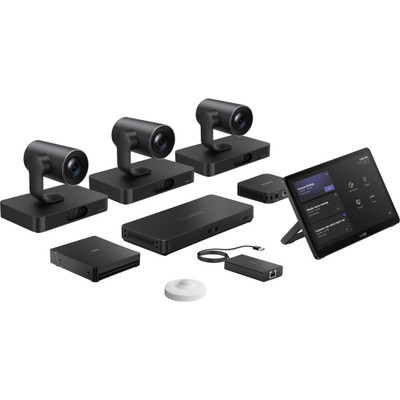

Yealink ZVC S98-C5U Zoom Rooms System is a premium bundle for establishing a professional, multi-camera Zoom Rooms video conferencing system in an extra-large room. ZVC S98-C5U consists of three SmartVision 80 Cameras, MTouch Plus Touch Console, MCore 4 Mini-PC, AVHub A/V Processor, RCH40 E2 Cable Hub, BYOD-Extender, and RoomSensor. This system provides purpose-selected devices that integrate seamlessly with Zoom, plus it's scalable to future-proof your investment.

SmartVision 80 is an intelligent video conferencing solution with mechanical PTZ camera, two telephoto cameras, and one panoramic camera — all in one device. It delivers 20x lossless optical zoom to pick out individual faces with no loss of detail, plus a wide-angle camera for group shots with dual telephoto lens for necessary coverage. As an intelligent camera, it supports AI-enhanced features like IntelliFocus, Presenter Tracking, and more. The bundle includes three SmartVision 80's, so you get exceptional video even in very large spaces like auditoriums, training rooms, and more. The three cameras are managed via AVHub, a Pro AV processor that makes it simple to connect and control multiple cameras, microphones, and speakers to the video conferencing system.

MTouch Plus is a touch console for the Zoom video conferencing system. This 11.6-inch tablet with integrated stand is a central control station with the Zoom Rooms app already installed. The touch-based interface is familiar and simple to use. Manage meetings and more on MTouch Plus. MCore 4 is an updated mini-PC that provides the Zoom meeting room with an always-available computer for running the software. It comes with the Zoom Rooms app preloaded. By having a mini-PC installed in the meeting room, you have guaranteed professional performance and eliminate the need for someone to bring in a laptop to run a Zoom meeting.

The bundle also includes RCH40 E2, which is a Gigabit PoE+ network switch that can connect and power your devices. BYOD-Extender is a USB adapter that makes your video conferencing system more flexible and simplifies control of the AV equipment. RoomSensor is a Bluetooth-enabled sensor that can automatically wake up the system, adding the final touch to a truly professional Zoom Rooms system.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Yealink ZVC S98-C5U-004 Quick Specs:

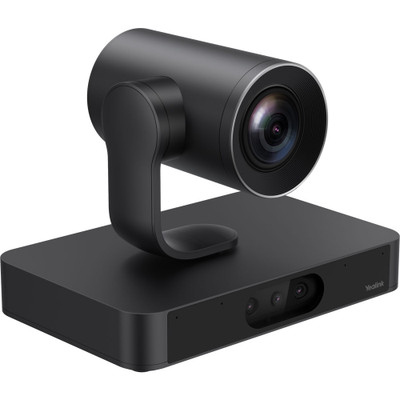

Yealink SmartVision 80:

• Field of View:
• PTZ: 61.5° H x 36° V
• Panoramic: 98° H x 82° V
• Telephoto: 41.6° H x 32° V
• Zoom: 20x optical (PTZ camera)
• Physical Connectors:
• 3.5 mm: 1x line in, 1x line out
• Ethernet: 1x RJ45
• HDMI: 1x HDMI out
• Power: 1x power port
• USB: 1x USB-A 2.0, 1x USB-B 3.0
• VCH: 2x RJ45

Yealink MCore 4:

• CPU: Intel Ultra5 125H
• RAM: 16 GB (2x 8 GB) DDR5
• Storage: 256 GB SSD
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Physical Connectors:
• Ethernet: 1x Gigabit RJ45, 1x LAN port
• HDMI: 1x HDMI 2.1 out, 2x HDMI 2.0 out, 1x HDMI in
• Headphone: 1x 3.5 mm
• MTouch: 1x RJ45
• Power: 1x power port
• USB: 4x USB-A 3.0

Yealink MTouch Plus:

• Display: 11.6 in (1920 x 1080 px) touchscreen
• Bluetooth: 5.2
• Wi-Fi: Wi-Fi 6 (802.11ax)
• Physical Interfaces:
• Headset: 1x 3.5 mm
• USB: 2x USB-A (1x connects to WPP30), 2x USB-C
• RJ45: 1x MCore, 1x Ext Touch

Yealink AVHub:

• Device Support:
• Cameras: up to 9x Yealink UVC84/UVC86
• Microphones: up to 8x Yealink VCM34/VCM35/VCM38
• SkySound Microphones: up to 4x Yealink CM20/CS10
• Speakers: up to 4x Yealink MSpeaker II
• Physical Interfaces:
• 6.3 mm: 1x line in, 1x line out
• Codec: 1x codec port
• RCA: 1x RCA in, 1x RCA out
• USB: 2x USB-A, 1x USB-B
• VCH: 7x RJ45

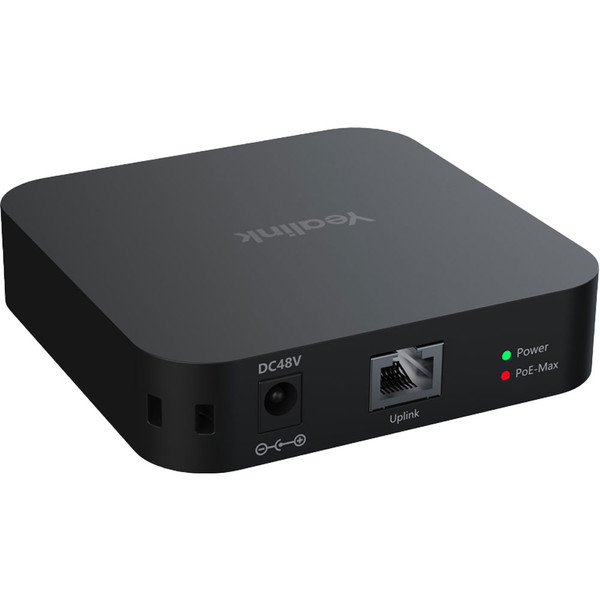

Yealink RCH40 E2:

• Ethernet Ports: 4x Gigabit RJ45 PoE
• PoE (Power Over Ethernet): 802.3af
• PoE Budget: 90 W (up to 30 W per port)

Yealink BYOD-Extender:

• USB Cable: 4.92 ft (1.5 m) USB-A
• Physical Connector: 1x VCH port (RJ45)

Yealink RoomSensor:

• Detection Technology: passive infrared (PIR)
• PIR Detection Angle: 120°
• PIR Coverage (at 9.8 ft Mounting Height):
• Major Motion: 19.7 ft
• Minor Motion: 9.8 ft
• Bluetooth: 5.2
• Bluetooth Range: up to 100 ft
• Durability Rating: IP20

Yealink ZVC S98-C5U-004 Zoom Rooms Kit Package Contents:

• 3x SmartVision 80 Packages
• MCore 4 Package
• MTouch Plus Package
• AVHub Package
• RCH40 E2 Package
• BYOD-Extender Package
• RoomSensor Package

Yealink ZVC S98-C5U Documentation:

• Yealink ZVC S98-C5U Datasheet
