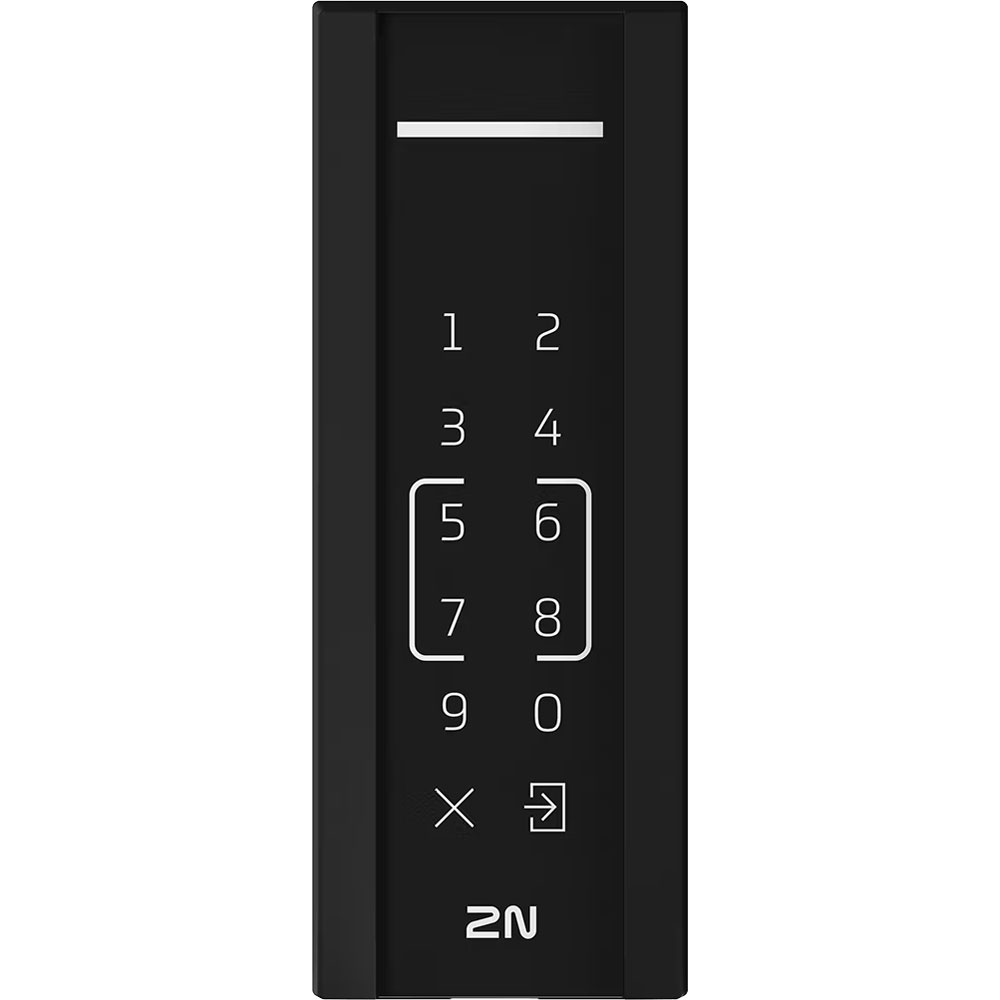

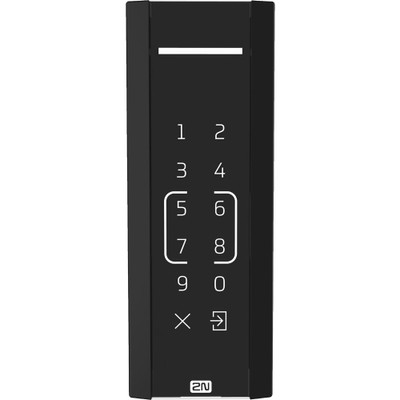

2N Access Unit M Touch Keypad and RFID - 02912-001

2N Access Unit M is a slimline door entry control solution for difficult locations like door frames that only provide a narrow device installation option. This model of Access Unit M supports RFID for contactless entry and has a touch keypad for entering codes. As an RFID reader, it supports contactless entry via a generous range of 125 kHz and 13.56 MHz RFID cards and keyfobs, including Secured RFID options. It also supports NFC for compatible smartphones. As a capacitive touch keypad, it is familiar solution for entering premises via number codes. It offers regular, automatic calibration for improved accuracy and is designed to reject false touches when wet. The display is backlit, uses multi-colored LEDs, and provides acoustic response for touches, making it suitable for usage in all sorts of situations.

Access Unit M is an indoor or outdoor solution. It has in-built controller to let it function without communicating with a server. Its 10-foot Ethernet pigtail makes it simple to connect to your IP infrastructure. Power it via PoE (Power Over Ethernet). Access Unit M meets the IP55 and IK07 durability standards.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

2N 02912-001 Quick Specs:

• RFID: 125 kHz, 13.56 MHz
• Cable Connections:
• Ethernet: 10/100 RJ45 PoE Male (9.84 ft)
• Relay: for connection of non-critical devices only (1.15 ft)
• Input 1/2: for departure button, open door sensor, ESS etc. connection (1.15 ft)
• External Power: for 12 V / 1 A external power supply (1.15 ft)
• Active Output: for the connection of the Security Relay or an electric lock (1.15 ft)
• PoE (Power Over Ethernet): 802.3af Class 0 (12.95 W)
• Audio: 1 W for buzzer
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP55, IK07

2N Access Unit M Touch Keypad and RFID Package Contents:

• Access Unit M
• Certificate of Ownership
• Quick Start Manual
• Metal Wall Holder (screwed to device)
• 2x 8 x 40 mm Dowels
• 2x 4.5 x 40 mm Flat-Head Screws with Washers
• M 3 x 8 mm Stainless Steel Lens Head Screw
• T10 and T20 Dual Torx Key
• 2x External Power and ALARM2 Button Terminals

2N Access Unit M Documentation:

• 2N Access Unit M Datasheet
