CyberData 011233 SIP Paging Adapter

CyberData 011233 is an adapter for bringing analog paging equipment into a SIP paging system. As a SIP paging adapter, 011233 can be configured for two distinct SIP extensions, one for passing audio to an analog output using a handset and one for playing a bell to be used as a night ringer. It supports audio prioritization and up to 10 multicast paging groups.

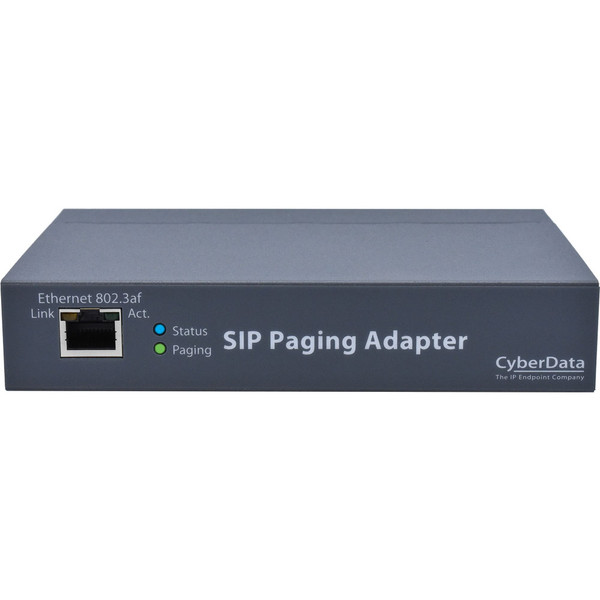

011233 is a SIP device and is compatible with an enormous range of VoIP phone systems and IP paging systems, including both premise-based and cloud-based platforms. As an analog paging adapter, it is compatible with an enormous range of analog paging amplifiers. Configure and manage the adapter through the network using its browser-based interface. 011233 connects to the network via its RJ45 Ethernet port that supports PoE power input. It has two RCA connectors — one line in, one line out — and a 7-pin page port output connector.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

CyberData 011233 Quick Specs:

• VoIP Protocol: SIP
• Ethernet Port: 1x 10/100 RJ45
• RCA: 1x line in, 1x line out
• Page Port Output: 7-pin interface
• Power Input: 802.3af PoE or 48 VDC power supply (not included)

CyberData 011233 SIP Paging Adapter Package Contents:

• Paging Adapter
• Mounting Template
• Mounting Kit

CyberData 011233 Documentation:

• CyberData 011233 Datasheet
• CyberData 011233 Quick Start Guide
• CyberData 011233 Quick Reference Placemat
