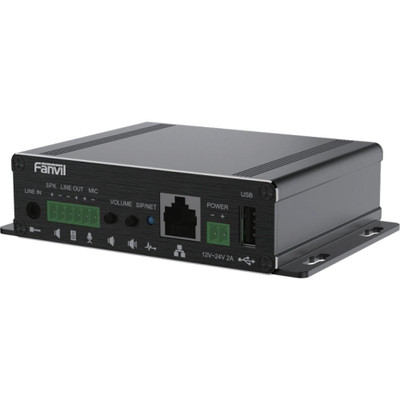

Fanvil PA3 SIP Paging Gateway

Fanvil PA3 is a SIP adapter to connect speakers to an IP paging system — improve the PA system. PA3 works for broadcasts, background music, intercoms and more — use it in schools, hospitals, retail stores and more. The SIP paging gateway offers 10~30 W mono power output as a speaker amplifier to drive the attached speaker — powerful.

PA3 is a full IP solution with network connectivity and PoE power support — streamline your public address (PA) speaker installation. Use a TF Card or USB stick to store data and enable offline broadcasting — simple and secure. It supports Multicast. Highly compact, PA3 fits in the palm of your hand — install it out of sight.

© 2021 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Fanvil PA3 Quick Specs:

• Communications Protocol: SIP
• SIP Lines: 2
• Audio Codecs: G.711u/a, G.729A/B, G.722, Opus
• Physical Connectors:
• Ethernet: 1x 10/100 PoE
• USB: 1x USB-A 2.0
• TF Card: 1
• Audio: 1x line in, 1x line out
• Microphone: 1
• Passive Speaker: 1
• DSS Keys: 2
• Power: 1x DC input
• PoE: Class 4
• Dimensions:
• Height: 1.26 in
• Width: 4.92 in
• Depth: 3.31 in

Fanvil PA3 SIP Paging Gateway Package Contents:

• PA3 Gateway

Fanvil PA3 IP Paging Adapter Documentation:

• Fanvil PA3 Datasheet
• Fanvil PA3 Quick Installation Guide
• Fanvil PA3 User Manual
