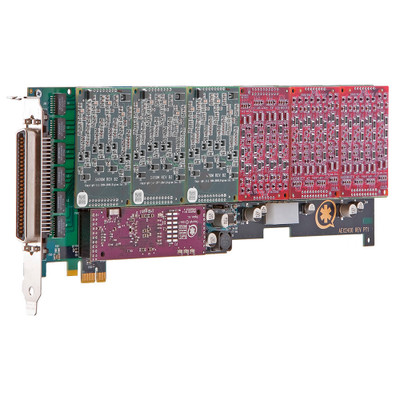

Digium TDM2411B 4 FXS 4 FXO PCI Card

No reviews yet Write a Review
SKU:
tdm2411b
Condition:
New
Availability:
No Longer Available
Warranty:
5 Years

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

Digium TDM2411B 4 FXS 4 FXO PCI Card

The Digium TDM2411B card is a full-length, 32-bit, 33MHz, PCI 2.2-compliant card that includes 1 quad-port FXO and 1 quad-port FXS module for a total of 4 FXO ports and 4 FXS ports. It supports up to 6 quad-port FXO or FXS modules, for a total of 24 maximum channels. The TDM2411B also includes a hardware echo cancellation module. The TDM2411B allows you to connect analog telephone lines through a PC and can be used in conjunction with Asterisk.

By using Digium's TDM hardware, Asterisk PBX software and PCs, users are able to create a SME or SOS phone environment that can include all the sophisticated features of a high-end PBX/Voicemail platform. The TDM2411B uses a bus-mastering PCI interface chip, and with Digium's patent-pending VoiceBus technology to eliminate the need for a separate channel bank and T1 interface cards. With interchangeable quad-FXO and quad-FXS modules to let you create any combination of interfaces. With optional hardware echo cancellation, you can take advantage of 256 taps of echo cancellation on both FXO and FXS interfaces. The solution is easy to scale by addition additional TDM2400 series cards.

Digium TDM2411B Features:

  • Base Card: TDM2400P
  • Number of FXO Modules: 1
  • Number of FXS Modules: 1
  • Maximum Ports: 24
  • Echo-Cancellation: No
  • Slot Type: PCI

Warranty:
5 Years
