Digium TDM2414E - 4 FXS & 16 FXO Ports

Digium TDM2414E

Digium tdm2414e

Digium TDM2414E 16 FXO 4 FXS Card
List Price: $1,475.00
Price: $1,253.75
Product Condition: New. Factory Sealed.
Warranty: 5-year Manufacturer
Brand: Digium
Manufacturer Part Number: tdm2414e

Stock Status : In Stock

Availability: Ships the Same Business Day


Digium TDM2414E

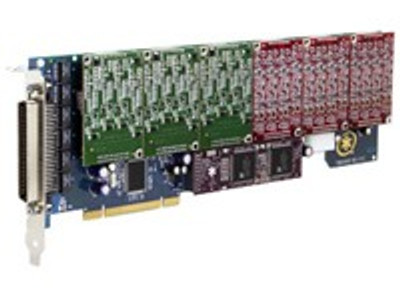

The Digium TDM2414E card is a full-length, 32-bit, 33MHz, PCI 2.2-compliant card that includes 4 quad-port FXO and 1 quad-port FXS modules for a total of 16 FXO ports and 4 FXS ports. It supports up to 6 quad-port FXO or FXS modules, for a total of 24 maximum channels. The TDM2414E also includes a hardware echo cancellation module. The TDM2414E allows you to connect analog telephone lines through a PC and can be used in conjunction with Asterisk. The TDM2414E also comes with a hardware echo cancellation module.

By using Digium's TDM hardware, Asterisk PBX software and PCs, users are able to create a SME or SOS phone environment that can include all the sophisticated features of a high-end PBX/Voicemail platform. The TDM2414E uses a bus-mastering PCI interface chip, and with Digium's patent-pending VoiceBus technology to eliminate the need for a separate channel bank and T1 interface cards. With interchangeable quad-FXO and quad-FXS modules to let you create any combination of interfaces. With optional hardware echo cancellation, you can take advantage of 256 taps of echo cancellation on both FXO and FXS interfaces. The solution is easy to scale by addition additional TDM2400 series cards.

Digium TDM2414E Features:

  • Base Card: TDM2400P
  • Number of FXO Modules: 4
  • Number of FXS Modules: 1
  • Maximum Ports: 24
  • Echo-Cancellation: Yes
  • Slot Type: PCI
