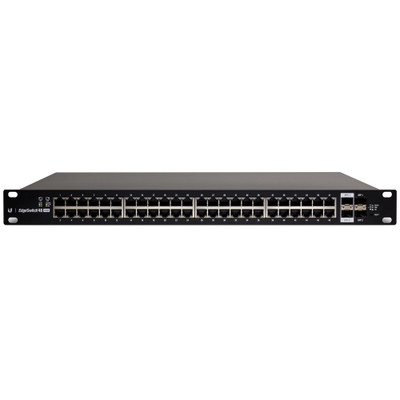

Ubiquiti EdgeSwitch 48 750W 48-Port Switch

Intelligent switching and routing technology lend the Ubiquiti EdgeSwitch 48 carrier-grade performance and reliability. The switch supports a plethora of Layer 2 and Layer 3 management, security and traffic capabilities. A total of 48 gigabit RJ45 ports, two SFP ports and two SFP+ ports outfit the switchâ interface. An additional RJ45 port provides serial connectivity. Power PoE-enabled devices through 802.3af/at or 24V passive PoE output.

Management is achieved through the serial port or the EdgeOS software. Monitor network traffic and configure the Ubiquiti ES-48-750W switch to precisely match your networked devices’ requirements. The high-performance hardware and software provide robust and future-proof support for any type of network.

Ubiquiti ES-48-750W 48-Port Switch Quick Specs:

• Total Number of Ports: 48x RJ45, 2x SFP, 2x SFP+, 1x RJ45 Serial
• Ethernet Ports/Speed: 48x 10/100/1000 RJ45
• SFP Ports/Speed: 2x 1 Gbps SFP, 2x 1/10 Gbps SFP+
• Ports with PoE: 24
• 802.3af/at compliant (max. 34.2W/port PoE+)
• Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• QoS: supported
• Management: serial port or web UI
• Dimensions: 19.09â x 1.72â x 14.75â
• Mounting: rack mountable, 1U chassis
• Power Consumption: max. 750W

Ubiquiti Networks ES-48-750W Switch Package Contents:

• Ubiquiti EdgeSwitch ES-48-750W switch
• Internal power supply
• Power cord
• 4x mounting screws
• 4x cage nuts
• Quick start guide
