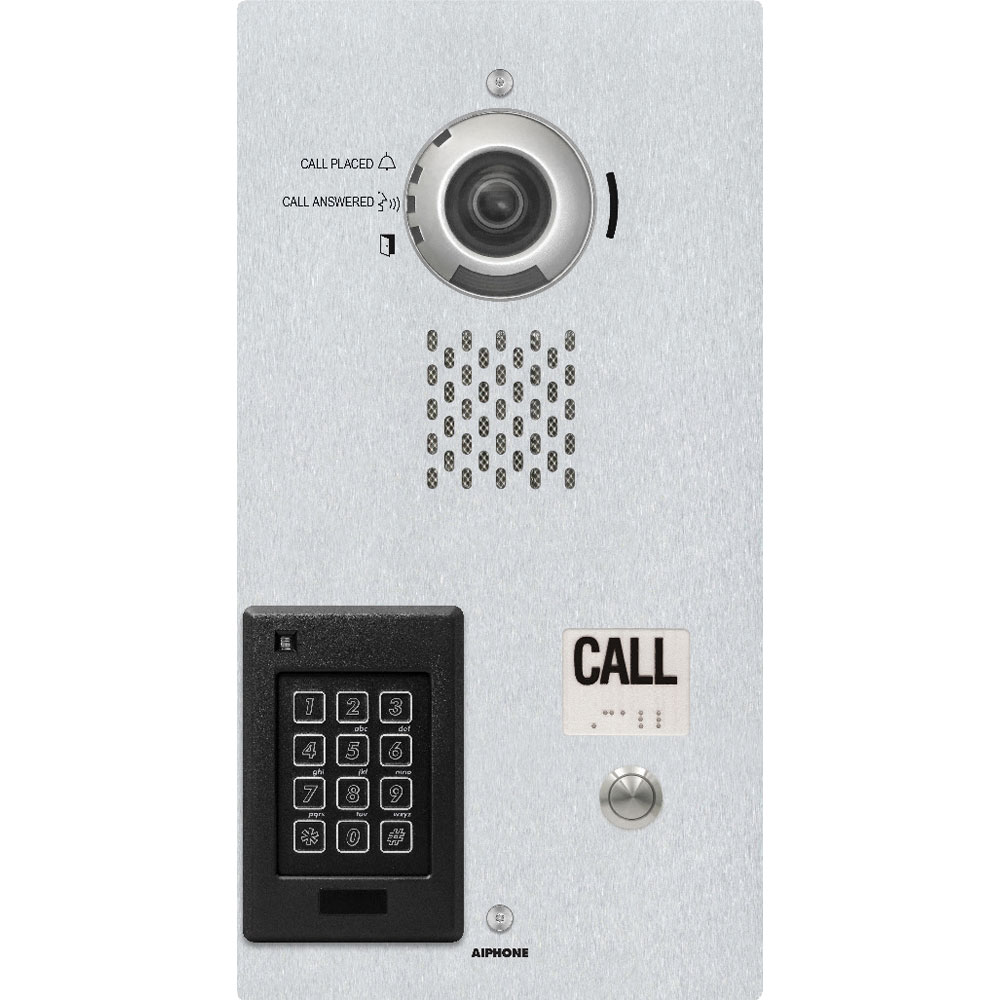

Aiphone IX-DVF-10KP Flush Mount IP Video Door Station with Proximity Reader and Access Keypad

Aiphone IX-DVF-10KP is an IP door station that combines an HD camera, proximity card reader, and access keypad in one. Designed for flush-mounting, IX-DVF-10KP has a weather- and vandal-resistant stainless steel front panel. Use IX-DVF-10KP indoors or outdoors. As a proximity card reader, it enables contactless entry using compatible 125 kHz RFID cards and keyfobs, including models with Aiphone 40-bit credentials and select HID, AWID, and Pyramid credential. The intercom's access keypad enables entry via PIN codes and the dialing of extensions. In addition, the door station has a standard call button with clearly written Call placard with Braille writing for accessibility. Its 1.23 MP camera provides clear video of people to improve security.

IX-DVF-10KP is an IP door station that runs SIP and is ONVIF Profile S compliant, making it interoperable with numerous standards-based systems and devices. It has two contact outputs, six trigger inputs (one is used by the call button), and a microSD card slot for recording audio and video locally. Built for long-lasting durability, it meets the IP65 and IK08 Standards and has an extended operating temperature range of -31°F to 140°F. The package includes a flush mount box and tamper-resistant security screws.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Aiphone IX-DVF-10KP Quick Specs:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• Camera: 1/3-in CMOS 1.23 MP
• Proximity Reader: 125 kHz
• Ethernet Port: RJ45 PoE
• PoE: up to 802.3at Type 2 PoE+
• Operating Temperature Range: -31°F to 140°F
• Durability Standards: IP65, IK08
• ONVIF: Profile S

Aiphone IX-DVF-10KP Flush Mount IP Video Door Station with Proximity Reader and Access Keypad Package Contents:

• Door Station
• Security Driver
• Flush Mount Back Box and Tamper-Resistant Screws

Aiphone IX-DVF-10KP Documentation:

• Aiphone IX-DVF-10KP Datasheet
• Aiphone IX-DVF-10KP Installation and Programming Guide
