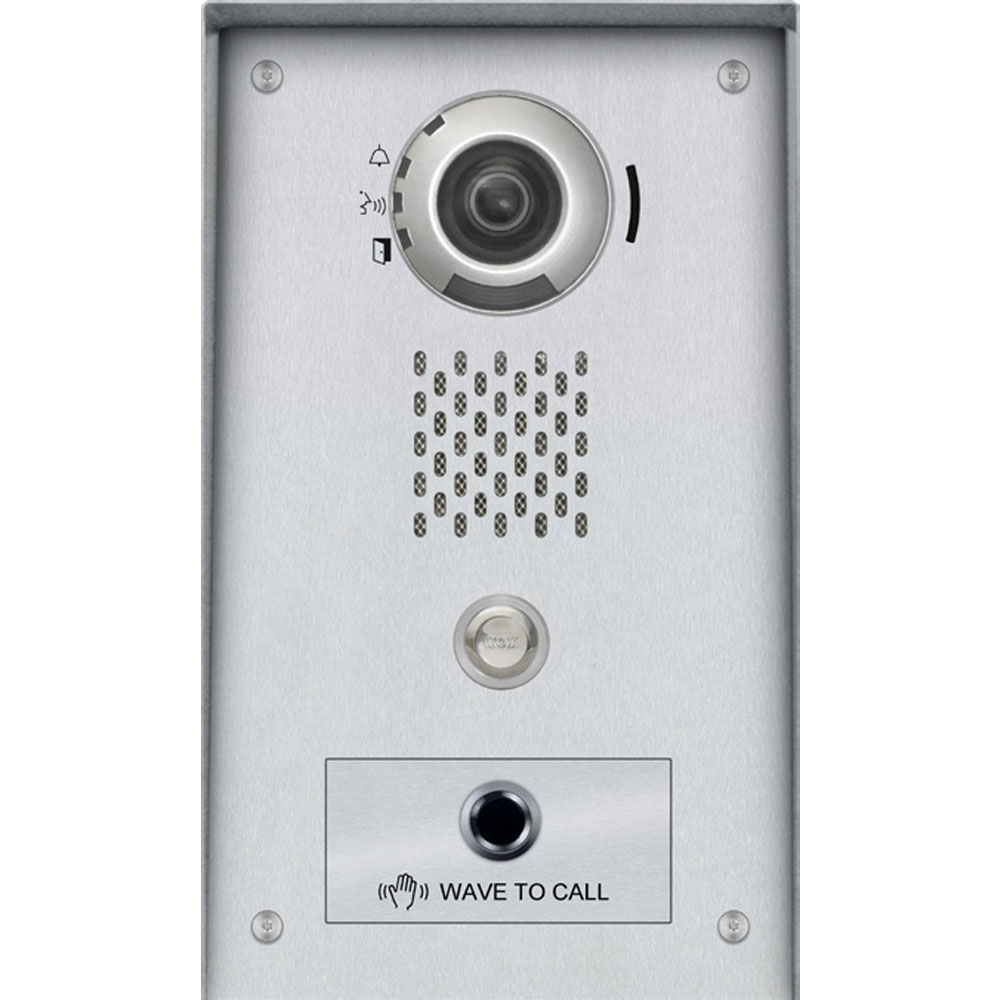

Aiphone IX-DVF-HW Surface Mount IP Video Door Station with Hand Wave Call Sensor

Aiphone IX-DVF-HW is a video IP door station with hand wave call sensor for no-touch operation. Designed for surface-mounting and with weather-resistant construction, the door station gives the user two methods of calling: a single call button or a touchless call sensor with clear Wave To Call verbiage. The video door station has a built-in 1.23 MP camera, letting you see who's at the intercom. Program IX-DVF-HW to call up to 20 different stations and customize the sounds to indicate clearly to the user that a call is being placed, the door has been released, and so on. Visual indicators also let people know what's happening: door release, communication, and more.

IX-DVF-HW is a network-connected door station that connects to the network via Ethernet cable and runs SIP for broad interoperability. Because it's ONVIF Profile S compliant, it is also interoperable for video streaming using third-party devices. Connect a peripheral paging or communication device using the 600-Ohm output. It has two contact outputs for a door strike, plus six trigger inputs. And you store audio and video in the device itself on a microSD card (not included).

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Aiphone IX-DVF-HW Quick Specs:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• Camera: 1/3-in CMOS 1.23 MP
• Ethernet Port: RJ45 PoE
• PoE: up to 802.3at Type 2 PoE+
• Operating Temperature Range: -4°F to 131°F
• ONVIF: Profile S

Aiphone IX-DVF-HW Surface Mount IP Video Door Station with Hand Wave Call Sensor Package Contents:

• Door Station
• PS-PoE
• Surface Mount Box
• 4x Speed Nuts for Panel Mounting
• 4x Screws for Panel Mounting
• 1 ft Patch Cable

Aiphone IX-DVF-HW Documentation:

• Aiphone IX-DVF-HW Datasheet
• Aiphone IX-DVF-HW Instructions
