Aiphone IX-MV7-HW Touchscreen 720p Video IP Master Station with Handset, White

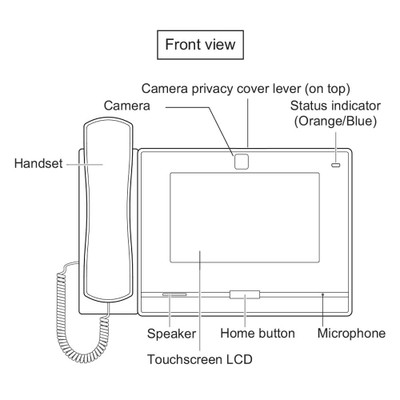

Aiphone IX-MV7-HW is an IP master station that offers more than intercom and access control. You also get 720p point-to-point video conferencing, receptionist options, IP security camera integration, and more. IX-MV7-HW features a large 7" touchscreen display, handset, and integrated 720p camera. The camera with privacy shutter works both for video conferencing with another Aiphone master station and for security at entry points. Using the large color display, you can view video from a connected master station or a compatible IP camera. IX-MV7-HW supports picture-in-picture mode, so you can see both video feeds at once. Switch between them by tapping. The touchscreen display makes operating IX-MV7-HW as intuitive as using a smartphone.

Aiphone IX-MV7-HW lets you communicate hands-free like an intercom or speakerphone, using push-to-talk, or through the handset. It supports SIP and integrates with Cisco Unified Call Manager. It has a microSD card slot to let you record audio and video in the device. IX-MV7-HW supports PoE and is ONVIF Profile S compliant for integration with standards-based IP security cameras. Aiphone IX-MV7-HW comes in white.

Aiphone IX-MV7-HW IP Master Station Quick Specs:

  • Connectivity: IP/VoIP
  • Communications Protocol: SIP
  • Ethernet Port: 1x 10/100
  • PoE: 802.3af Class 0
  • Additional Interfaces:
    • 3.5mm stereo mini jack
    • microSD card slot
    • 2x contact outputs
    • 4x trigger inputs
  • Display: 7" TFT LCD touchscreen
  • Speaker: 8-Ohm 1/2-Watt
  • Camera: 1/3" CMOS 720p color
  • Video Codecs: H.264/AVC, Motion JPEG
  • Audio Codecs: G.711μ/a, G.722
  • ONVIF: Profile S

Aiphone IX-MV7-HW SIP Video Master Station Package Contents:

  • Aiphone IX-MV7-HW IP master station in white
  • Desktop stand and hardware
  • Mounting bracket and hardware
  • Installation manual
  • Product warranty

2 Years
