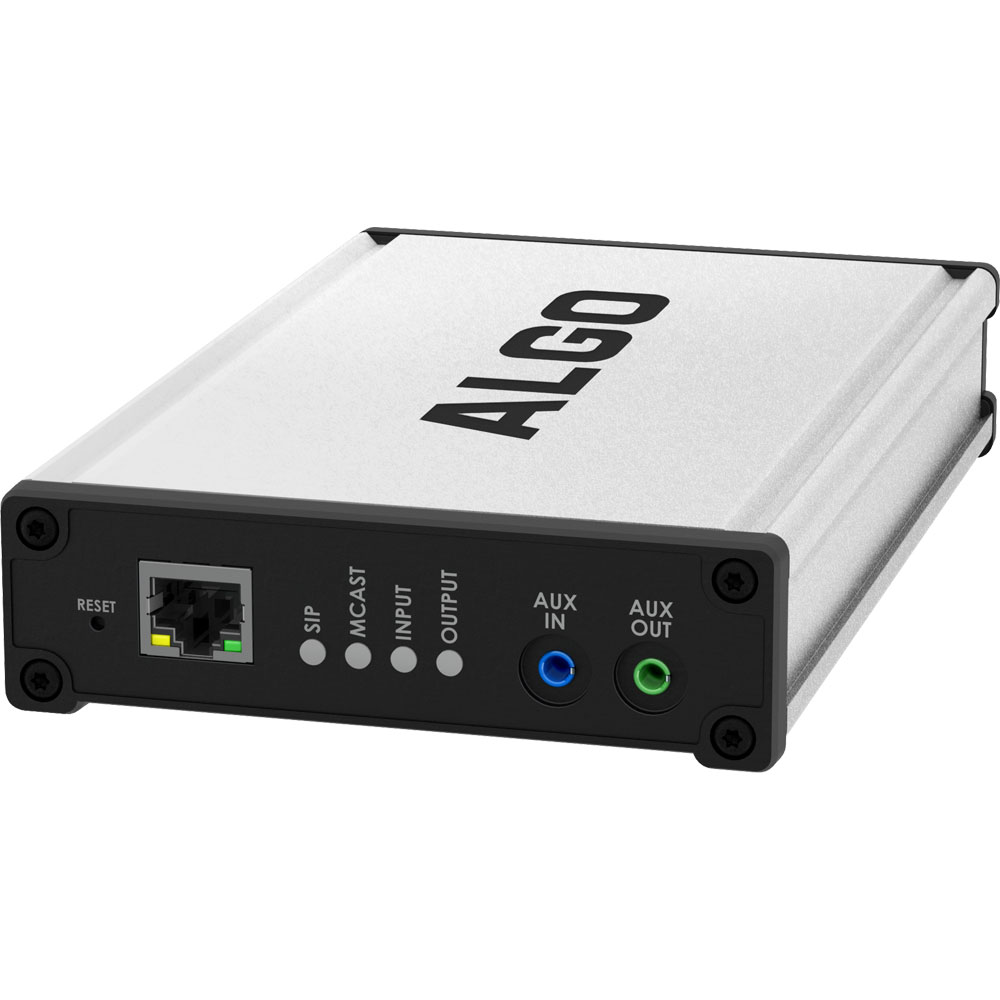

Algo 8312 Expanded IP Paging Adapter

Algo 8312 is a paging adapter that bridges unified communications platforms, paging systems, compatible handheld radios, and automated communications. 8312 is a versatile and practical adapter that can integrate voice paging from premise or cloud-based UC systems with scheduled events, sensor-triggered actions, legacy amplifiers, smart relay controls, handheld radios, and more. By combining disparate devices and systems into a single, unified system, it simplifies workflows and deployment while enabling extensive communication optionality.

8312 is a SIP adapter that's compatible with a wide range of UC platforms and standards-based IP PBXs. It has 12 relay sensor inputs and one smart relay for use with event-driven workflows. Connect a wide range of devices like call buttons, weight sensors, switches, and more to initiate a wide range of actions like broadcasting pre-recorded messages, activating a strobe, and more. Power 8312 via PoE.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Algo 8312 Quick Specs:

• SIP Extensions:
• Page: 50
• Emergency Alert: 10
• Ring: 10

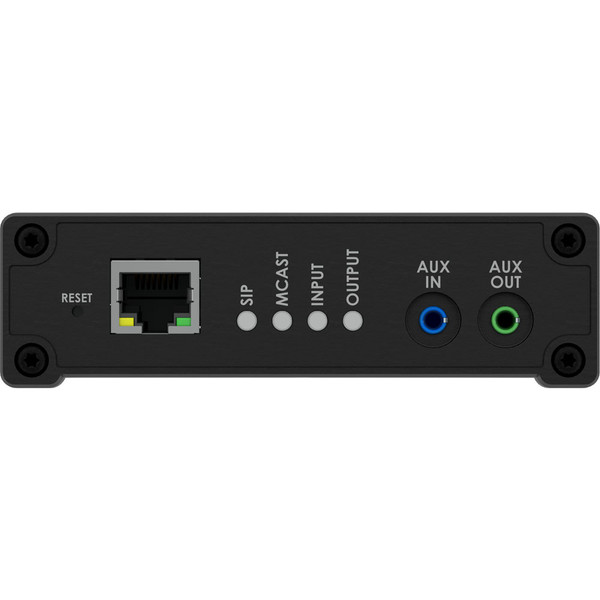

• Hardware Interfaces (Front):
• Ethernet: 1x RJ45 PoE
• AUX: 1x 3.5 mm AUX in, 1x 3.5 mm AUX out
• Hardware Interfaces (Back):
• Page Audio Out: terminal block or 3.5 mm jack
• Page Relay: relay output
• Line In: terminal block to external audio source
• Smart Relay: dry-contact input that supports fault detection
• Sensor Inputs: 12x dry-contact inputs
• Radio: RJ12 for Motorola Curve radio input/output
• USB: USB-A (reserved for future use)
• Power: 802.3af Class 0 PoE (48 V, 15.4 W)

Algo 8312 Expanded IP Paging Adapter Package Contents:

• Adapter
• Network Cable
• Wall Mount Bracket
• 4x Mounting Screws
• 2x Pluggable Terminal Blocks

Algo 8312 Documentation:

• Algo 8312 Product Sheet
