Axis A1214 Network Door Controller Kit - 02684-001

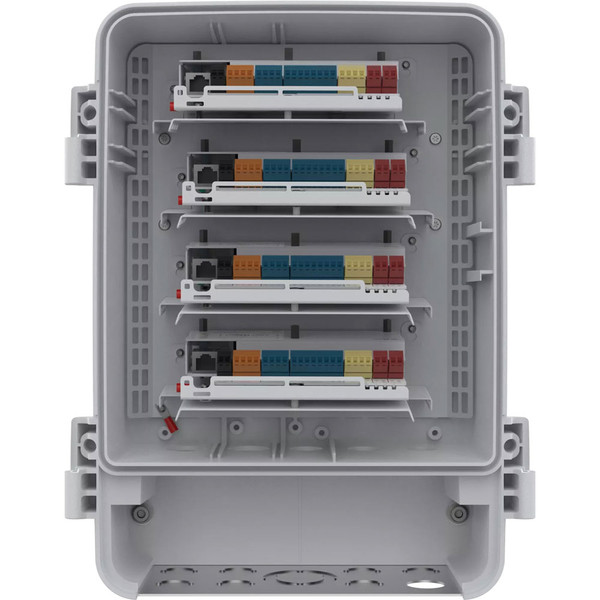

Axis A1214 is a simple solution for controlling up to four doors. A1214 consists of four Axis A1210-B Door Controllers mounted on an Axis TA1601 Mounting Plate in an Axis TQ1808-VE Surveillance Cabinet. Each A1210 controller has two reader connections and a Form C relay to power the door lock. Each controller stores up to 250,000 credentials and 250,000 event logs. They work with numerous types of secure authentication methods: RFID cards/keyfobs, PIN codes, dynamic QR codes, license plates, and more.

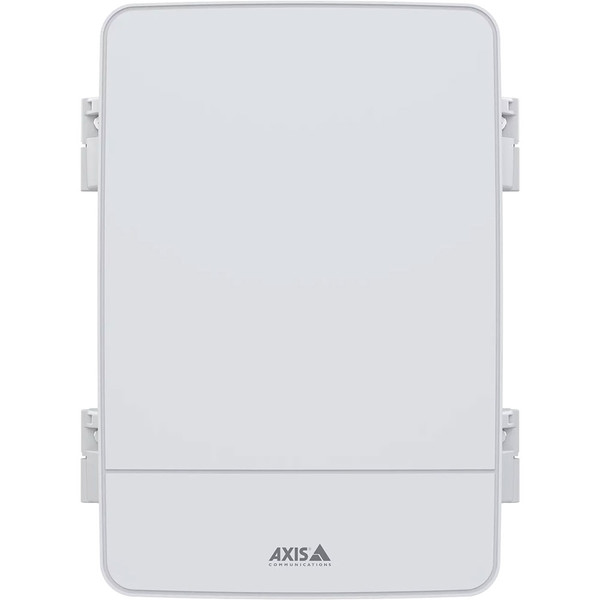

A1214 integrates seamlessly with Axis end-to-end solutions, working with both small- and large-scale deployments. It's easily scalable to meet changing demands. Cost-effective and simple to install, it handles everything related to door access, even if the network is down: intelligence on the edge. The TQ1808-VE cabinet provides professional-grade protection. It's vandal-resistant, and meets the IP66, IK10, and NEMA 4X Standards.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis A1214 Quick Specs:

• Reader Support (Per Controller):
• Up to 2 SDP readers (multi-drop)
• 1 Wiegand reader
• Up to 16 Axis A4612 Network Bluetooth Readers
• Door Support (Per Controller): 1 wired door
• Durability Standards (Cabinet): IP66, IK10, NEMA 4x

Axis A1214 Network Door Controller Kit Package Contents:

• Installation Guide
• Connector Kit (Mounted)
• Grounding Kit
• Cable Ties
• Pre-Mounted Cable Gaskets
• Pre-Mounted DIN Rail
• Cable Clamps
• Cable Straps
• Power Cover
• Device Mounting Bracket

Axis A1214 Documentation:

• Axis A1214 Datasheet
• Axis A1214 Installation Guide
• Axis A1214 Electrical Wiring Drawings
