Axis C1720 Dual-Sided Network Display Speaker - 02960-001

Axis C1720 is a dual-sided, three-in-one paging and public notification device. It combines two displays, two speakers, and a single strobe light. Perfect for indoor installation in corridors, hallways, public spaces, and more, C1720 is a powerful paging speaker with dual 3-inch dynamic cone speakers that fire in opposite directions for expansive coverage. Its 20 W Class D amplifier powers the speakers, making it suitable for any paging system application: voice paging, background music, bell ringing, and emergency sirens. C1720 has a built-in microphone and supports two-way audio, as well. As a SIP speaker, it can be integrated with a wide range of VoIP systems and cloud-based services, including Webex and Zoom. It also works with a number of mass notification platforms, including Singlewire InformaCast. And because it's an Axis product, you can also integrate it with network security cameras.

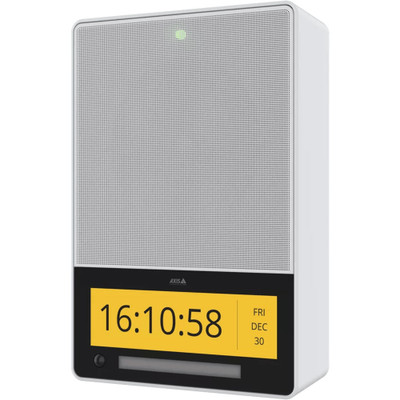

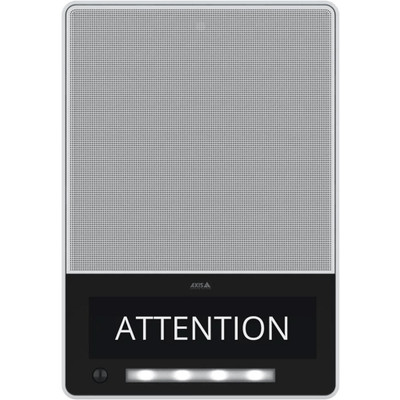

As a dual-sided digital sign, C1720 has two 8.8-inch displays. They can show the time and date or other messages. They also are excellent for showing emergency notifications in critical situations. C1720 adjusts its brightness automatically to suit changing ambient light levels. The display's color, font, and text, including text scrolling patterns, are completely customizable. C1720 also has a built-in strobe light strip on the bottom of the device. This strobe light flashes brightly when triggered, providing a visual alert in critical scenarios or improving accessibility for hearing-challenged individuals. The strobe light color and flashing pattern are customizable. Connect C1720 to the network via an Ethernet cable and power it via PoE (Power Over Ethernet).

Note: Axis C1720 can be wall-mounted or ceiling-mounted. The mounts are not included with C1720. To mount C1720 on a wall, use the Axis TC1604 Wall Mount (03185-001). To mount C1720 on the ceiling, use the Axis TC1605 Ceiling Mount (03186-001).

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis C1720 Quick Specs:

• Speakers: 2x 3 in dynamic cone
• Speaker Coverage Pattern: 240° H x 280° V
• Amplifier: 20 W Class D
• Displays: 2x 8.8 in (1920 x 480 px) color LCD
• Microphone: built-in (can be disabled)
• PIR Sensor Range: up to 33 ft (10 m)
• Internal Storage Support: microSD, microSDHC, microSDXC
• Physical Connectors:
• Ethernet: 1x RJ45 PoE
• 3.5 mm: 1x audio in
• RCA: 1x RCA audio out
• I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os
• USB: 1x USB-A 2.0 (for future use)
• PoE (Power Over Ethernet): 802.3at Class 4 / 802.3bt Class 6
• Durability Rating: IP40

Axis C1720 Network Display Speaker Package Contents:

• Network Display Speaker
• 4-pin Connector
• Installation Guide
• Owner Authentication Key

Axis C1720 Documentation:

• Axis C1720 Datasheet
• Axis C1720 Installation Guide
