Axis C1510 Network Pendant Speaker - 02389-001

Axis C1510 is a large, IP pendant speaker for indoor installation in locations with tall ceilings, such as airports, retail stores, lobbies, and more. C1510 is a network speaker that integrates with your video management software (VMS), VoIP phone system, and more. The paging speaker features a 6.5-inch broadband dynamic cone and wide-angle dispersion construction, ensuring that large areas can be covered from a single speaker. It has an internal 7 W Class D amplifier to power the pages with a digital signal processor (DSP) to ensure sound quality is top-notch. C1510 works equally well for live or prerecorded voice broadcasting, background music, alerts, and more.

As an IP paging speaker, C1510 connects to the network via an Ethernet cable. You can power it via POE (Power Over Ethernet), making your installation clean and streamlined. It has a microphone built in, so you can use it as a talk-back (two-way) speaker, or disable the microphone for a one-way speaker.

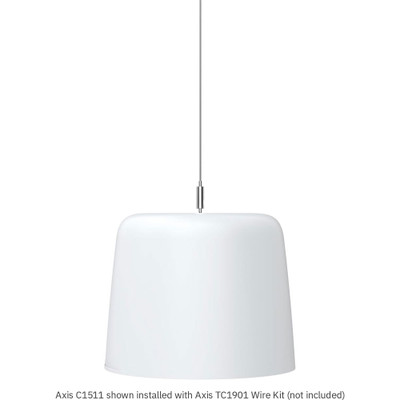

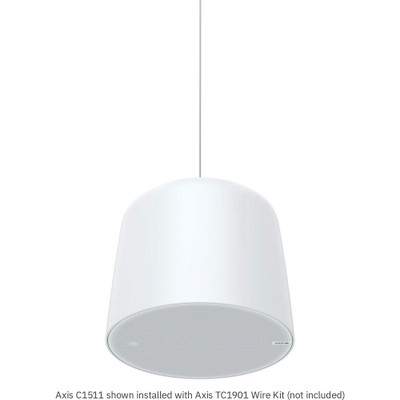

Note: Axis C1510 does not come with a wire for hanging the speaker. Axis recommends the Axis TC1901 Wire Kit (not included) for installation.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis C1510 Quick Specs:

• Connectivity Type: IP/VoIP
• Communications Protocol: SIP
• Speaker: 6.5 in broadband dynamic cone
• Amplifier: built-in 7 W Class D
• Audio: two-way (duplex), one-way (simplex)
• Microphone: built-in (can be disabled)
• Physical Connectors:
• Ethernet: 1x 10/100 RJ45 POE
• I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable I/Os
• POE (Power Over Ethernet): 802.3 af Type 1 Class 3
• Edge Storage: microSD, microSDHC, microSDXC (up to 64 GB)
• Durability Standards: IP40
• Operating Temperature: -22°F to +122°F
• Dimensions:
• Height: 7.1 in
• Diameter: 11.4 in
• Weight: 9.0 lb

Axis C1510 Network Pendant Speaker Package Contents:

• C1510 Speaker

Axis C1510 Documentation:

• Axis C1510 Datasheet
• Axis C1510 Installation Guide
• Axis C1510 Repainting Instructions
