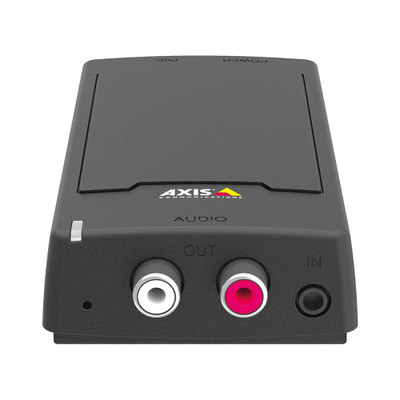

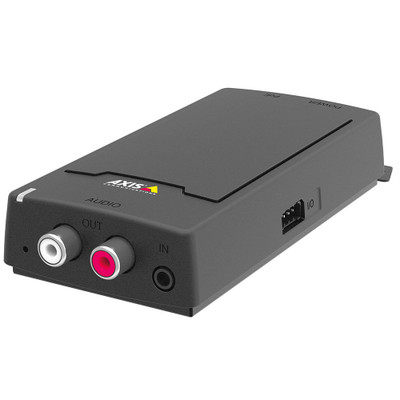

Axis C8110 Network Audio Bridge - 02370-001

Axis C8110 is a device that lets you connect and combine analog and IP audio systems. Using this network audio bridge, you can bring existing analog paging speakers into an IP paging system. C8110 has Axis Audio Manager Edge preinstalled, giving you fine-grained control over the connected analog speakers, including zone management and content scheduling.

As a SIP device, C8110 is an open standard solution, letting you integrate it with third-party devices and systems. It connects to the network via a standard Ethernet cable and can be powered by POE (Power Over Ethernet). It also has I/O connections for buttons and relays.

© 2023 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis C8110 Quick Specs:

• Communications Protocol: SIP
• Audio Frequency Response: 20 Hz to 20 kHz
• Physical Connectors:
• Ethernet: 10/100 RJ45 POE
• I/O: 4-pin 2.5 mm terminal block for 2 configurable I/Os
• Power: 2-pin 5.0 mm terminal block DC input
• Audio: 3 pole 3.5 mm, RCA line out
• POE (Power Over Ethernet): 802.3 af Type 1 Class 2
• Storage: microSD, microSDHC, microSDXC (up to 128 GB)
• Durability Standards: IP20
• Operating Temperature: 4°F to 122°F
• Dimensions:
• Height: 0.94 in
• Width: 2.20 in
• Depth: 5.04 in
• Weight: 0.24 lb

Axis C8110 Network Audio Bridge Package Contents:

• C8110 Audio Bridge
• Installation Guide
• AVHS Authentication Key
• Digital Axis Camera Station License Key
• Power Connector
• I/O Connector
• Hook-and-Loop Fastener

Axis C8110 Documentation:

• Axis C8110 Datasheet
• Axis C8110 Installation Guide
