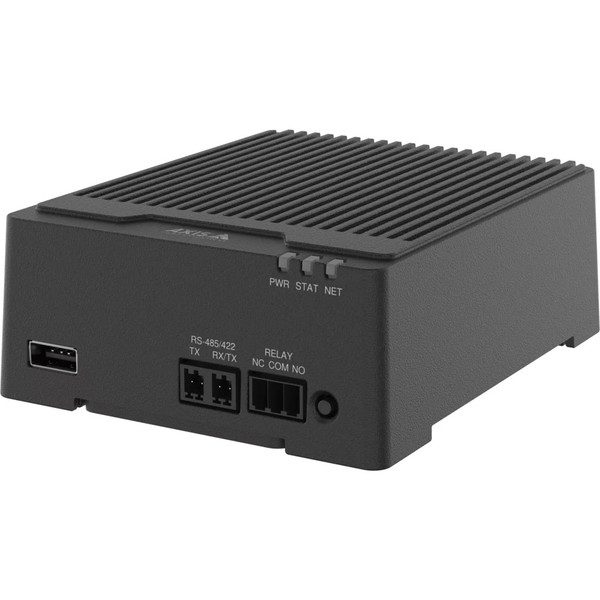

Axis D3110 Mk II Connectivity Hub - 03037-001

Axis D3110 Mk II is a connectivity hub for enabling sensor and audio capability to IP video systems that already have them or that need to be expanded by adding additional sensors or audio devices. D3110 Mk II can connect with a wide range of non-visual sensors, because it has eight supervised configure I/O interfaces. It uses these sensors to automatically trigger alarms or events.

D3110 Mk II also improves your surveillance video with two 3.5 mm audio-in ports and one 3.5 mm audio-out port. It connects with microphone(s) or speaker to enhance the system's awareness beyond the visual. A versatile solution, D3110 Mk II integrates with VAPIX, MQTT, and SIP, as well as the Axis Camera Application Platform. Best of all, it keeps your system secure with Axis Edge Vault, a hardware-based cybersecurity solution.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis D3110 Mk II Quick Specs:

• System on Chip (SoC): NXP i.MX 8M Nano
• Graphic Equalizer: 10-band
• Audio Streaming: two-way (full duplex), simplex (speaker), simplex (microphone)
• Physical Connectors:
• Audio: 2x 3.5 mm input, 1x 3.5 mm output
• Data Transfer: 1x USB-A 2.0
• I/O: 2x 6-pin terminal block, 1x relay terminal block
• Network: 1x 10/100 RJ45 PoE
• Power: DC input
• Serial Communication: RS485/RS422
• Casing: IP30-rated aluminum casing
• Storage: microSD, microSDHC, microSDXC

Axis D3110 Mk II Connectivity Hub Package Contents:

• Connectivity Hub
• Connector Kit
• Installation Guide

Axis D3110 Mk II Documentation:

• Axis D3110 Mk II Datasheet
• Axis D3110 Mk II Installation Guide
