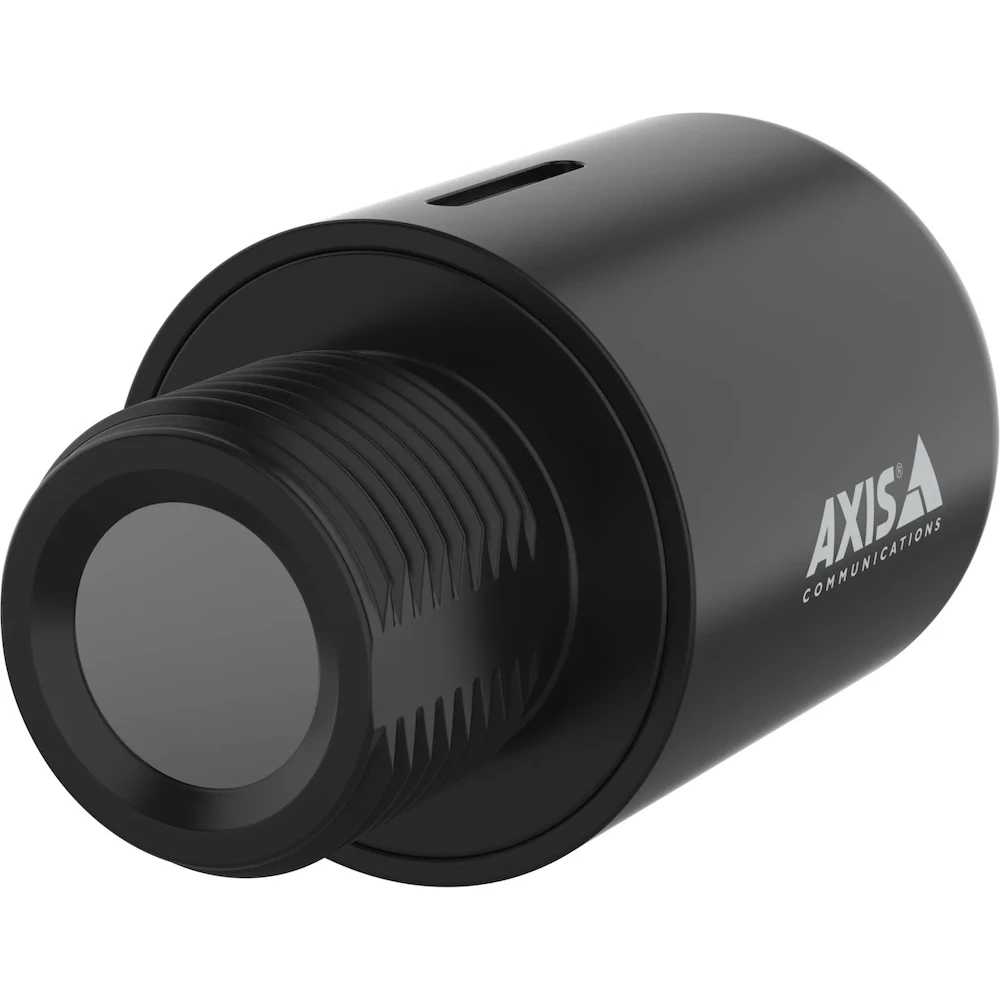

Axis F2180-TE 95° HFoV Thermal Sensor - 03370-001

Axis F2180-TE is a discreet thermal sensor unit for use with Axis F91 Mk II Main Units. Use F2180-TE as part of a modular camera system for remotely monitoring temperatures, triggering temperature-based events or alarms, and more. Because the sensor is so small, it can be installed in machinery, vehicles, and tight spaces. And because it connects to the main unit via a cable (not included), it can be positioned up to 30 meters (98 feet) away, so the main unit can be safely positioned and the external facing camera component remains exceptionally small and discreet. As a thermal sensor, F2180-TE detects temperature deviations in configurable polygonal detection areas with great accuracy.

Note: Axis F2180-TE comes in two models: one with a 57° horizontal field of view and one with a 95° horizontal field of view. This model, Axis 03370-001, has a wide 95° horizontal field of view. If you want the thermal sensor with a narrower field of view, search for Axis 03371-001.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis F2180-TE 95° HFoV Quick Specs:

• Image Sensor: uncooled VOx microbolometer 160 x 120 px
• Lens: athermalized
• Field of View: 95° horizontal
• Object Temperature Range: 14°F to 842°F
• Durability Ratings: IP66, IP67, IP6K9K
• Connector: SMA
• Operating Temperature Range: 14°F to 140°F

Axis F2180-TE 95° HFoV Thermal Sensor Package Contents:

• Sensor
• Installation Guide

Axis F2180-TE Documentation:

• Axis F2180-TE Datasheet
• Axis F2180-TE Installation Guide
• Axis F2180-TE Dimension Drawing
