Axis F9111 1-Channel Main Unit - 01990-001

(You save $10.01 )

Axis F9111 is a single-channel main unit for use as part of the Axis F Series of discreet IP security cameras. This second-generation main unit supports one 1080p Full HD video stream at up to 60 fps or one 720p HD video stream at up to 180 fps when used with a second generation Axis F Series sensor unit (not included). This modular surveillance camera provides for a highly discreet and secure installation. The SMA-FAKRA connector improves resistance to vibrations, making F9111 perfect for installation in buses, trains, subways, trucks, ambulances, and other vehicles. It has audio connections and supports full-duplex audio for another layer of security.

F9111 is powered by the ARTPEC-7 System on a Chip, letting it support the advanced video enhancing features that make Axis security cameras so prized. Lightfinder greatly improves color reproduction in extreme low-light. Forensic WDR deals with high-contrast lighting to retain much more detail. Zipstream optimizes the video stream without losing valuable detail. The main unit supports ultra-efficient H.265 (HEVC) video compression to save on bandwidth and storage costs. Store video in unit using a microSD card or through the network using a NAS or NVR solution. Axis F9111 in ONVIF Profile G and Profile S compliant for interoperability with third-party devices.

Note: Axis F9111 is a 2nd generation Axis F Series main unit and must be used with 2nd generation cables and sensor units. F9111 is not compatible with 1st generation cables and sensor units.

Axis F9111 Quick Specs:

  • System on a Chip (SoC): ARTPEC-7
  • Video Resolution: up to 1080p Full HD (1920 x 1080 px) @ 60 fps
  • Audio: 2-way (duplex)

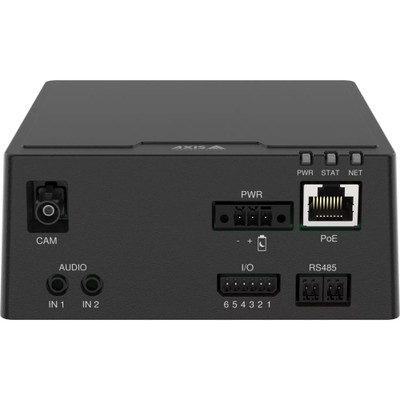

  • Physical Connectors:
    • Ethernet: Gigabit RJ45 PoE
    • Sensor Unit: FAKRA
    • Audio: 3.5 mm mic/line in, 3.5 mm line out
    • I/O: 6-pin terminal block for 4x configurable I/Os
    • Terminal Block: 5-pin terminal block RS232/RS485
    • Power: 3-pin terminal block
  • Power Over Ethernet (PoE): 802.3 at Type 2 Class 4
  • Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF: Profile G, Profile S
  • Operating Temperature: -40°F to 140°F
  • Durability Ratings: IP3X
  • Dimensions:
    • Height: 2.0 in
    • Width: 4.7 in
    • Depth: 4.7 in
  • Weight: 1.4 lb

Axis F9111 Main Unit Package Contents:

  • F9111 Main Unit
  • Installation Guide
  • Windows Decoder 1-User License

Axis F9111 Documentation:
