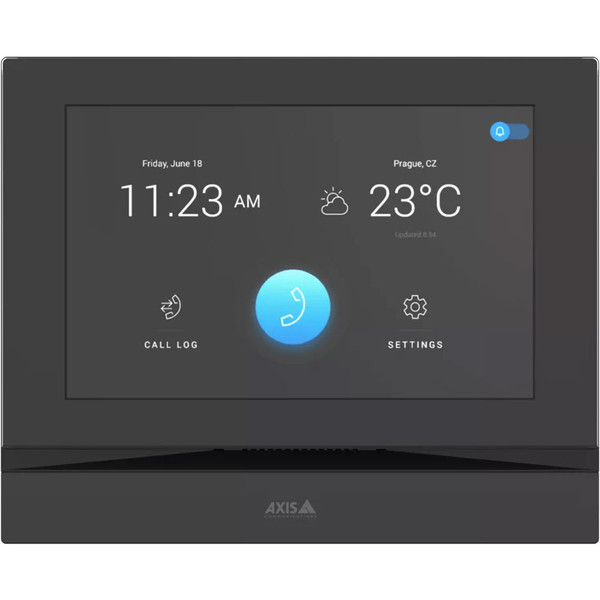

Axis I5304 Black Network Answering Unit - 03239-001

Axis I5304 is a network answering unit for answering calls from IP intercoms, making it an ideal solution for receptionists, security personnel, and more. I5304 has a 7-inch touchscreen display, providing a familiar user interface. It supports up to 720p HD video input and has a built-in microphone and speaker. I5304 thus works for two-way audio/video communications: the user will be able to see, hear, and talk with the other end. It has connections for door controls, so the user will also be able to let in visitors with just a tap.

I5304 is a SIP answering unit that supports SIP and runs 2N OS. There are a variety of mounting options: it can be surface-mounted or flush-mounted on the wall or desk-mounted (mount not included; see below). It connects to the network via an Ethernet cable and is powered via PoE (Power Over Ethernet).

Note: This model of Axis I5304 (03239-001) comes in black. I5304 is also available in white. Search for Axis 03238-001. I5304 does not include a mount. Three mounts are available separately: Axis TI5201 Recessed Mount (03240-001), Axis TI5601 Wall Mount (03241-001), or Axis TI5602 Desk Stand (03242-001).

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis I5304 Quick Specs:

• Connectivity Type: IP/VoIP
• VoIP Protocol: SIP
• Display: 7 in (1024 x 600 px) capacitive touchscreen
• Microphone: built-in
• Speaker: built-in
• Video Resolution: up to 720p HD at 30 fps
• Physical Connectors:
• Ethernet: 10/100 RJ45 PoE
• Doorbell Input: switching contact (button/relay)
• PoE (Power Over Ethernet): 802.3af Type 1 Class 3

Axis I5304 Network Video Intercom Package Contents:

• Answering Unit
• Installation Guide
• Certificate of Ownership
• 2.5 mm Hexagon Key Wrench
• Terminal Block Connectors for Power and Doorbell

Axis I5304 Documentation:

• Axis I5304 Datasheet
• Axis I5304 Installation Guide
