Axis I7010-VE Safety IP Intercom - 03109-001

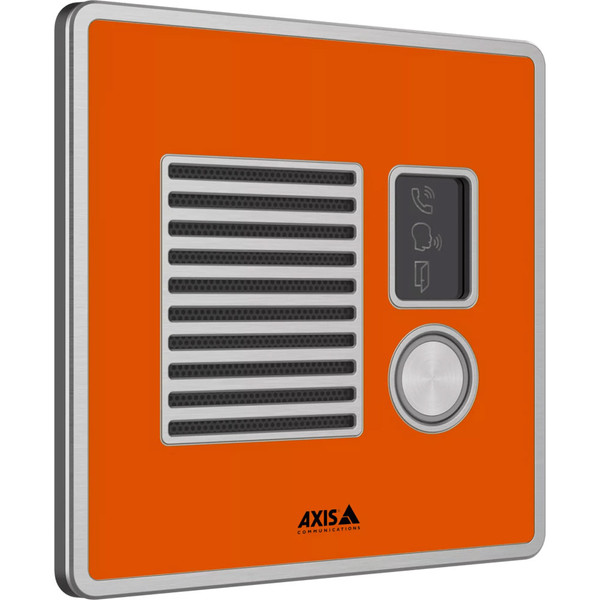

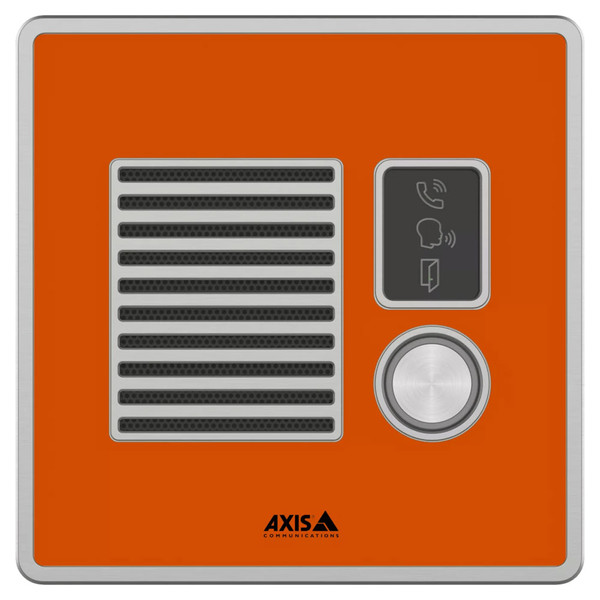

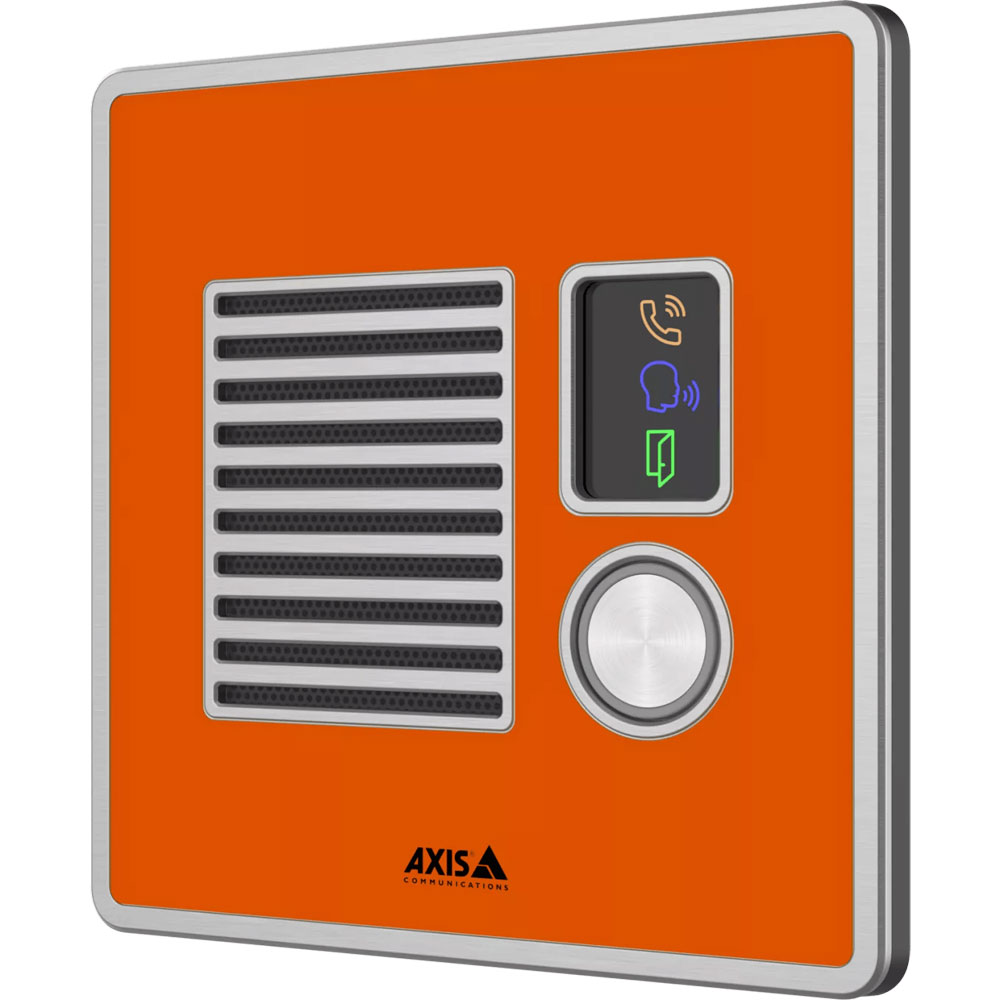

Axis I7010-VE Safety is a high-visibility network intercom that is robust and outdoor-ready. I7010-VE Safety has a bright orange (RAL 2004) color, making it visible in nearly all lighting and environmental conditions; its call button is illuminated for even greater visibility. The built-in speaker is powerful with a maximum sound pressure level of 92 dB, and it has dual built-in microphones for clear voice pickup.

I7010-VE Safety is ruggedized. It meets the IP66/IP69 and IK10 Standards; its front plate is vandal-resistant. As a SIP intercom intended for open platform integration, it works with a wide range of Axis and third-party IP intercom systems. Axis integrates cybersecurity from the ground up with their hardware-based platform, Axis Edge Vault. Power the intercom via PoE.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis I7010-VE Safety Quick Specs:

• VoIP Protocol: SIP
• System on a Chip (SoC): CV25
• Audio Input: 2x built-in microphones, line input
• Audio Output: built-in speaker, line output
• Hardware Interfaces:
• Ethernet: 10/100 RJ45 PoE
• I/O: terminal block for two configurable supervised inputs / digital outputs and 1 relay
• Audio 4-pin terminal block for audio input and output
• Serial Communication: RS485, half duplex/2-wire
• Power: 802.3at Type 2 Class 4 PoE (typical 3 W; max. 25.5 W)
• Storage: microSD, microSDHC, microSDXC
• Durability Ratings: IP66/IP69, IK10, NEMA 4X
• Operating Temperature Range: -40°F to 140°F

Axis I7010-VE Safety Network Intercom Package Contents:

• Intercom
• Installation Guide
• Resistorx L-Key
• Terminal Block Connector
• Owner Authentication Key

Axis I7010-VE Safety Documentation:

• Axis I7010-VE Safety Datasheet
• Axis I7010-VE Safety Installation Guide
• Axis I7010-VE Safety Dimension Drawing
