Axis M1075-L Mk II Box IP Camera - 03280-001

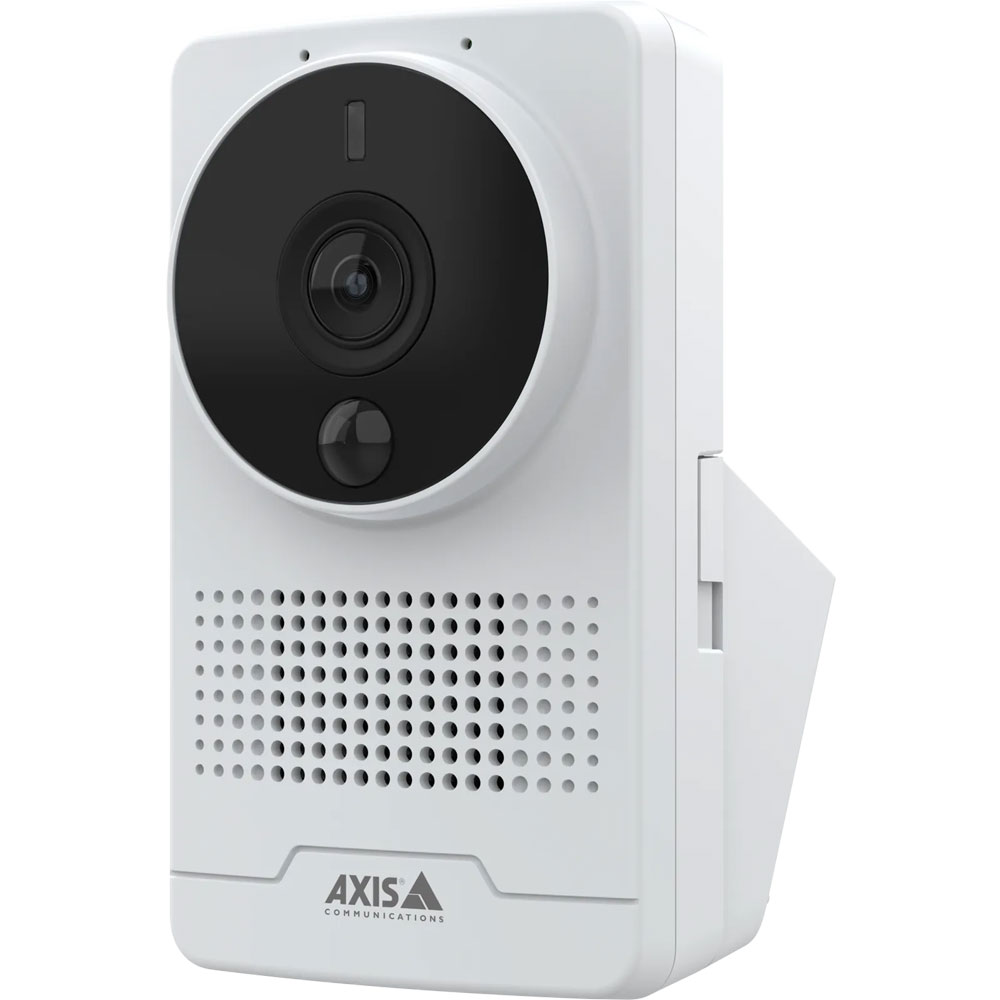

Axis M1075-L Mk II is a compact, simple to install security camera with 1080p Full HD video quality and two-way audio. Designed for indoor installation, M1075-L Mk II uses AI to offer extensive analytics solutions, including Axis Object Analytics and Audio Analytics. With Object Analytics, the camera can automatically, accurately detect, track, and count people; with Audio Analytics, it can deliver instant alerts upon the camera detecting critical sounds like breaking glass or screams. Axis has built security in from the ground floor with Axis Edge Vault, a hardware-based cybersecurity platform with FIPS 140-3 Level 3 Certified cryptographic key storage.

M1075-L Mk II takes 1080p Full HD video using professional optics. It has a built-in infrared light for surveillance in complete darkness; its passive infrared sensor detects motion in complete darkness, too. It has a built-in microphone for two-way audio communication with voice enhancer to improve sound performance. You can connect the camera directly to a public viewing display using its HDMI port; an LED light indicates video streaming or recording to further deter bad actors. Connect a peripheral using its I/O port, or add Wi-Fi via a USB dongle (not included). Stream and store video through the network, or record video locally on a microSD card. M1075-L Mk II is ONVIF Profile G, M, S, and T Compliant.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M1075-L Mk II Quick Specs:

• System on a Chip (SOC): CV25
• Image Sensor: 1/2.9-in progressive scan RGB CMOS
• Video Resolution: up to 1080p Full HD (1920 x 1080 px)
• Frame Rate: up to 30 fps
• Video Compression: H.264 (AVC) Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.16 mm, f/2.0
• Field of View:
• Horizontal: 103°
• Vertical: 55°
• Minimum Illumination:
• Color: 0.18 lux
• B/W: 0.04 lux
• Infrared: 0 lux
• Infrared Range: up to 59 ft (18 m)
• Passive Infrared (PIR) Range: up to 23 ft (7 m)
• Audio: two-way, full-duplex
• Physical Connectors:
• Ethernet: 10/100 RJ45
• I/O: 4-pin 2.5 mm terminal block for 1 alarm input and 1 output
• USB: USB (for external accessories)
• HDMI: Micro HDMI Type D
• Power: 802.3at Type 1 Class 3 PoE (up to 12.95 W)
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: 32°F to 95°F
• Durability Ratings: IP40

Axis M1075-L Mk II Box Camera Package Contents:

• Camera
• Installation Guide
• Windows Decoder 1-User License
• Wall Mount
• Terminal Block Conncetor

Axis M1075-L Mk II Documentation:

• Axis M1075-L Mk II Datasheet
• Axis M1075-L Mk II Installation Guide
• Axis M1075-L Mk II Dimension Drawing
