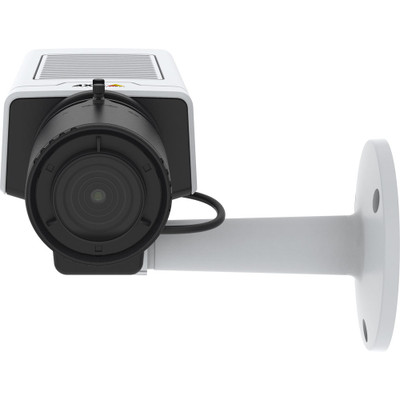

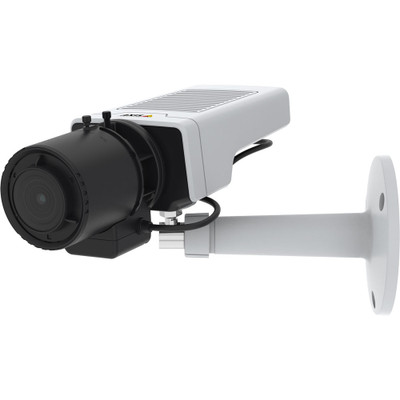

Axis M1137-E Mk II 5 MP Outdoor Box IP Camera - 02486-001

(You save $12.01 )

Axis M1137-E Mk II provides a cost-effective solution for general surveillance with exceptional detail — up to 2.5x better resolution than a 1080p Full HD camera can produce. Designed for outdoor installation, M1137-E Mk II takes up to 5 MP video. It comes with a varifocal CS-mount lens, which you can switch out with another compatible lens (not included) — adaptable. The camera supports numerous technologies to improve video performance, including Lightfinder and Forensic WDR. Lightfinder provides accurate color reproduction in very dark situations. Forensic WDR lets the camera adapt to harsh lighting like high contrasts or strong backlighting. For an additional layer of surveillance, the camera has a built-in microphone — sound as well as video.

M1137-E Mk II is a powerful IP camera with an ARTPEC-7 System on a Chip (SOC) with machine learning processing unit. The camera comes with Axis Object Analytics preinstalled — automatic, highly accurate and nuanced categorization of the objects the camera sees, like humans or vehicles. Power the camera by either PoE or DC. You can use a redundant DC power source so camera operates even during power outages. Ultra-efficient H.265 (HEVC) video compression reduces bandwidth and storage load and means you can store more video per the same amount of hard drive space. Store video through the network using a NAS or NVR solution. Axis M1137-E Mk II in ONVIF Profiles G, M, S and T compliant — interoperable with third-party solutions.

Axis M1137-E Mk II Quick Specs:

  • System on a Chip (SoC): ARTPEC-7
  • Image Sensor: 1/2.7" progressive scan RGB CMOS
  • Video Resolution: up to 5 MP (2592 x 1944 px) @ 30 fps
  • Lens: varifocal 2.8-13 mm (CS-mount)
  • Field of View:
    • Horizontal: 112° to 24°
    • Vertical: 82° to 19°
  • Minimum Illumination:
    • Color: 0.17 lux
    • B/W: 0.03 lux
  • Audio: 1-way (simplex)
  • Physical Connectors:
    • Ethernet: 10/100 RJ45 PoE
    • Audio: 3.5 mm mic/line in
    • Terminal Block: one input and one output
    • Power: DC input, terminal block
  • Power Over Ethernet (PoE): 802.3 af/at Type 1 Class 3
  • Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
  • ONVIF: Profile G, Profile M, Profile S, Profile T
  • Operating Temperature: -13°F to 122°F
  • Durability Ratings: IP66, IK10, NEMA 4X
  • Dimensions (with wall mount):
    • Height: 9.5 in
    • Width: 5.6 in
    • Length: 14.7 in
  • Weight (with wall mount): 4.0 lb

Axis M1137-E Mk II Network Security Camera Package Contents:

  • M1137-E Mk II Camera
  • T94Q01A Wall Mount
  • Torx T20 Screwdriver
  • Torx T30 Screw Bit
  • Connector Kit
  • Installation Guide
  • Windows Decoder 1-User License
