Axis M3066-V 4MP Indoor Mini Dome IP Camera - 01708-001

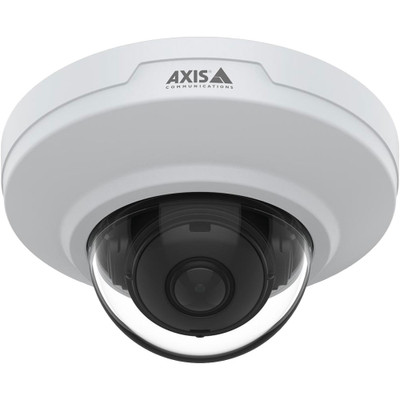

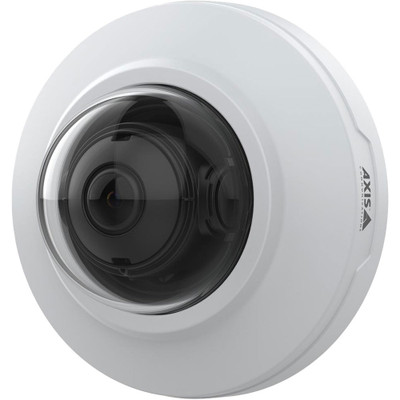

The Axis M3066-V has been phased out and is no longer available for purchase. The recommended replacement is the Axis M3086-V.

Axis M3066-V provides incredibly detailed 4MP surveillance video in a camera that fits in the palm of your hand. Designed for indoor installation on a wall or ceiling, M3066-V measures only 4 inches in diameter, but still packs in a professional CMOS sensor and factory focused wide angle lens. Day/night functionality gives it excellent low light performance, and you can fine tune low light behavior to your specifications. In addition, the camera features Axis's excellent wide dynamic range (WDR) technology to adapt to high-contrast lighting like strong shadows or headlamps.

Axis M3066-V is an IP camera with network-connected benefits. For example, it supports efficiency and security improving functions like Axis People Counter and Axis Occupancy Estimator. Use HDMI to screen live video to an HD display. H.265 video compression is extremely efficient, greatly reducing load on bandwidth and storage. Store video in camera using a microSD card or through the network using an NVR or NAS solution. M3066-V is simple to install with a snap-on case. The camera is IP42 and IK08 rated for long-lasting durability. It is environmentally friendly, made from 52% recycled plastic with no PVC, BFRs, or CFRs. Axis M3066-V is ONVIF Profile G, Profile S, and Profile T compliant.

Axis M3066-V IP Camera Quick Specs:

  • Connectivity Type: IP
  • Ethernet Ports: 1x 10/100
  • PoE: 802.3af/at Type 1 Class 1
  • Additional Connectors:
    • HDMI: Type D
    • Audio: via Axis T61 Audio & I/O Interface (not included)
  • Sensor: 1/2.5" progressive scan RGB CMOS
  • Resolution: up to 4MP @ 30fps
  • Video Codecs: H.264 Baseline Main, High; H.265 Main; Motion JPEG
  • Lens: fixed 2.4mm, f/2.1
  • Field of View:
    • Horizontal: 131°
    • Vertical: 97°
  • Minimum Illumination:
    • Color: 0.23 lux
    • B/W: 0.05 lux
  • Angle Adjustment:
    • Pan: ±175°
    • Tilt: ±80°
    • Rotation: ±175°
  • Edge Storage: microSD, microSDHC, microSDXC
  • ONVIF: Profile G, Profile S, Profile T
  • Operating Temperature: 32°F to 113°F
  • Durability Ratings: IP42, IK08
  • Dimensions:
    • Height: 2.2 in
    • Diameter: 4.0 in
  • Weight: 0.33 lbs

Axis M3066-V Network Security Camera Package Contents:

  • Axis M3066-V IP Camera
  • Installation Guide
  • Windows Decoder 1-User License



Warranty:
3 Years
