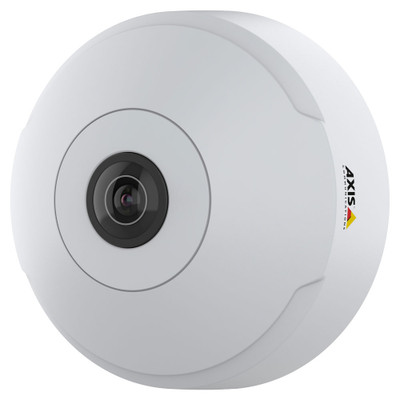

Axis M3068-P 12 MP 360° Panoramic Indoor Mini-Dome IP Camera - 01732-004

Axis M3068-P is an ultra-compact, mini-dome IP camera that provides 360° panoramic coverage using a 1.65 mm lens and 12 MP sensor — total coverage of an open area from just one camera. Designed for indoor installation, M3068-P fits in the palm of your hand — discreet. The camera offers a variety of overview options like panorama or quad view — plus a whole range of dewarped options. With a 12 MP sensor, your video will be highly detailed. To prevent loss of detail in challenging scenarios, the camera supports Forensic WDR — deals with harsh contrasts or heavy backlighting. Day/night functionality further improves performance in varying lighting conditions.

M3068-P takes fine-grained surveillance video, but it also makes your video feed highly efficient. Zipstream retains detail on the important parts of the scene while ultra-efficient H.265 (HEVC) video compression can reduce video size by 50% or more. Store video in camera using a microSD card or through the network using a NAS or NVR solution. M3068-P is made from environmentally friendly materials and can be re-painted to better blend in with the surroundings. Axis M3068-P is ONVIF Profiles G, M, S and T compliant — interoperable with third-party systems.

© 2022 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M3068-P Quick Specs:

• System on a Chip (SoC): ARTPEC-7
• Image Sensor: 12 MP 1/7" progressive scan RGB CMOS
• Video Resolution:
• Overview: up to 2880 x 2880 px
• Panorama: up to 3840 x 2160 px
• Double Panorama: up to 3584 x 2688 px
• Quad View: up to 3584 x 2688 px
• Lens: fixed 1.65 mm, f/2.8
• Field of View:
• Horizontal: 185°
• Vertical: 185°
• Minimum Illumination:
• Color: 0.32 lux
• B/W: 0.06 lux
• Physical Connectors:
• Ethernet: 10/100 RJ45 PoE
• Power Over Ethernet (PoE): 802.3 af/at Type 1 Class 2
• Video Compression: H.264 Baseline, Main, High; H.265 Main; Motion JPEG
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF: Profile G, Profile M, Profile S, Profile T
• Operating Temperature: 32°F to 113°F
• Dimensions:
• Height: 1.9 in
• Diameter: 4 in
• Weight: 0.66 lb

Axis M3068-P Network Security Camera Package Contents:

• M3068-P Camera
• Installation Guide
• Windows Decoder 1-User License

Axis M3068-P Documentation:

• Axis M3068-P Datasheet
