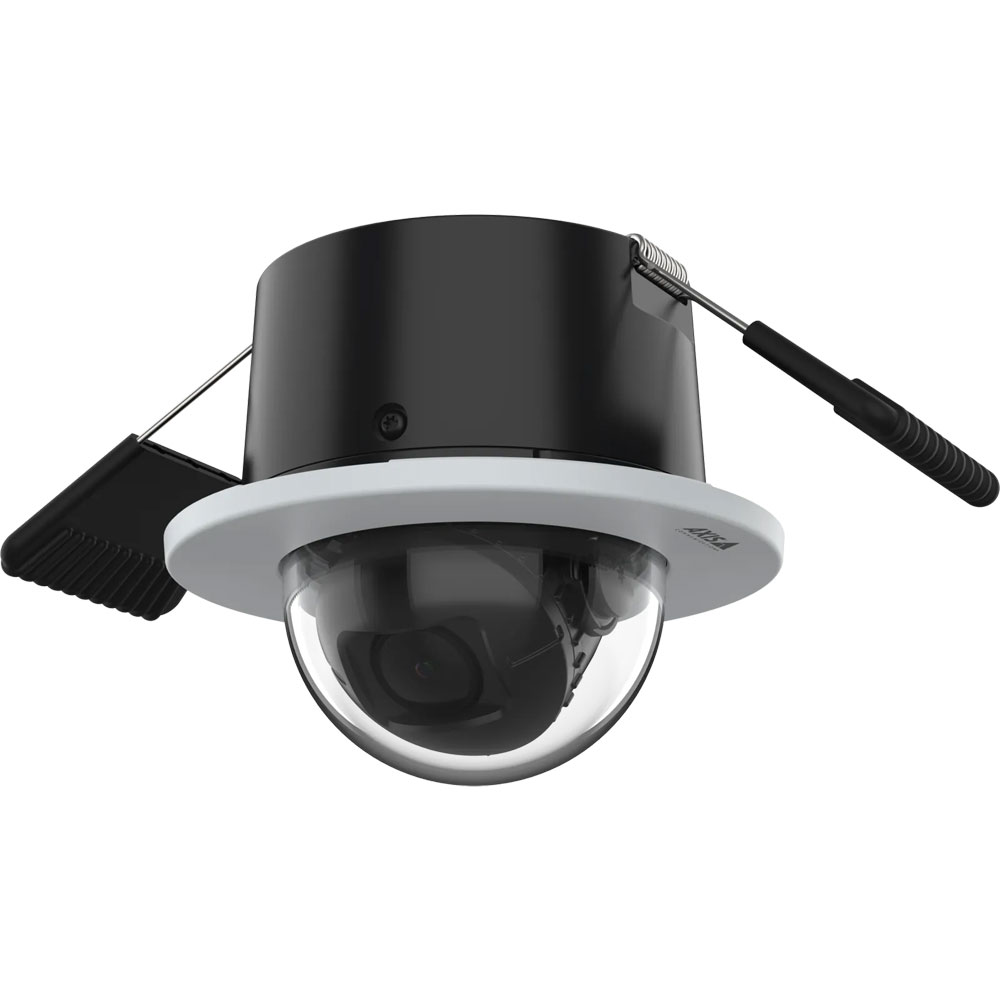

Axis M3098-H 8 MP Indoor Recessed Mini-Dome IP Camera - 03396-001

Axis M3098-H is a mini-dome surveillance camera for indoor installation in drop ceilings. M3098-H is an AI-powered, 4K Ultra HD camera. It is powerful, handling AI video and audio analytics on the edge with real-time speed. Axis Object Analytics is a suite of automatic analysis solutions that detect, classify, track, and count human and vehicle objects. Axis Audio Analytics puts the camera's acoustic sensor to use; the camera analyzes sound levels for critical information like screams, shouts, or breaking glass, and then delivers actionable insights to you right away. Axis Image Health Analytics monitors image quality to detect tampering or image degradation, letting you know when something is messing with the camera's ability to obtain the optimal image. Axis Scene Metadata analyzes the view to make your security video library history searchable using a range of object classes and object attributes. Axis Live Privacy Shield protects individuals with dynamic privacy masking. Beyond its amazing audio and video intelligence, M3098-H also has enterprise-grade security with Axis Edge Vault: a hardware-based platform for cybersecurity, including FIPS 140-3 Level 3 certified secure key storage and more.

M3098-H is a compact, professional, network-connected security camera: it measures less than 4 inches in diameter. Its recessed build makes it easy to install in drop ceiling tiles and makes it even less obtrusive. Even with its small size, it has a large 8 MP sensor and fixed 3.76 mm lens for general scene surveillance. It delivers up to 4K Ultra HD video, which means you get all the necessary detail for premise and property protection. Forensic WDR dynamically adapts to high-contrast lighting, letting it retain much more detail. Lightfinder improves color reproduction in low-light. Axis Zipstream reduces file size, limiting bandwidth and storage load, plus H.265 (HEVC) video compression makes the video feed incredibly efficient. Store video in camera using a microSD card or through the network using an NVR or NAS system. M3098-H is IP42 Rated against dust and water ingress. It has a Gigabit Ethernet port for network connection and is powered via PoE. M3098-H is compliant with ONVIF Profile G, Profile M, Profile S, and Profile T for interoperability with third-party platforms.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis M3098-H Quick Specs:

• System on a Chip (SOC): CV75
• Image Sensor: 1/1.8-in progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 x 2160 px)
• Frame Rate: up to 15 fps in 8 MP mode; up to 30 fps in 4 MP mode
• Video Compression: H.264 (AVC) Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: fixed 3.76 mm, f/2.0
• Field of View:
• Horizontal: 124°
• Vertical: 66°
• Camera Adjustment:
• Pan: ±175°
• Tilt: ±57°
• Rotation: ±175°
• Minimum Illumination:
• Color: 0.19 lux
• B/W: 0.05 lux
• Bluetooth: Bluetooth 5.4 Low Energy
• Physical Connectors:
• Ethernet: Gigabit RJ45
• Power: 802.3at Type 1 Class 2 (up to 3.9 W)
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: 32°F to 113°F
• Durability Ratings: IP42

Axis M3098-H Dome Camera Package Contents:

• Camera
• Installation Guide
• Owner Authentication Key

Axis M3098-H Documentation:

• Axis M3098-H Datasheet
• Axis M3098-H Installation Guide
• Axis M3098-H Dimension Drawing
