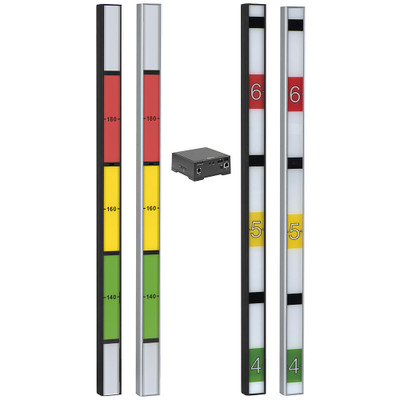

Axis P8535 1080p Indoor Height Strip IP Camera, Silver Metric - 0713-001

Note: Axis 0713-001 is Axis P8535 in silver with metric units (centimeters). P8535 is also available in black and with imperial units (feet).

Improve the security in your store, hotel, and bank with this covert 1080p IP camera mounted inside a height strip. Axis P8535 uses an incredibly discreet Axis F1025 Sensor Unit with pinhole lens subtly installed in the height strip at eye-level. The sensor unit has a 39ft cable that connects to an Axis F41 Main Unit, which connects to your network. P8535 has a wide-angle fixed 3.7mm lens with a ±15° panning range. The unit supports two-way audio for additional evidence.

Axis P8535 might be tiny but it still offers advanced surveillance technology. Axis WDR - Forensic Capture deals with high-contrast or changing light conditions, especially important a camera is installed near doorways. Axis Zipstream reduces bandwidth and storage load while keeping important detail. Store video in the main unit using an SD card or through the network. Axis P8535 is ONVIF Profile S and Profile G compliant.

Axis P8535 IP Camera Quick Specs:

• Connectivity Type: IP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af/at Type 1 Class 3
• Additional Interfaces:
• RJ12 for sensor unit
• 6-pin terminal block for 4 configurable I/O
• 3.5mm in/out
• 5-pin RS232 terminal block
• 2-pin terminal block for 8/28V DC input
• Sensor: 1/2.8" (effective) progressive scan RGB CMOS
• Resolution: up to 1920x1080 at 60fps
• Pan:±15°
• Video Codecs: H.264 Baseline, H.264 Main, H.264 High, MJPEG
• Lens: pinhole fixed 3.7mm, f/2.5
• Field of View: 92° H
• Minimum Illumination: 0.3 lux color
• Audio: two-way
• Audio Codecs: AAC-LC, G.711, G.726
• Edge Storage: SD, SDHC, SDXC
• Operating Temperature: -22°F - 131°F
• ONVIF: Profile S, Profile G

Axis P8535 Height Strip Network Security Camera Package Contents:

• F41 main unit
• F1025 sensor unit with 12m (39ft) cable
• Silver housing with metric height strip
• Installation guide
• Windows decoder 1-user license
• AVHS authentication key
