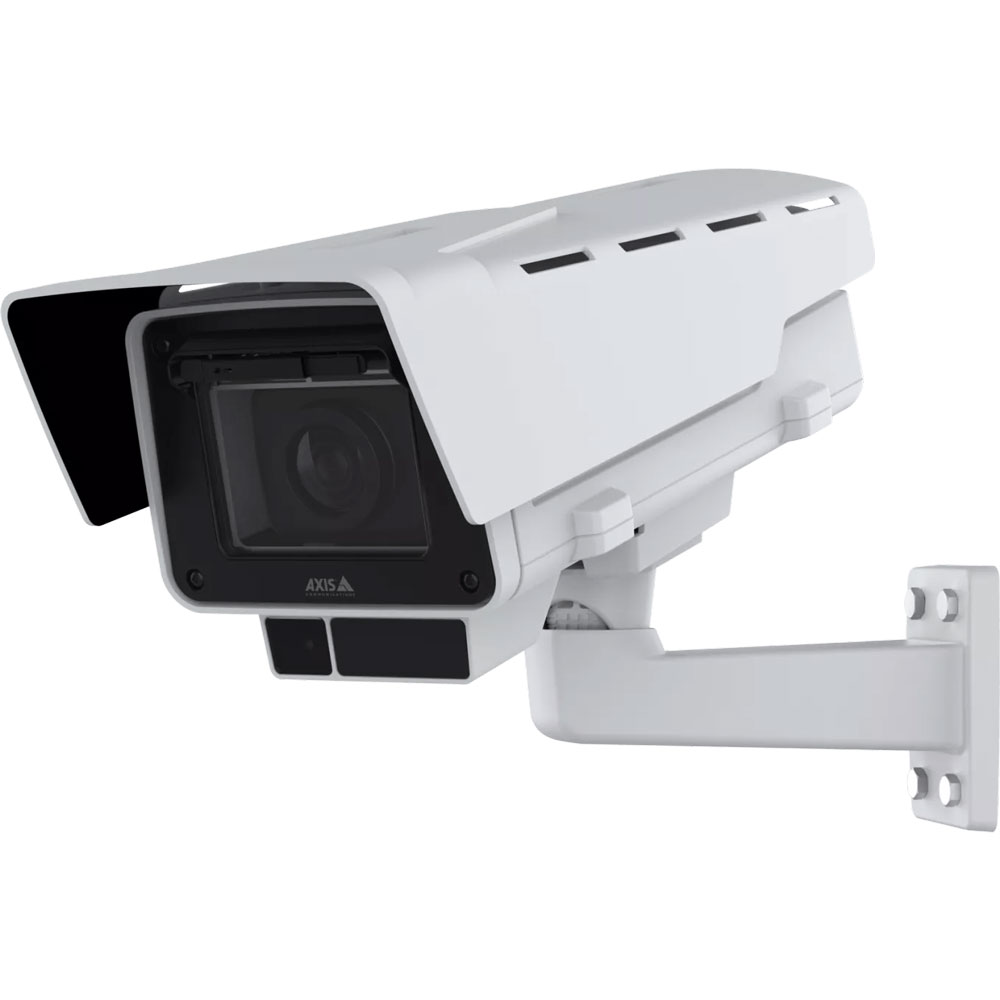

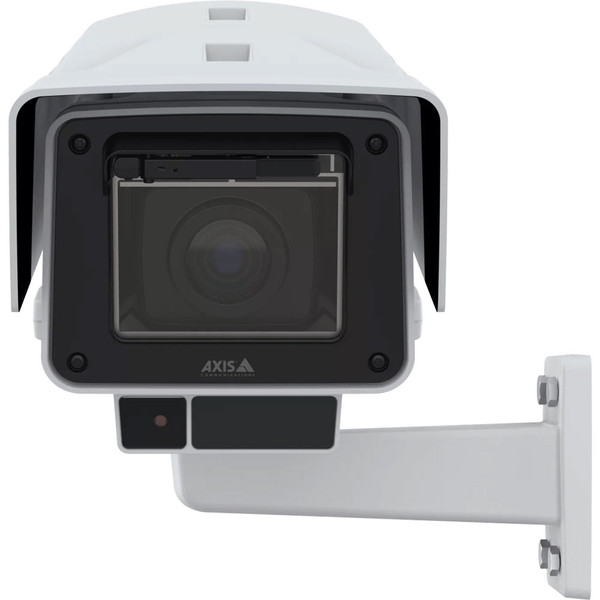

Axis Q1728-LE 48 mm 4K Ultra HD Outdoor IP Camera - 03211-001

Axis Q1728-LE is a 4K Ultra HD (8 MP) IP camera for outdoor surveillance. This model of Q1728-LE features a 15.2-48.7 mm varifocal lens with ultra-fast f/1.7 aperture for exceptional low-light performance. The telephoto lens lets you adjust the focal length to capture important details like license plates with no loss of detail when compared with digital zoom. Q1728-LE is powered by the purpose-built ARTPEC-9 System on a Chip (SoC). Its large 1/1.2-inch CMOS sensor improves image reproduction, especially noticeable in its excellent low-light performance. The camera resists the elements. It has a built-in wiper for keeping the front window free of rain or debris, and the front window also has a carbon nanotube film heater. For professional video security, look to Q1728-LE.

Q1728-LE is an AI-powered camera with an extensive range of analytics included: Image Health Analytics, Object Analytics, Speed Monitor, Live Privacy Shield, Scene Metadata, and Video Motion Detection. It supports Forensic WDR, Lightfinder 2.0, and OptimizedIR to improve image quality, including for no-light surveillance using its built-in infrared lights. Axis Edge Vault protects your camera and your camera system: a hardware-based cybersecurity solution that lets the camera meet the FIPS 140-3 Level 3 standard for cryptographic module security, and more. Store video in camera using a microSD card or through the network via an NVR or NAS system. Q1728-LE supports ultra-efficient H.265 (HEVC) and AV1 video compression to reduce storage and bandwidth requirements. The camera is compliant with ONVIF Profiles G, M, S, and T for use with third-party devices and systems.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q1728-LE Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.2-in progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 x 2160 px)
• Frame Rate: up to 60 fps (with no HDR)
• Video Compression: AV1; H.264 (AVC) Baseline, Main, High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 15.2-48.7 mm, f/1.7
• Field of View:
• Horizontal: 42° to 13°
• Vertical: 24° to 7°
• Minimum Illumination:
• Color: 0.05 lux
• B/W: 0.01 lux
• Infrared: 0 lux
• Infrared Range: up to 164 ft (50 m)
• Audio: one-way (simplex, half duplex), two-way (half duplex, full duplex)
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• Network: IDC punchdown connector PoE
• Audio: 3.5 mm mic/line in
• I/O: 6-pin 2.5 mm terminal block for four configurable inputs
• Serial Communication: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
• Power: DC input, terminal block
• HDMI: Type D
• AHI: AHI (Axis Housing Interface)
• Power Over Ethernet (PoE): 802.3af/at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -40°F to 140°F
• Durability Ratings: IP66/67, IK10

Axis Q1728-LE 48 mm Network Security Camera Package Contents:

• Camera
• Installation Guide
• Owner Authentication Key
• Connector Guard
• Cable Gaskets
• Axis TQ1003-E Wall Mount

Axis Q1728-LE Documentation:

• Axis Q1728-LE Datasheet
• Axis Q1728-LE Installation Guide
