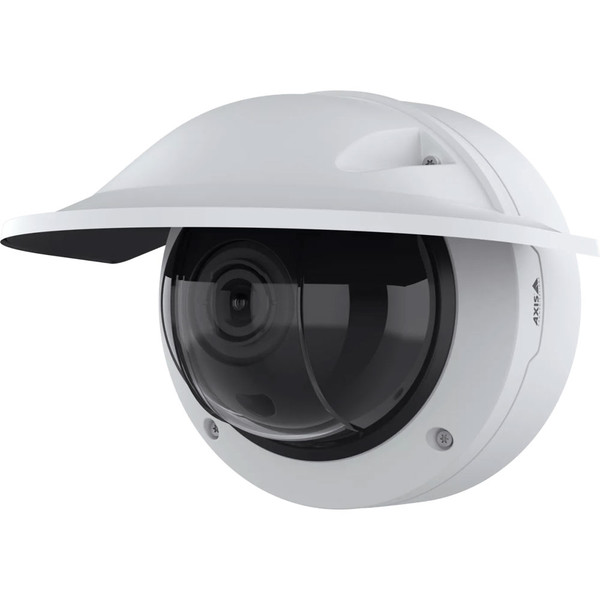

Axis Q3548-LVE 4K Ultra HD Outdoor Dome IP Camera - 02973-001

Axis Q3548-LVE is an AI-powered, 4K Ultra HD surveillance camera. Intended for outdoor installation even in harsh conditions, Q3548-LVE can take video at up to 8 MP resolution: 4K Ultra HD. It uses professional optics for clarity with a wide-angle varifocal lens that offers 2x lossless optical zoom, letting you adjust the focal length without worrying about loss of detail. In addition to its first-class optics, it supports image enhancing technologies. Lightfinder 2.0 is an improved solution for color reproduction in extreme low-light. Forensic WDR deals with high-contrast between light areas and dark areas of the scene, letting the camera retain more detail. The camera has OptimizedIR infrared lights built into the camera with an IR-shielded dome that prevents reflections from disturbing the image quality.

Q3548-LVE is a powerful network-connected camera with a purpose-built System on a Chip: ARTPEC-9. This SoC powers advanced analytics functionality. Q3548-LVE comes with Axis Object Analytics already installed. This suite of analytics tools automatically classifies objects into human and vehicle, including type of vehicle. Other included apps are Image Health Analytics, Scene Metadata, Live Privacy Shield, and Video Motion Detection. The camera is protected by Axis Edge Vault, which is a cybersecurity solution for device and system that is incorporated into the camera from the start of production. Q3548-LVE reduces storage and bandwidth needs with ultra-efficient AV1 and H.265 (HEVC) video compression and Zipstream technology. Store video in camera using a microSD card or through the network using an NVR or NAS. Q3548-LVE withstands the elements. It has a durable aluminum casing, polycarbonate hard-coated dome, and extended temperature range of -58°F to 131°F. The package includes a weathershield to protect it from rain, snow, and sunshine. Q3548-LVE is compliant with ONVIF Profiles G, M, S, and T.

Note: This model of Axis Q3548-LVE (02973-001) has a 4.7-10 mm lens. The same camera is also available with a 13-51 mm lens. Search for Axis 02972-001.

© 2025 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Axis Q3548-LVE Quick Specs:

• System on a Chip (SOC): ARTPEC-9
• Image Sensor: 1/1.2" progressive scan RGB CMOS
• Video Resolution: up to 4K Ultra HD (3840 x 2160 px)
• Frame Rate:
• No WDR: up to 60 fps
• With Forensic WDR: up to 30 fps
• Video Compression: AV1; H.264 (AVC) Baseline, Main and High; H.265 (HEVC) Main; Motion JPEG
• Lens: varifocal 6.3-13 mm, f/1.6-2.9
• Field of View:
• Horizontal: 104° to 50°
• Vertical: 56° to 28°
• Zoom: 2x optical
• Camera Angle Adjustment:
• Pan: ±180°
• Tilt: +80° to -42°
• Rotation: ±180°
• Minimum Illumination:
• Color: 0.04 lux
• Infrared: 0 lux
• Physical Connectors:
• Ethernet: Gigabit RJ45 PoE
• Audio: 3.5 mm mic/line in
• I/O: 4-pin 2.5 mm terminal block
• Power: DC input, terminal block
• Power Over Ethernet (PoE): 802.3at Type 2 Class 4
• Edge Storage: microSD, microSDHC, microSDXC
• ONVIF Profiles: G, M, S, T
• Operating Temperature: -58°F to 131°F
• Durability Ratings: IP66, IP6K9K, IK10, NEMA 4X

Axis Q3548-LVE Network Security Camera Package Contents:

• Camera
• Weathershield
• Installation Guide
• Terminal Block Connectors
• Connector Guard
• Cable Gaskets
• Owner Authentication Key

Axis Q3548-LVE Documentation:

• Axis Q3548-LVE Datasheet
• Axis Q3548-LVE Installation Guide
