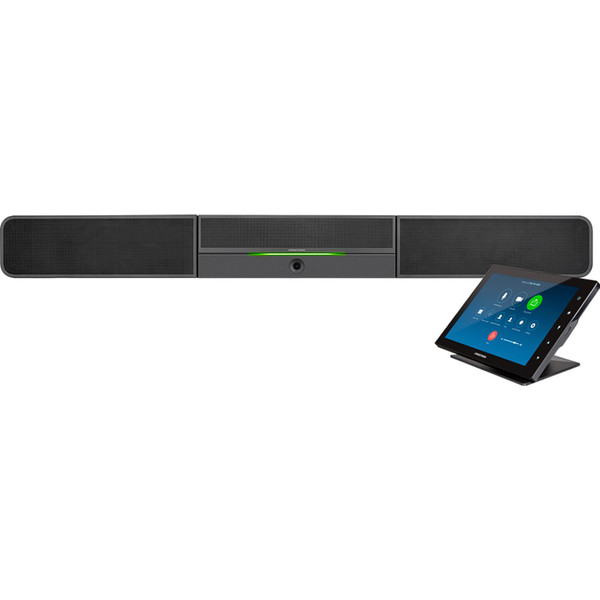

Crestron UC-B140-Z Zoom Rooms Video Conferencing System

Crestron Flex UC-B140-Z is an all in one solution for a professional Zoom Rooms experience in small rooms — business class video conferencing. UC-B140-Z includes a Crestron UC-SB1-CAM-FLEX Sound Bar, Crestron TSW-1060-B-S Touch Display, Crestron UC-ENGINE-SD-Z UC Engine and wall mount assembly — everything you need for a clean installation. Crestron developed the system to provide native Zoom Rooms communications — HD audio and video with advanced features and enterprise class network and administrative capabilities.

UC-SB1-CAM-FLEX provides full duplex HD audio and 1080p Full HD video — using an integrated Huddly IQ camera. The camera uses a wide angle lens to capture all the faces in small rooms — and Genius Framing technology zooms in on individual faces automatically. The sound bar provides incredible audio with a beamforming microphone array with 15-foot pickup range and 20W multielement stereo speaker assembly.

TSW-1060-B-S gives you a dedicated control center for your conference — 10.1-inch touch display. It shows a native Zoom interface — consistent experience across devices. The included tabletop enclosure gives you a secure installation for the touch display — at a convenient angle. UC-ENGINE-SD-Z is a dedicated Intel NUC Mini PC with Zoom Rooms preinstalled — ready to go out of the box. Crestron includes a bracket to mount it on a wall or backside of a display.

Crestron UC-B140-Z Quick Specs:

Crestron UC-SB1-CAM-FLEX Sound Bar:

• Camera: Huddly IQ (internally mounted)
• Sensor: 12 MP Sony
• Field of View:
• Horizontal: 120°
• Vertical: 90°
• Diagonal: 150°
• Zoom: 3x digital
• Video Resolution: up to 1080p Full HD @ 30 fps
• Speaker Power: 20 W
• Microphone: 4 element adaptive beamforming array
• Pickup Range: 15 ft
• Physical Connectors:
• Audio: 1x 3.5 mm line in, 1x 3.5 mm line out
• PC: 1x USB-B
• Camera: 1x USB-A

Crestron TSW-1060-B-S Touch Display:

• Display: 10.1 in color touchscreen
• Resolution: 1280 x 800 px
• Physical Connectors:
• Ethernet: 1x 10/100 PoE
• USB: USB-A
• PoE: 802.3at Type 2

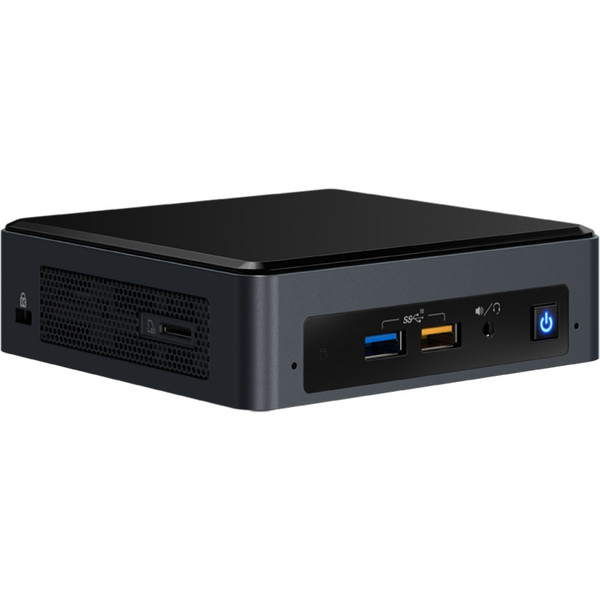

Crestron UC-ENGINE-SD-Z UC Engine:

• Mini PC: Intel NUC Kit NUC8i5BEK
• CPU: Intel Core i5-8259U (2.3 GHz with 3.8 GHz Turbo, Quad Core)
• GPU: Intel Iris Plus Graphics 655
• RAM: 8 GB
• SSD: 128 GB
• Wi-Fi: 802.11ac
• Bluetooth: 5.0
• Video Resolution:
• Camera Input: up to 1080p Full HD @ 30 fps
• Content Input: up to 1080p Full HD @ 60 fps
• Display Output: up to 1080 Full HD @ 60 fps
• Physical Connectors:
• Ethernet: 1x Gigabit
• SD Card: 1x SDXC card slot
• USB: 2x USB-A 3.0 (front), 2x USB-A 3.0 (rear), 1x USB-C
• HDMI: 1x Type A
• Headset: 1x 3.5 mm

Crestron Flex UC-B140-Z Zoom Rooms Kit Package Contents:

Crestron UC-SB1-CAM-FLEX Smart Sound Bar:

• UC-SB1-CAM-FLEX Sound Bar
• Power Cord
• USB Cable
• Mounting Hardware

Crestron TSW-1060-B-S Touch Display, Black:

• TSW-1060-B-S Touch Display
• Security Latch
• Mounting Hardware

Crestron TSW-1060-TTK-B-S Tabletop Kit, Black:

• TSW-1060-TTK-B-S Tabletop Kit
• Template
• Mounting Hardware

Crestron UC-BRKT-100-SD-Z-ASSY UC Engine Bracket Assembly:

• Crestron UC-BRKT-100-ASSY Package:
• UC-ENGINE-SD-Z UC Engine for Zoom Rooms
• HD-CONV-USB-200 HDMI to USB-A Converter
• UC-CONN-HD EDID Emulator
• Mounting Bracket
• Power Cord
• Mounting Hardware

Accessory Box:

• PWE-4803RU PoE Injector
• 2x CBL-CAT5E-7 Ethernet Cable, 7 ft
• CBL-USBC-HD-9 USB-A to HDMI Converter Cable, 9 ft
