Fanvil GA100-144R FXS IP Gateway

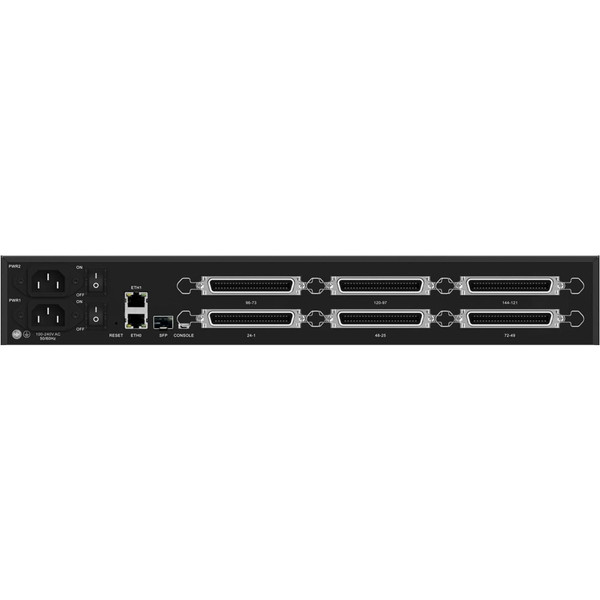

Fanvil GA100-144R is a powerful analog-to-IP gateway for bringing analog equipment like phones, hotel phones, and fax machines into a VoIP phone system. GA100-144R is a SIP-based VoIP gateway. It uses a quad-core ARM processor with CPLD hardware architecture and embedded Linux system, delivering enterprise-grade performance. As a high-density, high-capacity gateway, it can be used for large-scale deployments in hotels, enterprises, and more. GA100-144R has six RJ21 FXS ports, two Gigabit Ethernet RJ45 ports, and one Gigabit SFP fiber port. It supports up to 144 concurrent calls with 3-party local conferencing, group and round-robin ringing, and many more features. It includes two power supplies for redundancy. Use its quick installation wizard and web-based UI for configuration and management.

© 2026 IP Phone Warehouse. All rights reserved, including the right to reproduce this product description or portions thereof in any form whatsoever.

Fanvil GA100-144R Quick Specs:

• VoIP Protocol: SIP
• FXS Ports: 6x RJ21
• Ethernet Ports: 2x Gigabit RJ45
• Fiber Ports: 1x Gigabit SFP
• Console Port: 1x Mini USB
• Power Ports: 2x 100-240V AC

Fanvil GA100-144R FXS VoIP Gateway Package Contents:

• Gateway
• 2x Power Cords
• Ethernet Cable
• Ground Wire
• 4x Rack Screws
• 2x Rack Accessories
• 8x Countersink Screws
• Quick Installation Guide

Fanvil GA100-144R Documentation:

• Fanvil GA100-144R Datasheet
• Fanvil GA100-144R Quick Installation Guide
• Fanvil GA100 Series User Manual v3.0.0
