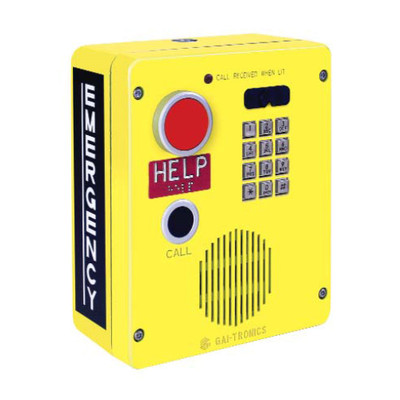

GAI-Tronics Red Alert Surface-Mount Emergency Phone w/Voice Annuciation & Keypad - 394AL-002

No reviews yet Write a Review
$1,803.70
$1,689.99
(You save $113.71 )
SKU:
394AL-002
Condition:
New
Availability:
Usually Ships Same Business Day
Shipping:
Calculated at Checkout
Warranty:
1 Year

Have a question?

  • Industry Best Pricing

    Quantity discounts available

  • Friendly Associates

    Pre-sales product and solution advice

  • Expert Tech Support

    Add-on tech support plans available

  • Super Fast Delivery

    Same day shipping on most orders

GAI-Tronics Red Alert Surface-Mount Emergency Phone w/Voice Annuciation & Keypad - 394AL-002

$1,803.70
$1,689.99
(You save $113.71 )

The GAI-Tronics Red Alert Emergency phone with Keypad, model 394AL-002, is designed for surface mounting applications and features Voice Annunciation. This emergency phone is Type 3R weather-resistant and has a safety yellow rugged cast-aluminum enclosure. This phone is also line powered, so it does not require an external power supply making for flexible installation.

Other features of the GAI-Tronics 394AL-002 include two programmable auxiliary outputs for peripheral equipment control, standard or SMART operation, 3-number rollover, a call received "when lit" LED, and auto answer with silent monitoring. This phone also has an operating range between -20 degrees celsius and +60 degrees celsius.

GAI-Tronics Red Alert Surface-Mount Emergency Phone Quick Specs:

  • Connectivity: Analog, RJ-11
  • TMA Compatibility Profile Type: GTC SMART Hands-free
  • Audio Output: 1 kHz tone @ 87 ± 3 dB SPL @ 1 meter with 40 mA loop current
  • Battery Voltage (tip and ring): 24 V dc or 48 V dc
  • Phone Line Requirements: Loop start, central office (CO), or Analog station port (PBX, PABX, or KSU)
  • Minimum Loop Current: 24 mA (35 mA recommended)
  • Signaling: DTMF 100 ms tone
  • Keypad: 12 Button, Braille
  • Dimensions: 9.5 H x 8.0 W x 4.0 D inches
  • Enclosure: Non-metallic, Safety Yellow
  • Operating: -4F to +140F (-20C to +60C)
  • Relative Humidity: Up to 95%, Non-condensing

GAI-Tronics 394AL-002 Red Alert Emergency Phone Package Contents:

  • GAI-Tronics 394AL-002 Phone

Warranty:
1 Year
