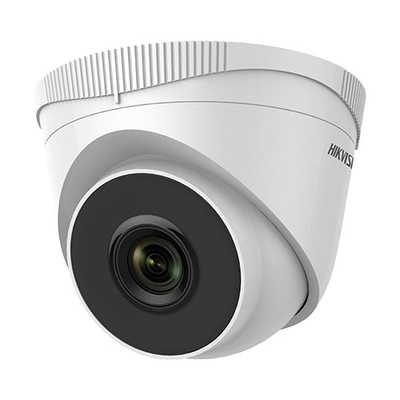

Hikvision ECI-T22F is a compact security camera that gives you network-connected surveillance at an incredible price-point. Designed for outdoor installation, ECI-T22F uses a flat-faced turret design to reduce reflections compared with a dome camera, giving you better video. And what video — 1080p Full HD via a professional CMOS sensor and choice of fixed lens. For nighttime recording without light, the camera has built-in EXIR 2.0 infrared lights with an extended reach of 100ft.

Hikvision ECI-T22F features Digital WDR technology, which adapts to difficult lighting like strong shadows or headlamps to improve picture quality. It supports alarm triggers to improve protection, including motion detection, video tampering alarm, illegal login, and more. H.265+ video compression makes the video feed ultra-efficient, saving on bandwidth and storage. The camera has a metal body and is rated IP67 against dust and water ingress. ECI-T22F is ONVIF Profile G and Profile S compliant.

Hikvision ECI-T22F comes in three models differentiated by lens. Please select the lens you want above:

• Hikvision ECI-T22F2:
• Lens: fixed 2.8mm, f/2.0
• Field of View:
• Horizontal: 114°
• Vertical: 62°
• Diagonal: 135°
• Hikvision ECI-T22F4:
• Lens: fixed 4mm, f/2.0
• Field of View:
• Horizontal: 86°
• Vertical: 46°
• Diagonal: 102°
• Hikvision ECI-T22F6:
• Lens: fixed 6mm, f/2.0
• Field of View:
• Horizontal: 54°
• Vertical: 30°
• Diagonal: 62°

Hikvision ECI-T22F Quick Specs:

• Connectivity Type: IP
• Ethernet Ports: 1x 10/100
• PoE: 802.3af Class 3
• Sensor: 1/2.8" progressive scan CMOS
• Resolution: up to 1080p @ 30fps
• Video Codecs: H.265+, H.265, H.264+, H.264, MJPEG
• Angle Adjustment:
• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°
• Minimum Illumination:
• Color: 0.028 lux
• IR: 0 lux
• Infrared Range: up to 100ft (30m)
• ONVIF: Profile G, Profile S
• Operating Temperature: -22°F to +122°F
• Durability Ratings: IP67

Hikvision ECI-T22F Network Security Camera Package Contents:

• Hikvision ECI-T22F Camera
• Quick Start Guide

Hikvision ECI-T22F Documentation:

• Hikvision ECI-T22F Data Sheet
• Hikvision ECI-T22F Quick Start Guide
