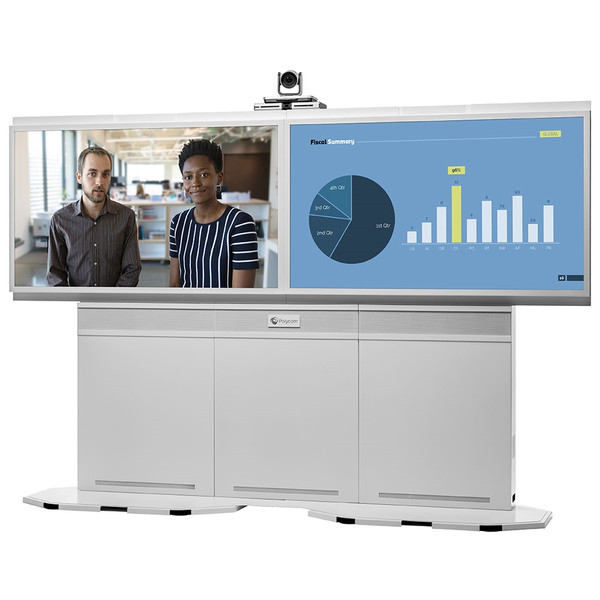

Two 55" 1080p Full HD displays are mounted on the Polycom RealPresence Medialign 255. Use the displays for video conferencing, content sharing and remote collaboration, powered by the Polycom Group 500 codec. An EagleEye IV camera and EagleEye Producer are set up on top of the displays, giving remote participants a lifelike view of your meeting room. The camera features a 4k image sensor and motorized PTZ, and the Producer can automatically control the PTZ and send room usage data to an external application.
Also included with the Polycom RealPresence Medialign 255 is a touch-enabled remote control, microphone array, loudspeakers and a slim stand. The whole assembly is both attractive and easy to use. Set up the solution at the front of your meeting room. The slim design matches your meeting roomâ ultramodern decor.
Polycom RealPresence Medialign 255 Quick Specs:
- Connectivity Type: IP/VoIP
- Networking Protocols: SIP, H.323
- Polycom RealPresence Group 500 codec:
- Ethernet Port: 1x 10/100/1000 Gigabit
- PoE: no
- Additional Ports:
- 1x HDCI video in
- 1x HDMI video in
- 1x VGA video in
- 2x HDMI 1.3 video out
- 1x microphone array input port
- 1x HDCI audio in from camera
- 1x HDMI audio in
- 1x 3.5 mm stereo audio in
- 1x HDMI audio out
- 1x 3.5 mm stereo audio out
- 2x USB 2.0
- 1x RS-232 8-pin mini-DIN
- Video Resolution:
- People: up to 1080p Full HD at 60 fps
- Content Input: up to 1080p Full HD
- Content Output: up to WUXGA (1920 x 1200)
- Video Codecs: H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
- Audio Codecs: AAC-LD (TIP calls), G.711, G.722, G.722.1, G.722.1C, G.728, G.729A, Siren 14, Siren 22
- Audio Enhancements: Polycom Constant Clarity: NoiseBlock, Acoustic Fence, StereoSurround, AGC, BNS, AEC
- Dual Displays:
- Screen Size: 55" diagonal
- Display Type: edge-lit LED
- Resolution: up to 1080p Full HD
- Ports: HDMI, DVI-D, VGA
- Polycom EagleEye IV:
- Sensor: 1/2.33" CMOS
- Zoom: 4x optical (black), 10x/12x optical/digital (silver)
- Pan-Tilt: ±100° pan, +20° to -30° tilt
- Field of View: 65° H, 39° V
- Resolution: up to 1080p Full HD
- Minimum Illumination: 50 lux
- Port: Mini-HDCI
- Polycom EagleEye Producer:
- Camera Characteristics: 80° H field of view, manual tilt
- Ports: HDCI out to Group 500, HDCI to mini-HDCI, USB
- PoE: no
- Polycom RealPresence Touch:
- Display: 10.1" capacitive touchscreen
- Resolution: WXGA (1280 x 800)
- Ports: Micro-B USB 2.0, Type A USB 2.0
- PoE: IEEE 802.3af Class 1 compliant
- Dimensions: 60" H x 101.1" W x 28.1" D
- Weight: 198.4 lbs, 90 kg
Polycom RealPresence Medialign 255 Video Conferencing System Package Contents:
- Polycom RealPresence Medialign 255 stand
- 2x 55" LED displays
- Polycom RealPresence Group 500 codec
- Polycom EagleEye IV camera
- Polycom EagleEye Producer
- Polycom RealPresence Touch
- Microphone array
- Speakers
- Cables
- 1080p license
- Skype for Business license
- AC power supply
