Valcom V-9972 Universal Paging Interface

Valcom V-9972 is a universal paging interface that connects your paging system via a SIP (VoIP), analog station (FXS), or PABX loop start trunk port (FXO) connection — you get to select. For IP paging systems, it works with either on-premise IP PBX systems or cloud-based services. V-9972 works with Valcom multi-zone page control units for zone control and hands-free page units for two-way talkback paging.

Use Valcom V-9972 to enable features like background music and tones with volume control. Record, store, and play back multiple messages like announcements. Using a universal interface future-proofs your infrastructure so you can continue to use legacy equipment while being able to take advantage of new innovations.

Valcom V-9972 Quick Specs:

• Communications Protocol: SIP

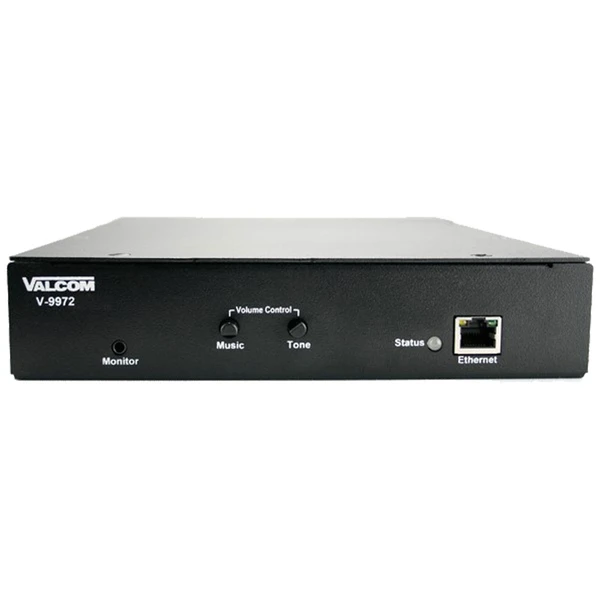

• Front Panel Connectors:
• Monitor: 3.5mm headset jack
• Ethernet: 10/100
• Front Panel Connectors:
• Power: barrel connector or 2 terminals
• Function Settings: 6-position DIP switch
• Music In: stereo RCA jacks or 2 terminals
• One-Way Page Out: 2 terminals
• Relay: 2 terminals
• All Call Audio: 2 terminals
• Talkback Page Out: 2 terminals
• All Call Control: 2 terminals
• Page Inputs: 1 FXS port, 1 FXO port

Valcom V-9972 Universal Paging Interface Package Contents:

• Valcom V-9972 Interface

Valcom V-9972 Documentation:

• Valcom V-9972 Datasheet
• Valcom V-9972 Configration Guide

• Valcom V-9972 Installation Manual
